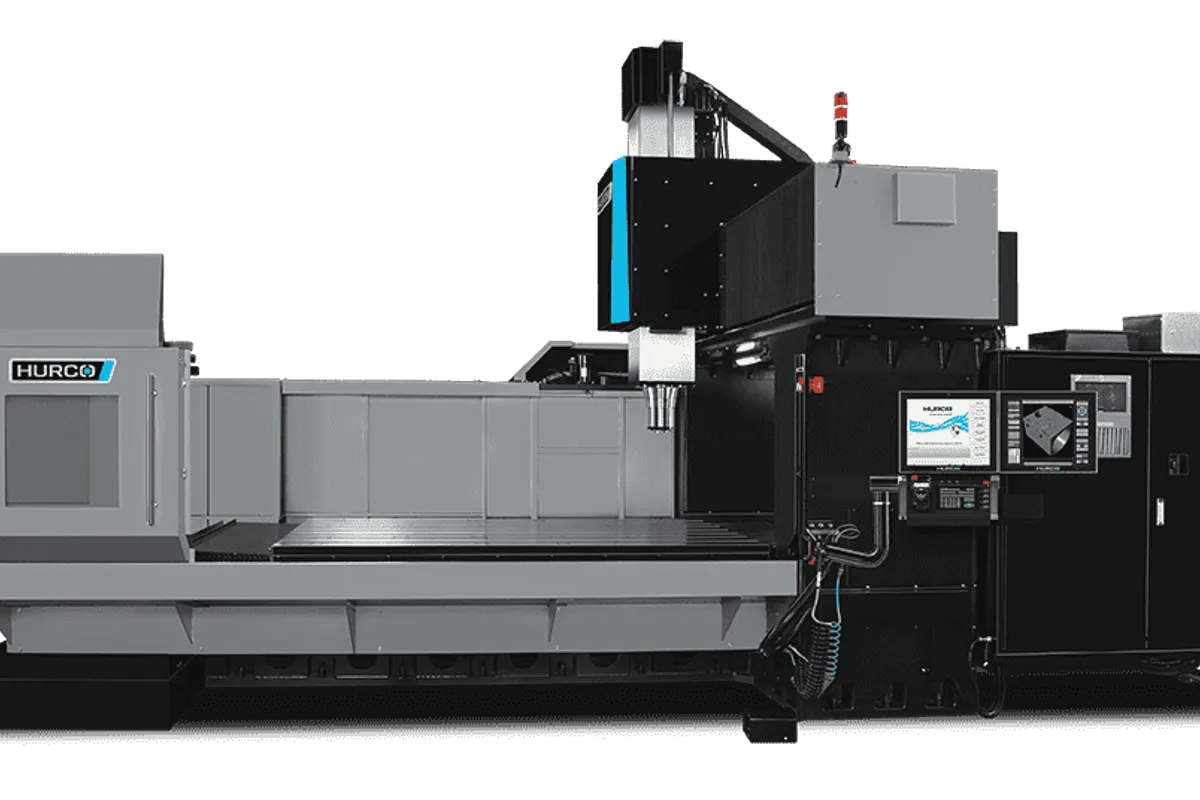

Hurco DCX32i

$400,000 - $550,000 (new) | $200,000 - $350,000 (used) Updated 2025-03-15

Key Specifications

X Travel

3,200 mm (126 in)

Y Travel

2,100 mm (82.7 in)

Z Travel

920 mm (36.2 in)

Spindle Taper

CAT 50

Tool Capacity

Table Size

118.1 x 66.9 in (3,000 x 1,700 mm)

Overview

The Hurco DCX32i steps up to the 3-meter class in Hurco's double-column bridge VMC lineup, and for shops that have outgrown the 2.2-meter DCX22i, this machine opens up a significantly larger work envelope without sacrificing the rigidity that makes double-column machines worth the investment. With 3,200 mm (126 in) of X-travel, 2,100 mm (82.7 in) in Y, and 920 mm (36.2 in) in Z, the DCX32i handles workpieces that simply won't fit on smaller platforms.

The table is massive: 3,400 x 2,000 mm (133.9 x 78.7 in) with a load capacity of 10,000 kg (22,046 lb). That's enough for large mold bases, aerospace structural components, energy sector castings, and heavy fabrication work. The double-column bridge construction ensures that the spindle maintains its relationship to the work surface across the entire 3.2-meter travel range — something that's physically impossible with a C-frame design at this size.

The CAT 50 spindle delivers 30 kW (40 HP) continuous power at up to 6,000 RPM. On a machine this size, the spindle torque matters more than speed for most applications. When you're face milling a 3-meter steel plate or roughing a large casting, the ability to maintain consistent cutting force over extended periods is what determines productivity. The 40-tool ATC keeps operations flowing, though shops running complex programs with many tools may want to plan tool management carefully.

Box-way guideways on all three axes are the right design choice for a machine of this mass and intended workload. The ways provide superior damping characteristics during interrupted cuts and heavy roughing, and their load-carrying capacity is essential given the machine's 10-ton table rating. Rapid traverse rates of 12 m/min (472 IPM) in X/Y are typical for box-way machines in this class — you trade positioning speed for cutting performance.

The WinMax control system is particularly valuable on a machine this size. Programming a 3-meter part at the control using conversational input saves significant time when you're doing one-off or low-volume work that doesn't justify a full CAM programming cycle. For production work, WinMax accepts standard G-code without modification, so your existing CAM workflow transfers directly.

New DCX32i machines price in the $400,000-$550,000 range, reflecting the substantial increase in machine size and material. Installation requires serious planning — a reinforced foundation, adequate rigging capacity, and sufficient floor space. Used units from 2014-2022 trade in the $200,000-$350,000 range, and they tend to hold value well because demand for large double-column machines consistently outpaces supply in the used market.

Full Specifications

Parameter	Value
X-Axis Travel	3,200 mm (126 in)
Y-Axis Travel	2,100 mm (82.7 in)
Z-Axis Travel	920 mm (36.2 in)
Table Size	118.1 x 66.9 in (3,000 x 1,700 mm)
Max Table Load	10,000 kg (22,046 lb)
Spindle Speed	6,000 RPM
Spindle Taper	CAT 50
Spindle Motor Power	30 kW (40 HP) continuous
Rapid Traverse Xy	12 m/min (472 IPM)
Rapid Traverse Z	10 m/min (394 IPM)
Tool Capacity	40
Guideway Type	Box ways (all axes)
CNC Control	Hurco WinMax
Machine Weight	76,870 lbs (35,500 kg)
Travels Capacityx Y Z Axis Travel	126 x 82.7 x 36.2 in (3,200 x 2,100 x 920 mm)
Spindle Nose To Table Min Max	6.46 / 42.68 in (164 / 1084 mm)
Max Weight On Table	24,200 lbs (11,000 kg)
T Slot Size	7 x 0.87 in (7 x 22 mm)
Distance B W Columns	83.9 in (2,130 mm)
Spindlemax Spindle Speed	6,000 rpm
Peak Spindle Motor	64 hp @ 1,180 rpm (48 kW @ 1,180 rpm)
Spindle Torque	338 ft lbs @ 1,000 rpm (458 Nm @ 1,000 rpm)
Tool Changertool Type	CAT, 50 (CAT/BT 50)
Max Tool Diameter	4.9 in (125 mm)
Max Tool Length	11.8 in (300 mm)
Max Tool Weight	33 lb. (15 kg)
Feedratesrapid Traverse Xyz Axis	591, 591, 394 in/min (15, 15, 10 m/min)
Max Programmable Feedrate	394 in/min (10 m/min)
Sizemax Operating Floor Space	392.1 x 250.4 in (9,960 x 5,935 mm)
Machine Height	186 in (4,724 mm)
Electricalpower Rating Full Load Kva	80 KVA

Specifications sourced from hurco.com — verified 2026-03-28

Strengths & Limitations

Strengths

3,200 mm X-travel with full double-column bridge rigidity opens up large mold, die, and structural component work that C-frame VMCs cannot physically accommodate
10,000 kg table capacity handles extremely heavy workpieces — large castings, mold bases, and fabricated steel structures — without requiring secondary support
WinMax conversational control saves hours of CAM programming time on large one-off parts, a major advantage for job shops and toolrooms
Box-way construction on all axes provides the load capacity and damping required for heavy cutting on a machine of this size
Double-column bridge design eliminates column deflection and overhang effects that degrade accuracy on long-travel C-frame machines
Strong used market value — large double-column machines hold their value better than most VMC categories due to consistent demand

Limitations

6,000 RPM spindle speed limits performance in aluminum and non-ferrous finishing work where higher speeds are preferred
12 m/min rapid traverse across 3.2 meters of X-travel means substantial non-cutting time on positioning moves — a full-stroke move takes 16 seconds
40-tool magazine may prove limiting for complex mold work on a machine designed to handle large, multi-feature parts
Massive 32,000 kg machine weight requires a substantial reinforced foundation and significant rigging for installation
$400,000+ entry price and substantial installation costs put this machine beyond the reach of many smaller shops

Best For

Large mold and die shops machining mold bases and die plates exceeding 2 meters in length that cannot fit on standard VMCs Aerospace manufacturers producing large structural components, wing ribs, and fuselage panels requiring long-travel precision machining Energy sector manufacturers machining large turbine components, valve bodies, and pump housings in steel and cast iron Heavy equipment manufacturers needing to machine frames, beds, and structural weldments in a single setup Job shops specializing in oversize work that want conversational programming capability for one-off and low-volume large parts Defense contractors machining large armor plates, hull components, and structural elements requiring rigid, accurate processing

Frequently Asked Questions

01 What does a Hurco DCX32i cost new and used?

New DCX32i machines typically price between $400,000 and $550,000 depending on spindle configuration, probing packages, and additional options. Budget an additional $15,000-$30,000 for foundation work and $10,000-$20,000 for rigging and installation. Used DCX32i units from 2014-2022 trade in the $200,000-$350,000 range and tend to sell quickly when they appear on the market.

02 How does the DCX32i compare to the DCX22i?

The DCX32i adds a full meter of X-travel (3,200 vs. 2,200 mm), 400 mm more Y-travel (2,100 vs. 1,700 mm), and 170 mm more Z-travel (920 vs. 750 mm). Table capacity increases from 6,000 to 10,000 kg. Machine weight jumps from 22,000 to 32,000 kg. The spindle and control are the same. Choose the DCX32i when your work regularly exceeds the DCX22i's 2.4-meter table length.

03 What floor space does the DCX32i require?

Plan for approximately 8 x 6 meters of floor space including the chip conveyor and operator access area. The machine itself requires a reinforced concrete foundation typically 400-500 mm thick with rebar, isolated from the surrounding floor. Ceiling height must accommodate the gantry plus crane access for installation and maintenance. Hurco provides detailed foundation drawings with each machine order.

04 Can the DCX32i be automated?

While Hurco doesn't offer a standard pallet changer for the DCX32i, the large table can accommodate custom fixtures, tombstones, or modular fixturing systems that enable efficient multi-part setups. Some shops use the large table to fixture multiple workpieces and run extended unattended cycles. Probing systems help automate part location and in-process verification on these extended setups.

05 What maintenance does a double-column machine this size require?

The box-way construction requires regular lubrication system maintenance — check oil levels weekly and replace filters quarterly. Spindle bearing temperature should be monitored, and the thermal compensation system requires periodic calibration. Way wipers need regular inspection given the long travel distances. Budget for annual geometric accuracy verification using a laser interferometer. Overall, the DCX32i is a robust machine, but its size means maintenance tasks take longer than on smaller VMCs.
