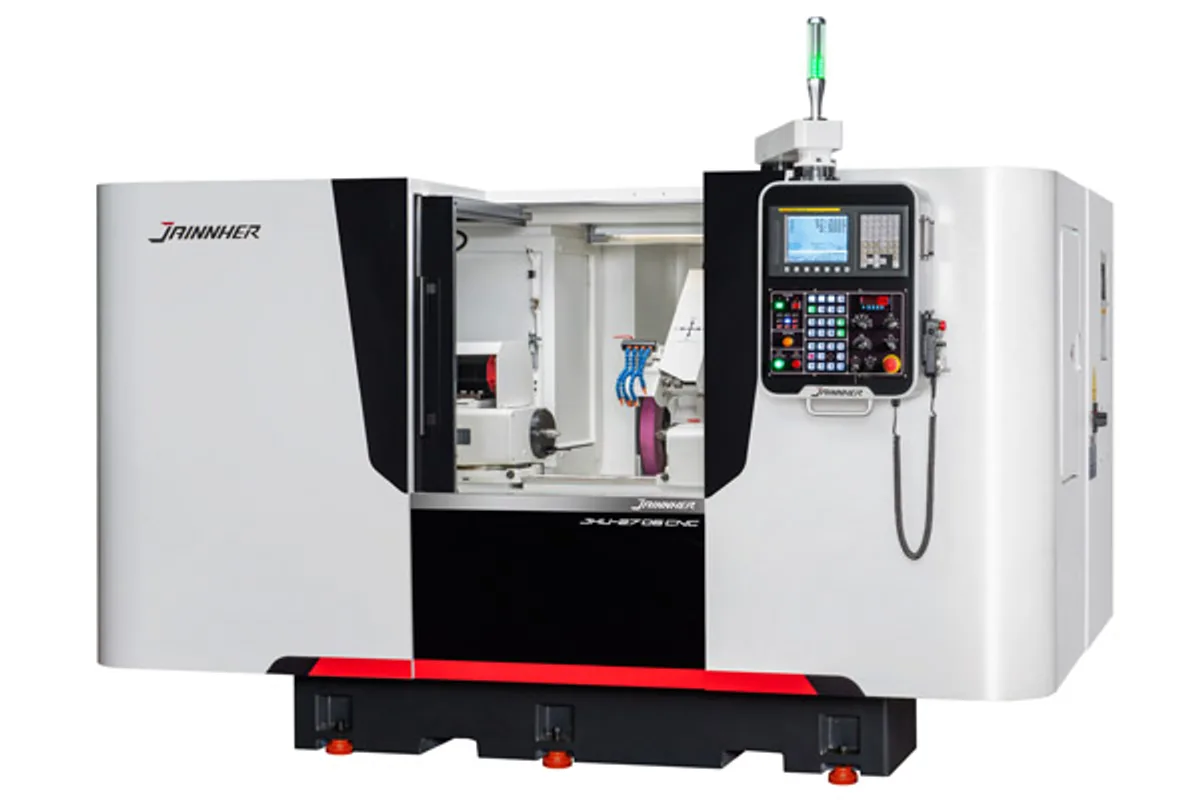

Jainnher JHU-2706CNC
Image: jainnher.com, Jainnher
Key Specifications
Spindle Power
max work swing
max grinding length
max grinding diameter
max workpiece weight
work spindle speed 60hz
How much does the Jainnher JHU-2706CNC cost?
Price estimate
We do not have a price for the Jainnher JHU-2706CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Jainnher JHU-2706CNC is the smallest of Jainnher's CNC universal cylindrical grinders, with a 270 mm (10.6 in) swing, a 600 mm (23.6 in) grinding length and a 70 kg (154 lb) limit between centers. Maximum grinding diameter is 250 mm (9.8 in).
Universal is the word that matters. Where a plunge grinder does one thing quickly, this machine is laid out to do many things in one setup. The work head swivels through 120°, 90° counter-clockwise and 30° clockwise, its spindle can be locked or run in either direction, and an internal grinding attachment is on the options list. Jainnher's own sketches show taper grinding between centers, chuck work, straight plunge grinding, internal grinding and internal taper grinding on the same machine.
The short bed gives this model the widest table swivel of the family, 11° counter-clockwise and 6° clockwise, which is useful for shallow tapers ground by traversing. Longer beds swivel less. The JHU-2720CNC manages 5° and 3°.
Both axes are servo driven with a 0.001 mm setting unit, and the wheel head feeds at up to 6 m/min (236 ipm) over 175 mm (6.9 in) of travel. The wheel is listed as 405 x (25 ~ 50) x 152.4, with a 455 size optional, and the standard motor is 3.75 kW, 5 HP. On the CNC models an X-axis linear scale, a fully enclosed splash guard with oil mist collector and a touch probe gauge are standard. Gross weight is about 4,850 kg (10,692 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Max Work Swing | 270 mm (10.6 in) |
| Max Grinding Length | 600 mm (23.6 in) |
| Max Grinding Diameter | 250 mm (9.8 in) |
| Max Workpiece Weight | 70 kg (154 lb) |
| Work Spindle Speed 60hz | 11 to 500 rpm at 60 Hz (variable speed) |
| Work Spindle Speed 50hz | 9 to 420 rpm at 50 Hz (variable speed) |
| Work Head Swivel Angle | 120° (CCW: 90°; CW: 30°) |
| Center Taper | MT.4 |
| Work Spindle Rotation | Setting, Normal and reverse rotation |
| Table Swivel Angle Ccw Cw | 11° / 6° |
| Table Min Setting Unit | 0.001 mm |
| Wheel Size | 405 x (25 ~ 50) x 152.4; 455 x 50 x 152.4 (opt.) (D x W x B) |
| Max Peripheral Speed | 2,000 m/min |
| Wheel Head Max Feed Rate | 6 m/min (236 ipm) |
| Wheel Head Travel | 175 mm (6.9 in) |
| Wheel Head Min Setting Unit | 0.001 mm |
| Tailstock Center Travel | 30 mm (1.2 in) |
| Tailstock Center | MT4 |
| Spindle Motor Power | 3.75 kW, 5 HP, 4P; 7.5 HP (5.6 kW) (opt.) |
| Worktable Motor | 1.8 kW (2.4 hp) |
| Hydraulic Motor | 0.75 kW (1 HP), 4P |
| Servo Motor X | 1.2 kW (1.6 hp) |
| Servo Motor Y | 1.8 kW (2.4 hp) |
| Hydraulic Tank | 60 L |
| Lubrication Tank | 30 L |
| Coolant Tank | 100 L |
| Gross Weight | 4,850 kg (10,692 lb) (approx.) |
| Machine Dimensions | 3,740 x 2,160 x 2,310 mm (147.2 x 85.0 x 90.9 in) (L x W x H) (approx.) |
Specifications sourced from jainnher.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Work head swivels 120° (90° counter-clockwise, 30° clockwise) for faces, tapers and chuck work
- Widest table swivel of the JHU-CNC range: 11° counter-clockwise and 6° clockwise
- X-axis linear scale, full enclosure and touch probe gauge are standard on the CNC models
- 0.001 mm setting unit on the table and the wheel head
- Shortest machine of the range at about 3,740 mm (147.2 in) long
Limitations
- Workpiece weight between centers is limited to 70 kg (154 lb)
- Grinding length is 600 mm (23.6 in); the JHU-2710CNC offers 1,000 mm (39.4 in)
- Internal grinding attachment and 3-jaw chuck are optional accessories
- Jainnher's page does not name the CNC control
Best For
Frequently Asked Questions
01
The work head swivels 120°, with 90° counter-clockwise and 30° clockwise, and its spindle can be fixed or run in normal and reverse rotation. Jainnher says this makes it suited to flexible internal and external cylindrical grinding. An internal attachment and a 3-jaw chuck are optional accessories.
02
Maximum work swing is 270 mm (10.6 in), maximum grinding diameter 250 mm (9.8 in) and maximum grinding length 600 mm (23.6 in). The maximum job weight between centers is 70 kg (154 lb). Centers are MT.4 in the work head and MT4 in the tailstock.
03
11° counter-clockwise and 6° clockwise on this model. The figure falls as the bed gets longer in Jainnher's table, so the short machine is the one to pick if shallow tapers are ground by swivelling the table.
04
Tools and tool box, a grinding wheel with flange, a wheel dresser, and a water pump and tank. Jainnher marks three items as only for the CNC models: the X-axis linear scale, the fully enclosed splash guard with oil mist collector, and the touch probe gauge.
Videos

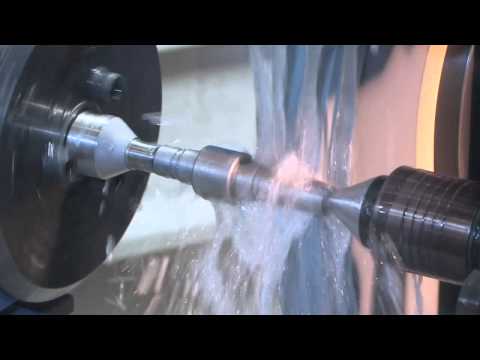

鍵和機械JAINNHER MACHINE
