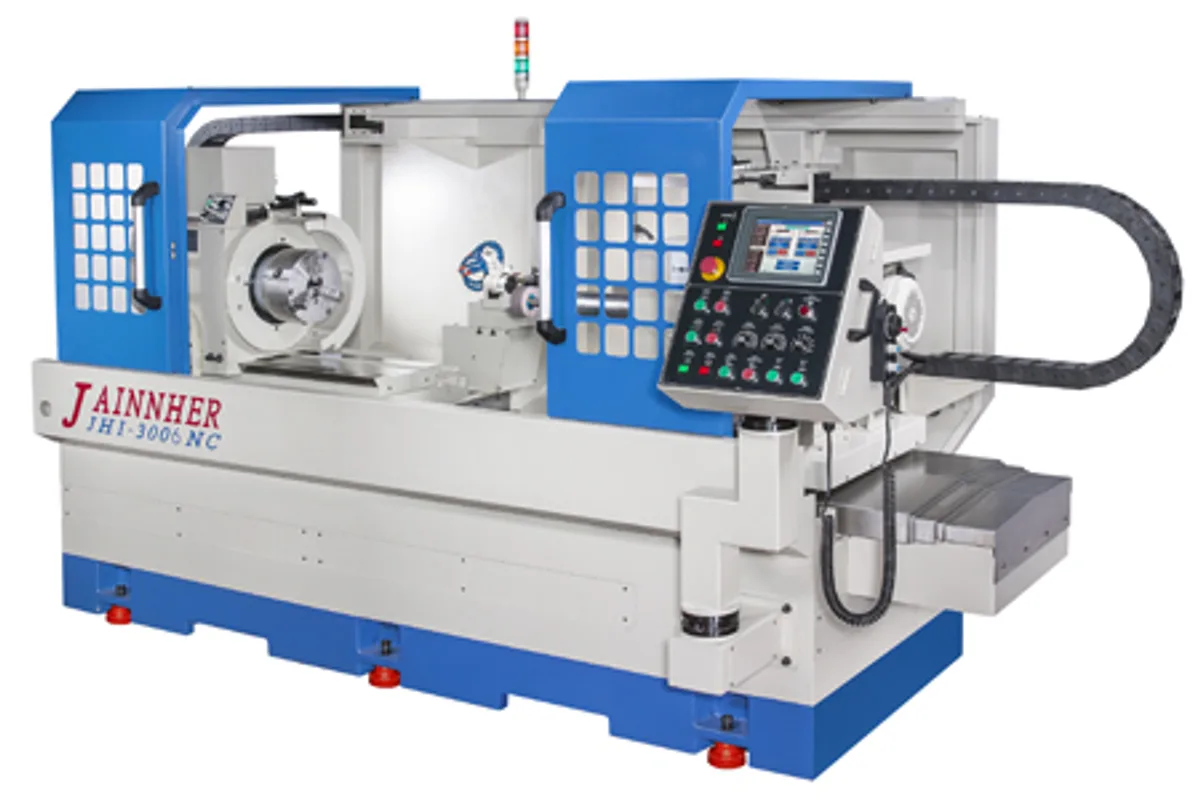

Jainnher JHI-3006NC/CNC
Image: jainnher.com, Jainnher
Key Specifications
Spindle Power
id grinding range
max grinding depth
max holding length
swing over bed
swing in chuck guard
How much does the Jainnher JHI-3006NC/CNC cost?
Price estimate
We do not have a price for the Jainnher JHI-3006NC/CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Jainnher JHI-3006NC/CNC is the mid-size internal grinder in Jainnher's range, for bores from 20 to 300 mm (0.8 to 11.8 in) ground up to 300 mm (11.8 in) deep in parts up to 600 mm (23.6 in) long. The double suffix is deliberate. Jainnher sells one machine with two controls and prints a single specification column for both.
The drive rows show the split. As an NC machine it has a 3.5 kW work head servo, a 1 kW X servo and a 2 kW Z servo, run from Jainnher's own conversational interface, which the maker describes as easy to learn and which offers coarse grinding, fine grinding, spark-out and dressing with compensation. As a CNC machine the motors are Fanuc: 3.5 kW on the work head, 1.2 kW on X and 1.8 kW on Z. The page names a FANUC (Oi-Mate TC) control with an 8.4 in screen for the CNC version.
Either way the mechanics are the same. X stroke is 200 mm (7.9 in) with a 5 m/min (197 ipm) rapid, Z stroke 600 mm (23.6 in) with 8 m/min (315 ipm), and both resolve 0.001 mm. The work head has a cylindrical type spindle turning at 10 to 1,000 rpm and swivels from -3° to +15°. A 5 HP (3.7 kW) wheel spindle motor is standard and 7.5 HP (5.6 kW) is the option for larger wheels.
Net weight is 5,000 kg (11,023 lb). Jainnher gives the size only as a packing case, 3,900 x 2,200 x 1,800 mm (153.5 x 86.6 x 70.9 in), so ask for a floor plan.
Full Specifications
| Parameter | Value |
|---|---|
| ID Grinding Range | 20 to 300 mm (0.8 to 11.8 in) |
| Max Grinding Depth | 300 mm (11.8 in) |
| Max Holding Length | 600 mm (23.6 in) |
| Swing Over Bed | 480 mm (18.9 in) |
| Swing in Chuck Guard | 350 mm (13.8 in) |
| X Axis Rapid Traverse | 5 m/min (197 ipm) |
| X Axis Travel | 200 mm (7.9 in) |
| X Axis Min Setting Unit | 0.001 mm |
| Z Axis Rapid Traverse | 8 m/min (315 ipm) |
| Z Axis Travel | 600 mm (23.6 in) |
| Z Axis Min Setting Unit | 0.001 mm |
| Work Spindle Speed | 10 to 1,000 rpm |
| Work Spindle Nose | Cylindrical type |
| Work Head Swivel Angle | -3°+15°(f) |
| Spindle Motor Power | Standard 5 HP (3.7 kW), 2P; optional 7.5 HP (5.6 kW), 2P |
| Work Head Motor | Servo 3.5 kW (for NC); Fanuc servo 3.5 kW (for CNC) |
| X Axis Motor | Servo 1 kW (for NC); Fanuc servo 1.2 kW (for CNC) |
| Z Axis Motor | Servo 2 kW (for NC); Fanuc servo 1.8 kW (for CNC) |
| Coolant Motor | 1/4 HP, 2P |
| Hydraulic Lubrication Motor | 1/4 HP, 4P |
| Hydraulic System Motor | 1 HP, 4P |
| Packing Case Size | 3,900 x 2,200 x 1,800 mm (153.5 x 86.6 x 70.9 in) (L x W x H) |
| Machine Weight | 5,000 kg (11,023 lb) |
| Gross Weight | 5,500 kg (12,125 lb) |
Specifications sourced from jainnher.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Bore range of 20 to 300 mm (0.8 to 11.8 in) with a grinding depth of 300 mm (11.8 in)
- Offered with Jainnher's conversational NC or with Fanuc servo drives as a CNC machine
- Work head swivels from -3° to +15° for tapered bores
- Wheel spindle motor can be upgraded from 5 HP (3.7 kW) to 7.5 HP (5.6 kW)
- Table spindle, X axis and Z axis are all servo driven in both versions
Limitations
- X-axis rapid is 5 m/min (197 ipm), slower than the 8 m/min (315 ipm) of the Z axis
- Holding length is 600 mm (23.6 in); the JHI-3012NC/CNC takes 1,200 mm (47.2 in)
- Only a packing case size is published, not the installed footprint
- The table does not say which splash guard is fitted, and the end face grinding device is optional
Best For
Frequently Asked Questions
01
The drives and the control. Jainnher's table lists a 3.5 kW work head servo, a 1 kW X servo and a 2 kW Z servo for NC, and Fanuc servos of 3.5 kW, 1.2 kW and 1.8 kW for CNC. The NC machine uses Jainnher's self-developed conversational interface; the page names a FANUC (Oi-Mate TC) control for the CNC machine. Capacities and strokes are printed once for both.
02
Bores from 20 to 300 mm (0.8 to 11.8 in), up to 300 mm (11.8 in) deep, in workpieces up to 600 mm (23.6 in) long. Swing over the bed is 480 mm (18.9 in) and swing inside the chuck guard is 350 mm (13.8 in).
03
The grinding wheel spindle motor is 5 HP (3.7 kW), 2P, as standard, with 7.5 HP (5.6 kW), 2P, as an option. The grinding wheel spindle itself is listed among both the standard and the optional accessories, so the spindle speed depends on the unit chosen for the bore size.
04
The JHI-3012NC/CNC is the long-bed version: it holds parts up to 1,200 mm (47.2 in) long, has 800 mm (31.5 in) of Z stroke and weighs 6,300 kg (13,889 lb). The JHI-3006NC/CNC holds 600 mm (23.6 in), has 600 mm (23.6 in) of Z stroke and weighs 5,000 kg (11,023 lb). Bore range and grinding depth are the same.
More from Jainnher
Other CNC Grinding Machines
Mikrosa KRONOS S

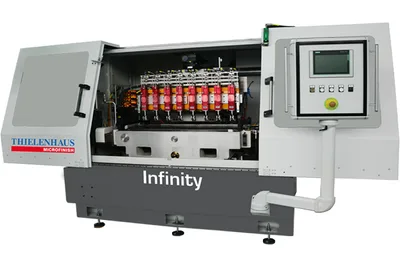

Thielenhaus Infinity 900 – 1100
