Jainnher JHD-3205IU

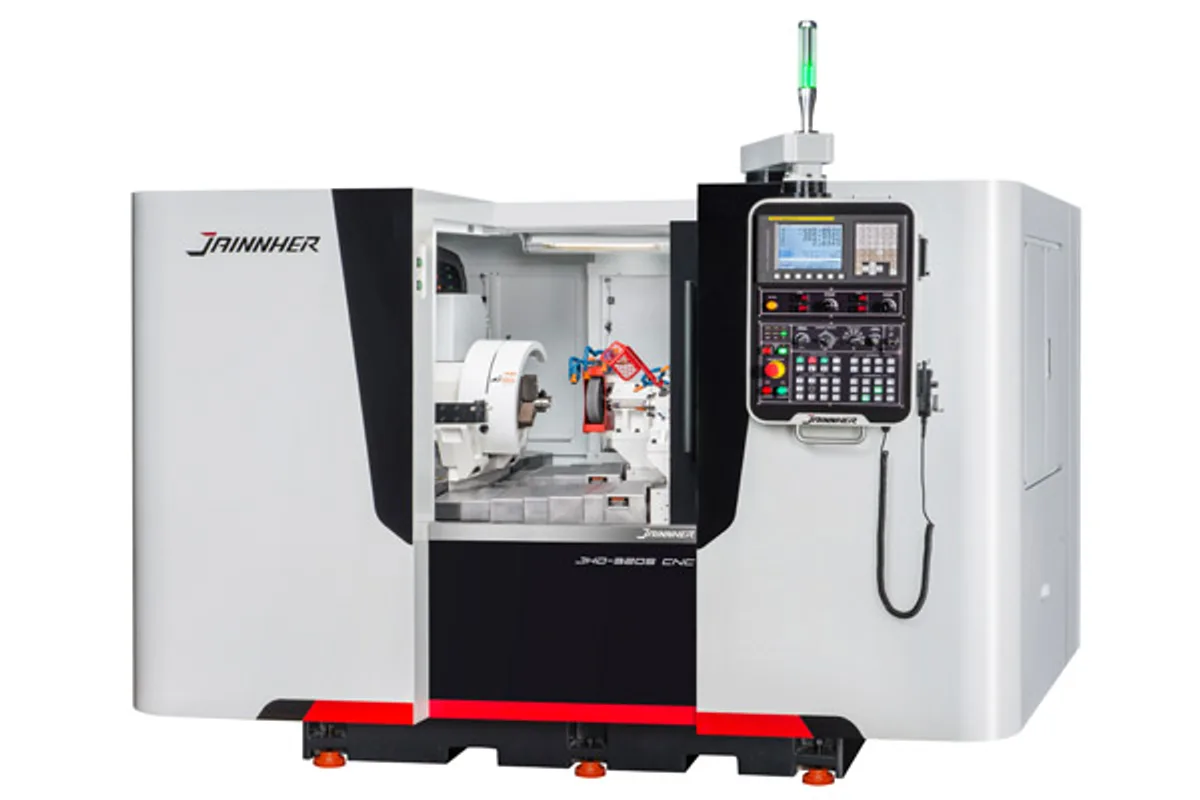

Image: jainnher.com, Jainnher
Key Specifications
grinding type
id grinding capacity
max grinding diameter
max grinding length
max swing
max workpiece weight
How much does the Jainnher JHD-3205IU cost?
Price estimate
We do not have a price for the Jainnher JHD-3205IU that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Jainnher JHD-3205IU is the JHD-3205 double spindle grinder set up for serious outside diameter work. Its external wheel is 405 x 50 mm (15.9 x 2.0 in), running at 1,780 rpm. The JHD-3205IO, on the same base, has a 205 x 25 mm (8.1 x 1.0 in) wheel at 3,100 rpm.
A wheel twice the diameter and twice the width removes stock faster and holds its form longer between dressings, and Jainnher backs it with a 4-pole 3.75 kW (5 HP) motor, with 5.5 kW (7.5 HP) optional. The cost is reach. Maximum grinding length drops to 100 mm (3.9 in), half that of the IO version, because the big wheel takes up room in front of the chuck. Maximum grinding diameter is unchanged at 320 mm (12.5 in).
The internal side is the same as on its siblings: bores from Ø 6 to Ø 200, up to 150 mm deep, with a 3.75 kW (5 HP) spindle motor on the Z axis and the wheel chosen to suit. So is the rest of the machine, with an 8 in chuck, 130 kg (287 lb) of job weight and 500 mm (19.6 in) of X and Y stroke.
Choose between the two external-and-internal versions by looking at the part. A short, large-diameter seat with a bore behind it, such as a bearing journal on a hub or a flange register, is this machine's work. A longer stepped O.D. is not. Weight is 5,100 kg (11,243 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Grinding Type | External & Internal |
| ID Grinding Capacity | Ø 6-Ø 200 (0.25"-8") x 150 mm |
| Max Grinding Diameter | 320 mm (12.5 in) |
| Max Grinding Length | 100 mm (3.9 in) |
| Max Swing | 500 mm (20 in) |
| Max Workpiece Weight | 130 kg (287 lb) |
| Wheel Head Type | OD, ID |
| Chuck Size | 8 in |
| Work Spindle Speed | 20-1000 rpm/min (variable speed) |
| X Axis Travel | 500 mm (19.6 in) |
| Work Head Swing Angle | +15° ~ -15° (Manual) |
| X Axis Rapid Traverse | 10 m/min (32.8 ft/min) |
| X Axis Min Setting Unit | 0.001 mm (0.00004 in) |
| OD Wheel Size | 405 x 50 mm (15.9 x 2.0 in) |
| OD Wheel Speed | 1,780 rpm |
| Y Axis Travel | 500 mm (19.6 in) |
| Y Axis Rapid Traverse | 10 m/min (32.8 ft/min) |
| Y Axis Min Setting Unit | 0.001 mm (0.00004 in) |
| Z Axis Travel | 500 mm (20 in) |
| Z Axis Rapid Traverse | 10 m/min (32.8 ft/min) |
| Z Axis Min Setting Unit | 0.001 mm (0.00004 in) |
| X Axis Motor | FANUC β12, 1.8 kW |
| Work Head Motor | FANUC aiF 22, 3.5 kW |
| Y Axis Motor | FANUC β12, 1.8 kW |
| Y Axis Spindle Motor | 3.75 kW (5 HP), 4P; 5.5 kW (7.5 HP), 4P optional |
| Z Axis Motor | FANUC β12, 1.8 kW |
| Z Axis Spindle Motor | 3.75 kW (5 HP), 2P |
| Machine Weight | 5,100 kg (11,243 lb) |
| Gross Weight | 5,500 kg (12,125 lb) |
| Machine Dimensions | 3,100 x 2,150 x 2,270 mm (122.0 x 84.6 x 89.4 in) (L x W x H) |
Specifications sourced from jainnher.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 405 x 50 mm (15.9 x 2.0 in) O.D. wheel, against 205 x 25 mm (8.1 x 1.0 in) on the JHD-3205IO
- O.D. spindle motor can be raised from 3.75 kW (5 HP) to an optional 5.5 kW (7.5 HP)
- Grinds O.D. up to 320 mm (12.5 in) and bores from Ø 6 to Ø 200 in one chucking
- 500 mm (20 in) swing and 130 kg (287 lb) job weight
Limitations
- O.D. grinding length is only 100 mm (3.9 in)
- O.D. wheel speed is 1,780 rpm, lower than the 3,100 rpm of the JHD-3205IO
- I.D. wheel size and speed are left open in the table
- B axis and C axis are options, and the standard work head swing is manual
Best For
Frequently Asked Questions
01
The external wheel and what follows from it. The JHD-3205IU has a 405 x 50 mm (15.9 x 2.0 in) wheel at 1,780 rpm and a 100 mm (3.9 in) grinding length. The JHD-3205IO has a 205 x 25 mm (8.1 x 1.0 in) wheel at 3,100 rpm and a 200 mm (7.9 in) grinding length. Bore capacity, chuck, strokes and weight are the same.
02
A 3.75 kW (5 HP), 4P motor as standard, with a 5.5 kW (7.5 HP), 4P motor as an option. The internal wheel spindle on the Z axis has a 3.75 kW (5 HP), 2P motor.
03
Jainnher gives a maximum grinding length of 100 mm (3.9 in) and a maximum grinding diameter of 320 mm (12.5 in). The O.D. wheel is 50 mm wide, so a seat up to that width can be plunge ground and anything longer is traversed within the 100 mm (3.9 in) limit.
04
An 8 in chuck on a work head with a FANUC aiF 22, 3.5 kW motor, variable from 20 to 1,000 rpm. The head swings +15° to -15° manually. A 3-jaw chuck is a standard accessory; a hydraulic 3-jaw chuck and hydraulic rotary cylinder are optional.
