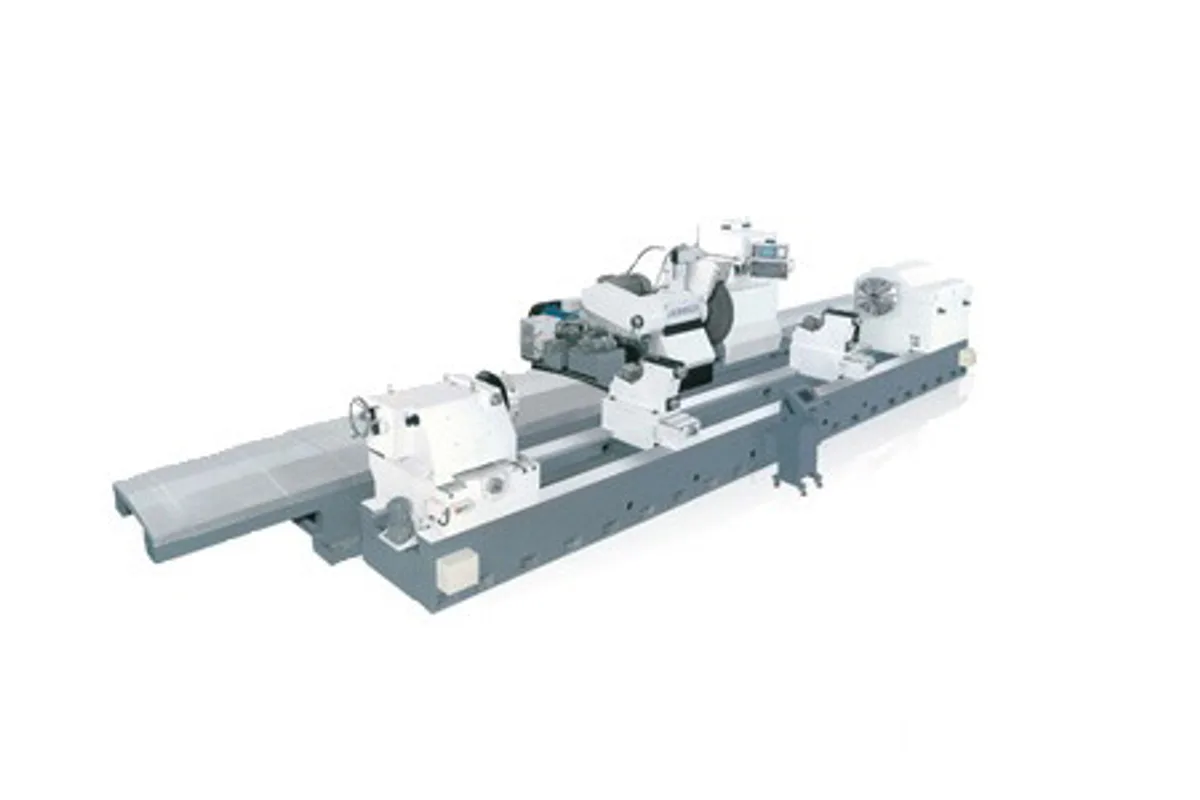

Jainnher H130 CNC Cylindrical Roll Grinder
Image: jainnher.com, Jainnher
Key Specifications
Spindle Power
type
max swing over table
distance between centers
max workpiece weight
max grinding diameter
How much does the Jainnher H130 CNC Cylindrical Roll Grinder cost?
Price estimate
We do not have a price for the Jainnher H130 CNC Cylindrical Roll Grinder that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Jainnher H130 is where Jainnher's CNC cylindrical roll grinding machine range turns heavy. It grinds rolls from 80 to 1,300 mm (3.1 to 51.2 in) in diameter weighing up to 15,000 kg (33,069 lb), with 4, 5, 6, 7 or 8 m (13.1, 16.4, 19.7, 23.0 or 26.2 ft) between centers.
The jump from the L types is not gradual. Weight capacity goes from 6,000 kg (13,228 lb) on the L100 to 15,000 kg (33,069 lb) here, and several parts of the machine change to suit. A roll this heavy is not hung between centers alone. The table gains a row for supports, with a roll neck diameter range of 90 ~ 400 mm and 350-600 mm as an option, so the roll turns on its own necks. Centers become PT#100. The tailstock quill stroke grows to 200 mm (7.9 in) and the tailstock is moved by a motor at 2,000 mm/min instead of by hand.
The headstock runs slower, 6 to 50 rpm, with a work head motor printed as 40 HP (30HPx6P). The grind wheel motor is printed as 50 HP (40HPx6P). Jainnher does not explain the bracketed figures, so settle the installed motor ratings before ordering.
Grinding rates rise as well. Cross feed reaches 3,000 mm/min and the table travels at 25 to 6,000 mm/min. Heat is carried off by a 2,000 L coolant system, several times the capacity of the lighter types. Crown is set by program, with a maximum the table gives simply as by program.
Full Specifications
| Parameter | Value |
|---|---|
| Type | Type H130 |
| Max Swing Over Table | 1,300 mm (51.2 in) |
| Distance Between Centers | 4, 5, 6, 7 or 8 m (13.1, 16.4, 19.7, 23.0 or 26.2 ft) |
| Max Workpiece Weight | 15,000 kg (33,069 lb) |
| Max Grinding Diameter | 1,300 mm (51.2 in) |
| Grinding Diameter Range | 80 to 1,300 mm (3.1 to 51.2 in) |
| Wheel Size | Ø910 x Ø304.8 x 80 mm |
| Wheel Head Lubrication | Hydrostatic & dynamic system |
| Wheel Speed | 300 to 1,200 rpm |
| Max Cross Feed Rate | 3,000 mm/min |
| Cross Feed per Pulse | 0.001 mm |
| Table Traverse Speed | 25 to 6,000 mm/min |
| Table Lubrication | Hydrostatic & dynamic system |
| Roll Neck Diameter Range | 90 ~ 400 mm (350-600 mm option) |
| Work Head Speed | 6 to 50 rpm |
| Center Size | PT#100 |
| Tailstock Moving Speed | 2,000 mm/min |
| Quill Stroke | 200 mm (7.9 in) |
| Spindle Motor Power | 50 HP (40HPx6P) |
| Work Head Motor | 40 HP (30HPx6P) |
| Lubricating System Motor | 2 HP |
| Coolant Tank | 2,000 L |
Specifications sourced from jainnher.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Carries rolls up to 15,000 kg (33,069 lb) and 1,300 mm (51.2 in) in diameter
- Neck supports for 90 ~ 400 mm roll necks, with 350-600 mm optional
- Powered tailstock moving at 2,000 mm/min with a 200 mm (7.9 in) quill stroke
- 2,000 L coolant system, far larger than on the lighter types
- Five bed lengths from 4 to 8 m (13.1 to 26.2 ft)
Limitations
- Motor ratings are printed with unexplained bracketed figures, such as 50 HP (40HPx6P)
- Minimum grinding diameter is 80 mm (3.1 in)
- Wheel width is 80 mm on a Ø910 wheel
- Heavy duty supports, roll caliper and auto balancing system are optional accessories
Best For
Frequently Asked Questions
01
Rolls from 80 to 1,300 mm (3.1 to 51.2 in) in diameter and up to 15,000 kg (33,069 lb). The swing over the table is 1,300 mm (51.2 in), and the distance between centers is 4, 5, 6, 7 or 8 m (13.1, 16.4, 19.7, 23.0 or 26.2 ft).
02
On supports under its necks. Jainnher's table gives a roll neck diameter range of 90 ~ 400 mm, with 350-600 mm as an option, and two supports are in the standard accessory list. Heavy duty supports are offered as an optional accessory.
03
The L100 carries 6,000 kg (13,228 lb) with an 80 mm (3.1 in) quill stroke, MT#6 centers and a 420 L coolant system. The H130 carries 15,000 kg (33,069 lb) with a 200 mm (7.9 in) quill stroke, PT#100 centers, a powered tailstock and a 2,000 L coolant system.
04
Maximum cross feed rate is 3,000 mm/min, with 0.001 mm of cross feed per pulse. Table travel speed is 25 to 6,000 mm/min. The wheel turns at 300 to 1,200 rpm and the work head at 6 to 50 rpm.
