Hwacheon T2

Q: How much does the Hwacheon T2 cost?

The price estimate for the Hwacheon T2 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/hwacheon-t2#price; the request is passed to Hwacheon or an authorised dealer.

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

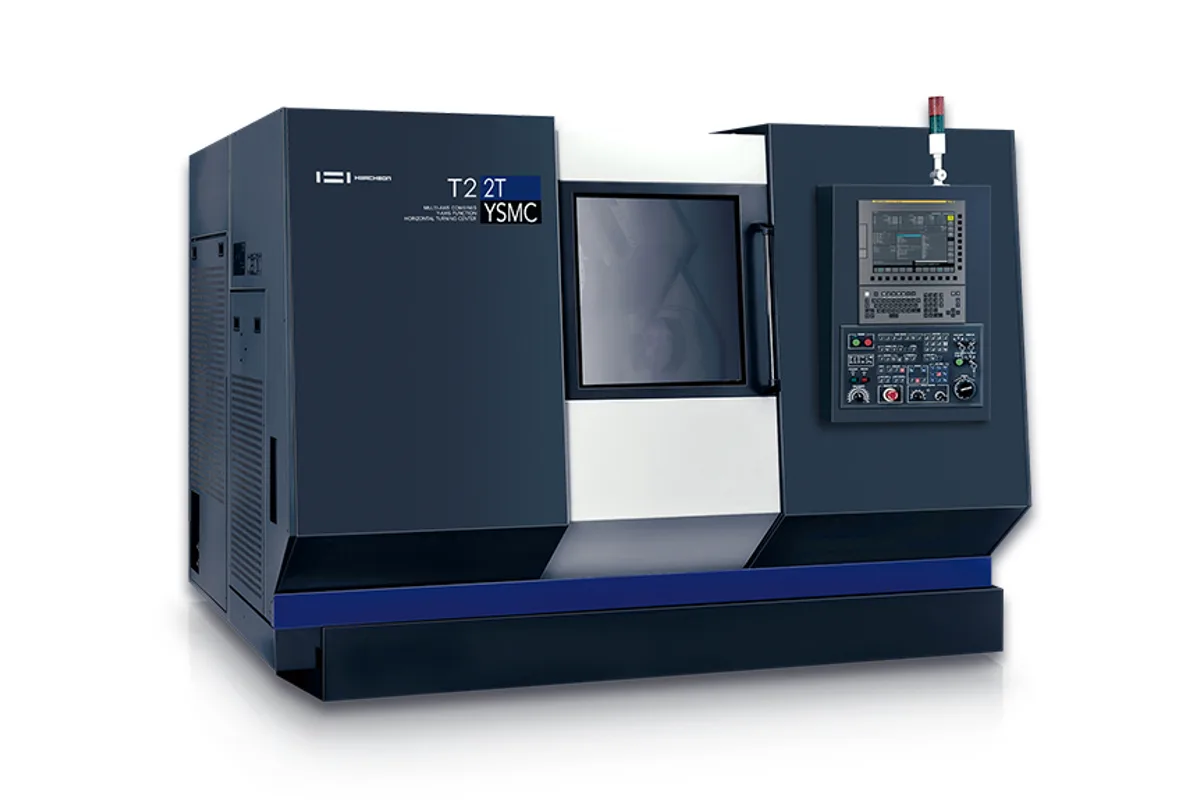

Hwacheon T2 twin-turret multitasking turning centre

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

5,000 rpm

Rapid Traverse

X1 / X2 / Z1 / Z2 / B 30 m/min (1,181 ipm); Y 15 m/min (591 ipm)

Spindle Power

15 / 11 kW (20.1 / 14.8 hp)

Max Turn Length

444 mm (17.5 in); 2nd turret 437 mm (17.2 in) on 2T models

variants

T2-1TMC, T2-1TSMC, T2-1TYMC, T2-1TYSMC, T2-2TMC, T2-2TSMC, T2-2TYMC, T2-2TYSMC

swing over bed

Ø880 mm (Ø34.6 in)

How much does the Hwacheon T2 cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon T2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon T2 is a family of 8 in chuck turning centers that can be ordered with one turret or two, with or without a Y axis, and with a second spindle or a tailstock. The codes spell out the build: 1T or 2T gives the number of turrets, Y marks the Y axis and S the second spindle, across eight versions from the T2-1TMC to the T2-2TYSMC. Every version shares an A2-6 main spindle running to 5,000 rpm with 15 / 11 kW (20.1 / 14.8 hp), a Ø76 mm (Ø3.0 in) bore and Ø65 mm (Ø2.6 in) bar capacity.

The second turret is the defining option. On 2T models a lower turret with its own X2 travel of 210 mm (8.3 in) and Z2 travel of 520 mm (20.5 in) works alongside the upper one, so roughing and finishing, or work on both spindles, can overlap in time. Each turret has 12 stations and indexes at 0.6 sec/step. The lower turret covers a smaller envelope: Ø390 mm (Ø15.4 in) by 437 mm (17.2 in), against Ø460 mm (Ø18.1 in) by 444 mm (17.5 in) from the upper turret.

S models add a second spindle with another 8 in chuck that travels 550 mm (21.7 in) on its B axis. Models without it carry a tailstock with a Ø80 mm (Ø3.1 in) quill, 590 mm (23.2 in) of travel and an MT #5 taper. Y models add 100 mm (3.9 in) of Y travel. Driven tools run to 6,000 rpm with 7.5 / 5.5 kW (10.1 / 7.4 hp), rated for drills up to Ø20 mm and taps up to M16, and the C axis indexes in 0.0001° steps.

The swing is Ø880 mm (Ø34.6 in), well beyond the cutting envelope, and the standard turning diameter is Ø300 mm (Ø11.8 in). Power demand depends on the build: 55 kVA for the 1TMC and 1TYMC, 75 kVA for the 1TSMC and 1TYSMC, 65 kVA for the 2TMC and 2TYMC and 85 kVA for the 2TSMC and 2TYSMC. All fit a 3,100 x 2,180 x 2,100 mm (122.0 x 85.8 x 82.7 in) envelope and weigh from 7,500 kg (16,535 lb) for the 1TMC to 9,500 kg (20,944 lb) for the 2TYSMC. Control is Fanuc 0i-TF Plus.

Full Specifications

Parameter	Value
Variants	T2-1TMC, T2-1TSMC, T2-1TYMC, T2-1TYSMC, T2-2TMC, T2-2TSMC, T2-2TYMC, T2-2TYSMC
Swing Over Bed	Ø880 mm (Ø34.6 in)
Max Turning Diameter	Ø460 mm (Ø18.1 in); 2nd turret Ø390 mm (Ø15.4 in) on 2T models
Standard Turning Diameter	Ø300 mm (Ø11.8 in)
Max Turning Length	444 mm (17.5 in); 2nd turret 437 mm (17.2 in) on 2T models
Chuck Size	8 in; 8 + 8 in (1st / 2nd spindle) on S models
Spindle Nose	A2-6
Max Spindle Speed	5,000 rpm
Spindle Bore	Ø76 mm (Ø3.0 in)
Bar Capacity	Ø65 mm (Ø2.6 in)
Spindle Bearing Front ID	Ø120 mm (Ø4.7 in)
Spindle Motor Power	15 / 11 kW (20.1 / 14.8 hp)
Turret Stations	12; 12 + 12 on 2T models
Tool Shank Size	□25 mm x Ø40 mm boring bar
Turret Index Time	0.6 sec/step
X Axis Travel	X1 245 mm (9.6 in); X2 210 mm (8.3 in) on 2T models
Z Axis Travel	Z1 520 mm (20.5 in); Z2 520 mm (20.5 in) on 2T models
Y Axis Travel	100 mm (3.9 in) (Y models)
Sub Spindle Travel	B 550 mm (21.7 in) (S models)
Rapid Traverse Rate	X1 / X2 / Z1 / Z2 / B 30 m/min (1,181 ipm); Y 15 m/min (591 ipm)
Feed Axis Motors	X1 3 kW (4 kW on Y models), X2 3 kW, Z1 4 kW, Z2 4 kW, Y 1.6 kW, B 4 kW
Tailstock Quill Diameter	Ø80 mm (Ø3.1 in) (non-S models)
Tailstock Quill Travel	590 mm (23.2 in) (non-S models)
Tailstock Quill Taper	MT #5 (non-S models)
Live Tool Motor	7.5 / 5.5 kW (10.1 / 7.4 hp)
Live Tool Speed Max	6,000 rpm
Live Tool Capacity	Drill Ø20 mm / tap M16
C Axis Indexing	0.0001°
Coolant Tank	260 L (69 US gal)
Power Requirement	55 kVA (1TMC, 1TYMC) / 75 kVA (1TSMC, 1TYSMC) / 65 kVA (2TMC, 2TYMC) / 85 kVA (2TSMC, 2TYSMC)
Machine Dimensions	3,100 x 2,180 x 2,100 mm (122.0 x 85.8 x 82.7 in) (L x W x H)
Machine Weight	7,500 kg (16,535 lb) (1TMC) to 9,500 kg (20,944 lb) (2TYSMC)
CNC Control	Fanuc 0i-TF Plus

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

Optional second 12-station turret on 2T models, with its own X2 and Z2 axes
Second spindle with an 8 in chuck and 550 mm (21.7 in) of B travel on S models
Driven tools to 6,000 rpm with 7.5 / 5.5 kW (10.1 / 7.4 hp), rated for Ø20 mm drills and M16 taps
Ø65 mm (Ø2.6 in) bar capacity through a Ø76 mm (Ø3.0 in) bore
Eight builds on one 3,100 x 2,180 mm (122.0 x 85.8 in) footprint, from 7,500 kg (16,535 lb) to 9,500 kg (20,944 lb)

Limitations

Turning length is 444 mm (17.5 in), or 437 mm (17.2 in) from the second turret
Y travel is 100 mm (3.9 in) and only on Y models
The lower turret on 2T models reaches only Ø390 mm (Ø15.4 in)
The tailstock is only on non-S models, so shaft work and second-spindle work need different builds

Best For

High-volume chucked parts cut by two turrets at once (2T models) Bar parts up to Ø65 mm (Ø2.6 in) finished on both ends (S models) Turned parts with cross holes up to Ø20 mm or M16 taps Short shafts held on the MT #5 tailstock (non-S models)

Frequently Asked Questions

01 What do the T2 model codes mean?

1T models have one turret and 2T models two. Y models add 100 mm (3.9 in) of Y travel. S models add a second spindle with an 8 in chuck travelling 550 mm (21.7 in); models without the S have a tailstock instead. The eight versions run from the T2-1TMC to the T2-2TYSMC.

02 What does the second turret add on the T2?

A second 12-station turret on its own X2 axis of 210 mm (8.3 in) and Z2 axis of 520 mm (20.5 in), with rapids of 30 m/min (1,181 ipm). Two tools can then work at the same time. It covers up to Ø390 mm (Ø15.4 in) and 437 mm (17.2 in), slightly less than the upper turret, and raises the power requirement.

03 How does the T2 compare with the Hwacheon C2?

The Hwacheon C2 turns up to Ø630 mm (Ø24.8 in) from one 18-station turret and adds a 12-tool CAPTO C4 magazine. The T2 turns up to Ø460 mm (Ø18.1 in) but can carry two 12-station turrets. Both use an A2-6 main spindle to 5,000 rpm with Ø65 mm (Ø2.6 in) bar and Fanuc 0i-TF Plus control.

04 How much power does the T2 need?

It depends on the build. The 1TMC and 1TYMC need 55 kVA, the 2TMC and 2TYMC 65 kVA, the 1TSMC and 1TYSMC 75 kVA and the 2TSMC and 2TYSMC 85 kVA. The coolant tank holds 260 L (69 US gal) on all versions.
