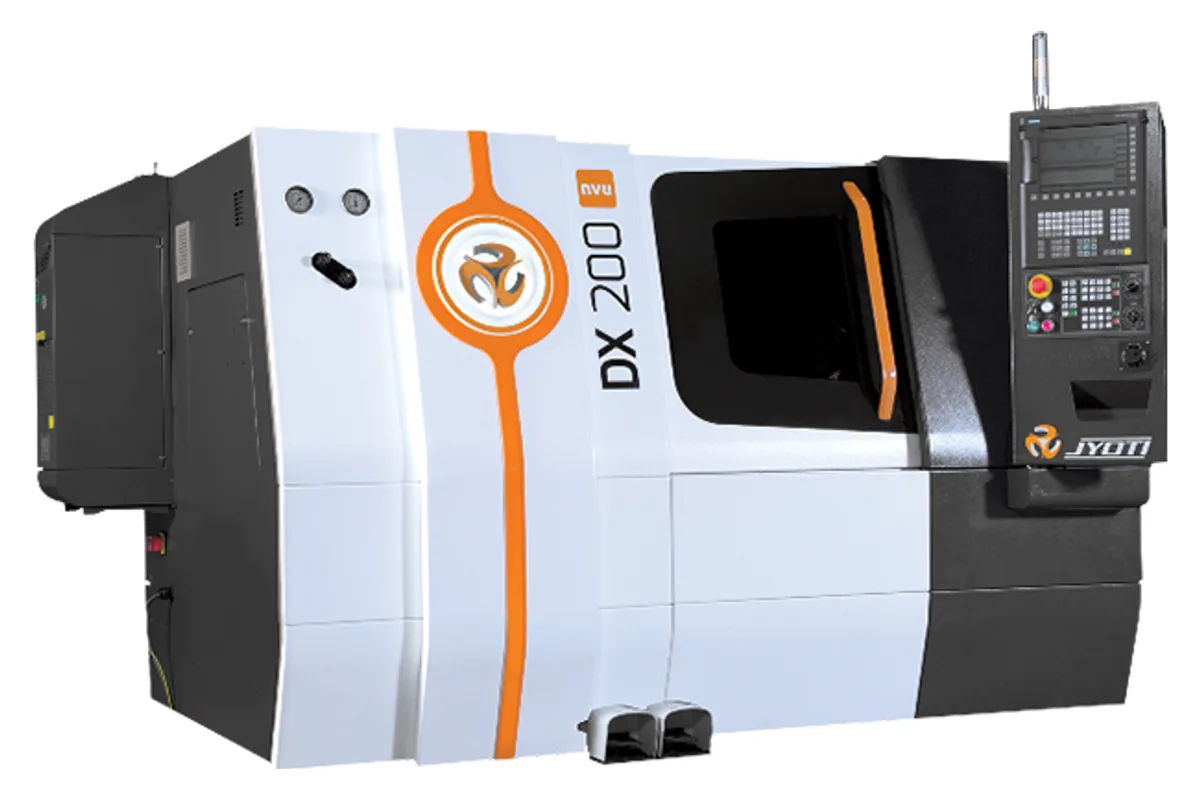

Huron DX 200-5A nvu
Image: huron.fr, Huron
Key Specifications
Max Turn Length
Accuracy
Repeatability
swing over bed
standard turning diameter
max turning diameter
How much does the Huron DX 200-5A nvu cost?
Price estimate
We do not have a price for the Huron DX 200-5A nvu that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron DX 200-5A nvu is the restyled version of the 500 mm DX 200 lathe with the A2-6 spindle. Capacity figures are those of the classic model: 365 mm (14.4 in) maximum turning diameter, 500 mm turning length, a 70 mm bore and 52 mm of bar capacity.
What the nvu generation changes is the machine around that capacity. Huron's feature list adds chip disposal at the rear and an operator panel that tilts through 90°, and states that an electro-spindle is available. The enclosure is wider, 1,680 mm against 1,540 mm for the DX 200-5 A, and slightly taller at 1,730 mm.
Spindle data are unchanged. The range is 50-4,000 rpm with 13.5/9 kW on the Siemens motor and 11/9 kW on the Fanuc motor. X travel is 200 mm, Z travel 500 mm and rapid feed 24 m/min. The tailstock has an 85 mm quill, 120 mm of stroke and 500 kgf of thrust.
One oddity in the nvu table concerns tooling. The tool size row reads 25 x 25 with no unit, and the unit column shows mm against the number of stations, which is 8. The intent is clear enough, but confirm shank size when ordering holders. Weight is 3,400 kg (7,496 lb), with 0.007 mm positioning.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | 500 mm (19.7 in) |
| Standard Turning Diameter | 250 mm (9.8 in) |
| Max Turning Diameter | 365 mm (14.4 in) |
| Max Turning Length | 500 mm (19.7 in) |
| X Axis Travel | 200 mm (7.9 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| Rapid Traverse Xz | 24 m/min |
| Spindle Power Siemens | 13.5/9 kW (18.1/12.1 hp) |
| Spindle Power Fanuc | 11/9 kW (14.8/12.1 hp) |
| Spindle Speed Range | 50-4,000 rpm |
| Spindle Bore | 70 mm (2.8 in) |
| Spindle Nose | A2-6 |
| Bar Capacity | 52 mm (2.0 in) |
| Turret Stations | 8 |
| Max Boring Bar Diameter | 40 mm (1.6 in) |
| Tool Shank Size | 25 x 25 |
| Tailstock Quill Diameter | 85 mm (3.3 in) |
| Tailstock Quill Stroke | 120 mm (4.7 in) |
| Tailstock Thrust | 500 kgf |
| Positioning Accuracy | 0.007 mm (0.0003 in) |
| Repeatability | 0.005 mm (0.0002 in) |
| Machine Weight | 3,400 kg (7,496 lb) |
| Machine Length | 2,350 mm (92.5 in) |
| Machine Width | 1,680 mm (66.1 in) |
| Machine Height | 1,730 mm (68.1 in) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- Rear-side chip disposal and a 90° tilting operator panel
- 365 mm turning diameter and 500 mm turning length
- 52 mm bar capacity through a 70 mm bore at up to 4,000 rpm
- 500 kgf tailstock with hydraulic quill
- Electro-spindle available, according to Huron's feature list
Limitations
- Wider than the classic model, at 1,680 mm
- Bar capacity is 52 mm; the DX 200-5B nvu takes 75 mm
- 8 turret stations and boring bars up to 40 mm
- Fanuc motor power is 11/9 kW
Best For
Frequently Asked Questions
01
Capacity and spindle figures match. The nvu version is listed with rear-side chip disposal, a 90° tilting operator panel and an available electro-spindle, and its enclosure is 1,680 mm wide where the DX 200-5 A is 1,540 mm wide. Both weigh 3,400 kg.
02
A2-6 nose, 70 mm bore, 52 mm bar capacity and a 50-4,000 rpm speed range. Motor power is 13.5/9 kW with Siemens and 11/9 kW with Fanuc.
03
A bi-directional servo turret with 8 stations. The tool size is listed as 25 x 25 and the maximum boring bar diameter is 40 mm. Huron quotes a tool changing time of 0.5 sec.
04
Approximately 2,350 mm long, 1,680 mm wide and 1,730 mm high. Machine weight is approximately 3,400 kg (7,496 lb), and Huron lists three-point levelling.
