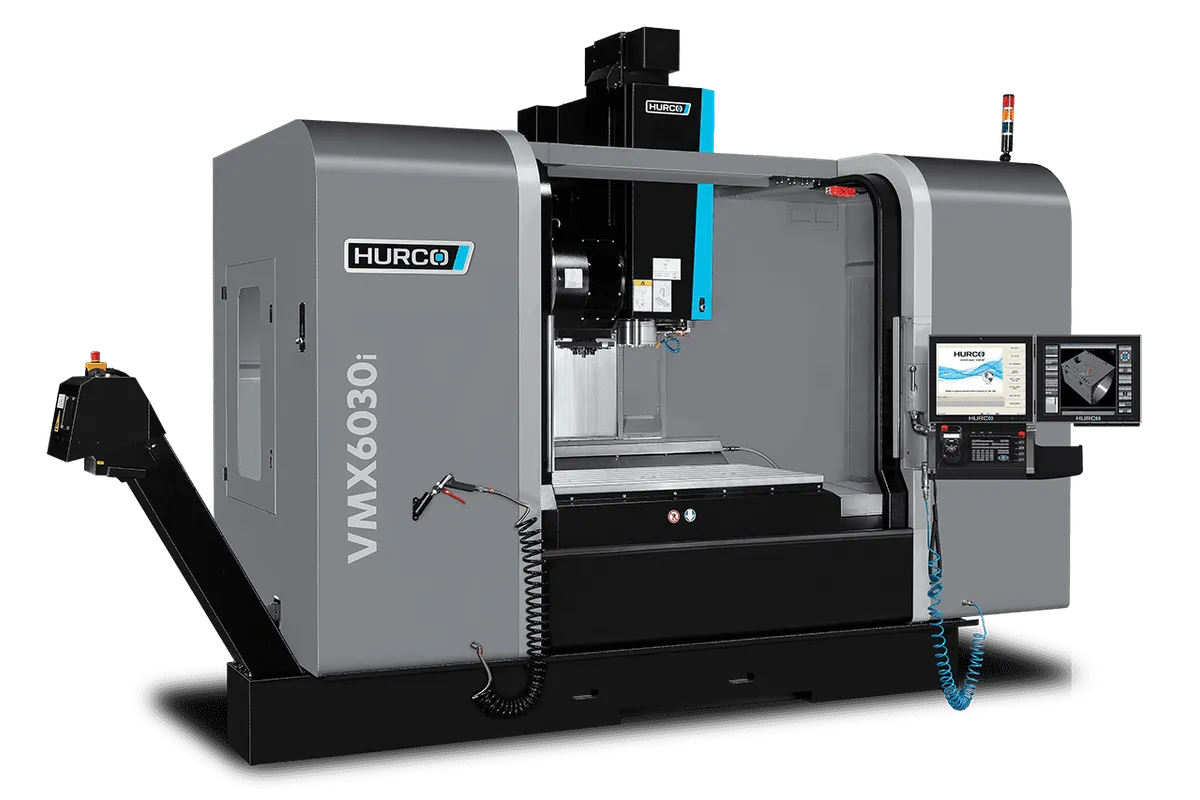

Hurco VMX6030i-50T

$175,000 - $215,000 (new) | $100,000 - $155,000 (used) Updated 2025-03-15

Key Specifications

X Travel

1,524 mm (60 in)

Y Travel

762 mm (30 in)

Z Travel

508 mm (20 in)

Max Spindle

10,000 RPM

Spindle Taper

CAT 50 / Big Plus

Tool Capacity

Overview

The Hurco VMX6030i-50T combines the wide-format 60x30-inch travel envelope of the VMX6030i with a CAT 50 Big Plus spindle for maximum material removal capability. This is Hurco's answer for shops that need to rough wide steel mold bases, die plates, and large cast iron parts without compromising on Y-axis reach.

Travels are 1,524 x 762 x 508 mm (60 x 30 x 20 in), identical to the 40-taper VMX6030i. The spindle upgrades to a 10,000 RPM Big Plus CAT 50 producing 18.5 kW (25 hp) and 358 Nm (264 ft-lbs) of torque. With 30 inches of Y-travel and 264 ft-lbs of torque, you can push a 4-inch face mill across a 24-inch-wide steel plate at production feeds — something the 40-taper version struggles with.

Table dimensions are 1,524 x 762 mm (60 x 30 in) with a 2,800 kg (6,173 lb) max load. The increased load capacity over the 40-taper version handles the heavier workpieces typical in 50-taper applications. The 40-tool arm-type ATC manages CAT 50 toolholders without issues.

The hybrid guide construction — roller guides on X and Y, box way on Z — provides the speed-rigidity balance needed for a machine this size. Rapids are 30 m/min (1,181 ipm) on X, 27 m/min (1,063 ipm) on Y, and 24 m/min (945 ipm) on Z. The heavier CAT 50 spindle head slows rapids slightly compared to the 40-taper version.

At approximately 10,800 kg (23,810 lb), the VMX6030i-50T is one of the heaviest machines in Hurco's lineup. Foundation requirements are serious — plan for a minimum 12-inch reinforced concrete pad. WinMax control is standard, providing both conversational and G-code programming capability.

Pricing runs $175,000-$215,000 new. Used machines from 2016-2021 trade in the $100,000-$155,000 range. At this level, it competes with large-format 50-taper VMCs from Mazak, Okuma, and DMG Mori.

Full Specifications

Parameter	Value
X-Axis Travel	1,524 mm (60 in)
Y-Axis Travel	762 mm (30 in)
Z-Axis Travel	508 mm (20 in)
Max Spindle Speed	10,000 RPM
Spindle Taper	CAT 50 / Big Plus
Spindle Motor Power	29.7 hp (22.2 kW)
Spindle Torque	260 ft. lbs @ 750 rpm (353 Nm @ 750 rpm)
Tool Capacity	30
Table Size	66 x 30 in (1,680 x 762 mm)
Max Table Load	2,800 kg (6,173 lb)
Rapid Traverse Xy	30 m/min (1,181 ipm)
Rapid Traverse Z	24 m/min (945 ipm)
Machine Weight	10,800 kg (23,810 lb)
CNC Control	Hurco WinMax
Travels Capacityx Y Z Axis Travel	60 x 30 x 24.02 in (1,524 x 762 x 610 mm)
T Slot Size	7 x .71 in (7 x 18 mm)
Spindle Nose To Table	4.0 in (101 mm)
Max Weight On Table	4,410 lb (2,000 kg)
Spindlemax Spindle Speed	8,000 rpm
Tool Changertool Type	CAT 50 / Big Plus® (CAT 50)
Max Tool Diameter	4.7 in (120 mm)
Max Tool Length	11.8 in (300 mm)
Max Tool Weight	33 lbs (15 kg)
Feedratesrapid Traverse Xyz Axis	1,260, 1,260, 945 in/min (32, 32, 24 m/min)
Max Programmable Feedrate	945 in/min (24 m/min)
Sizemax Operating Floor Space	220.7 x 160.8 in (5,606 x 4,084 mm)
Machine Height	132.1 in (3,355 mm)
Machine Weight	25,678 lb (11,674 kg)

Specifications sourced from hurco.com — verified 2026-03-28

Strengths & Limitations

Strengths

CAT 50 spindle with 358 Nm torque enables heavy roughing across the wide 60x30" travel envelope
30 inches of Y-travel is rare in the 50-taper VMC category, enabling wide mold base and die plate work
2,800 kg table load handles the heaviest workpieces and largest fixtures
10,800 kg machine weight ensures vibration-free cutting even during aggressive roughing
Big Plus CAT 50 dual-contact taper maximizes rigidity for heavy-duty operations
40-tool ATC provides ample capacity even with physically larger CAT 50 toolholders

Limitations

10,000 RPM limit constrains efficiency with small endmills in aluminum
CAT 50 tooling costs significantly more than CAT 40 equivalents
10,800 kg weight requires a serious foundation — 12-inch reinforced concrete minimum
Very large footprint demands substantial floor space
$175-215K enters territory dominated by established large-format builders like Mazak and Okuma

Best For

Mold shops roughing wide steel mold bases that need both Y-travel and spindle torque Die and stamping shops working on large die plates and progressive die components Heavy fabrication shops machining large steel plates and structural components Aerospace shops cutting wide titanium and steel structural parts Shops that need to face mill wide steel surfaces quickly with large inserted cutters Production environments processing heavy cast iron castings and forgings

Frequently Asked Questions

01 What does a Hurco VMX6030i-50T cost?

New base price starts around $175,000. Fully configured with through-spindle coolant, probing, chip conveyor, and options, expect $195,000-$215,000. Used machines from 2016-2021 sell for $100,000-$155,000.

02 When should I choose the 50T over the standard VMX6030i?

Choose the 50T if your primary materials are steel, cast iron, stainless, or titanium and you need to rough aggressively with cutters over 2 inches in diameter. The 264 ft-lbs of torque vs 157 ft-lbs in the 40-taper makes a dramatic difference in metal removal rate. For aluminum-dominant shops, the standard 40-taper is faster and cheaper to tool.

03 How does the VMX6030i-50T compare to a Mazak VTC-800 or similar?

The Hurco offers conversational programming through WinMax and a generous 40-tool capacity. Mazak and similar builders typically offer higher spindle power and larger Y-axis options. The Hurco's advantage is programming flexibility; competitors may edge ahead on raw cutting performance.

04 What's unique about the 60x30 travel configuration?

Most large-format VMCs prioritize X-axis length over Y-axis width. The VMX6030i-50T's 30-inch Y is unusual — it lets you machine 24-inch-wide parts, set up three vises across the table, or work on wide mold and die components that would require repositioning on a standard 20-inch Y machine.

05 Can I run unattended production on the VMX6030i-50T?

With Hurco's ProCobot automation and the 40-tool ATC, yes. The wide table supports pallet-style loading where parts are loaded on one side while machining continues on the other. Through-spindle coolant and chip management systems support extended unattended runs.
