Parpas SL 30
This model was not found in Parpas's current lineup when we checked on 2026-10-03 . It may be a superseded or older model; the specifications below are as we last recorded them.
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Table Size
Spindle Power
How much does the Parpas SL 30 cost?
Estimated price range
Our best estimate for a 5-axis machining center in this class — not a quote from Parpas. Configuration moves it a long way.
Overview

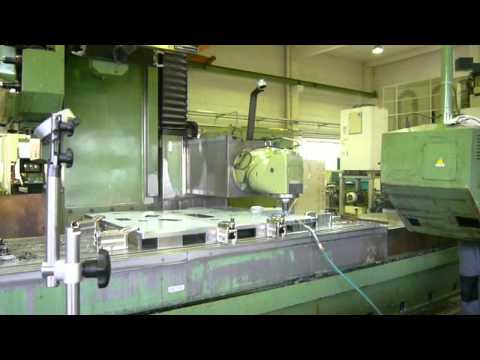

The Parpas SL 30 is a 5-axis machining centre built to order around a crossrail and a ram. Going by the listed figures, the crossrail sets Y travel at 2,000–3,500 mm, the ram stroke gives 800–1,500 mm in Z depending on configuration, and X travel starts at 3,000 mm and goes up from there. The SL 30 is not in Parpas's current lineup.
No table size is given. The table row reads customer-defined floor plate or T-slot table, which means the workholding surface of any SL 30 is whatever its first owner specified. Look at that surface early: slot pattern, plate size and load rating decide whether existing fixtures can be used.
On the cutting side, spindle power is up to 40 kW and head-dependent, an electrospindle option reaches up to 24,000 RPM, and feed rate is up to 25,000 mm/min. Machine weight is typically 30,000–80,000 kg depending on configuration.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 3,000 mm and above (custom configuration) |
| Y-Axis Travel | 2,000–3,500 mm (crossrail dependent) |
| Z-Axis Travel | 800–1,500 mm (ram stroke, configuration dependent) |
| Table Size | Customer-defined floor plate or T-slot table |
| Max Spindle Speed | Up to 24,000 RPM (electrospindle option) |
| Spindle Motor Power | Up to 40 kW (head-dependent) |
| Feed Rate Max | Up to 25,000 mm/min |
| CNC Control | Heidenhain TNC 640 or Siemens Sinumerik 840D sl |
| Machine Weight | Typically 30,000–80,000 kg (configuration dependent) |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Y travel of 2,000–3,500 mm, chosen with the crossrail
- Ram stroke of 800–1,500 mm in Z, depending on configuration
- Feed rate of up to 25,000 mm/min and an electrospindle option of up to 24,000 RPM
- Floor plate or T-slot table defined by the customer
Limitations
- Spindle power is capped at 40 kW and depends on the head fitted
- No table size or table load is listed, since the table is customer-defined
- X travel is given only as 3,000 mm and above, so the real figure must come from the machine itself
Best For
Frequently Asked Questions
01
It varies by machine. X travel is listed as 3,000 mm and above in a custom configuration, Y travel as 2,000–3,500 mm depending on the crossrail, and Z travel as 800–1,500 mm of ram stroke depending on configuration.
02
The table row lists a customer-defined floor plate or a T-slot table and gives no dimensions. Measure the plate or table of the actual machine, and check its slot layout, before planning fixtures for it.
03
Spindle power is up to 40 kW and depends on the head. Spindle speed is up to 24,000 RPM with the electrospindle option. Feed rate is up to 25,000 mm/min. Each is a ceiling, so the head fitted to a machine sets what it delivers.
