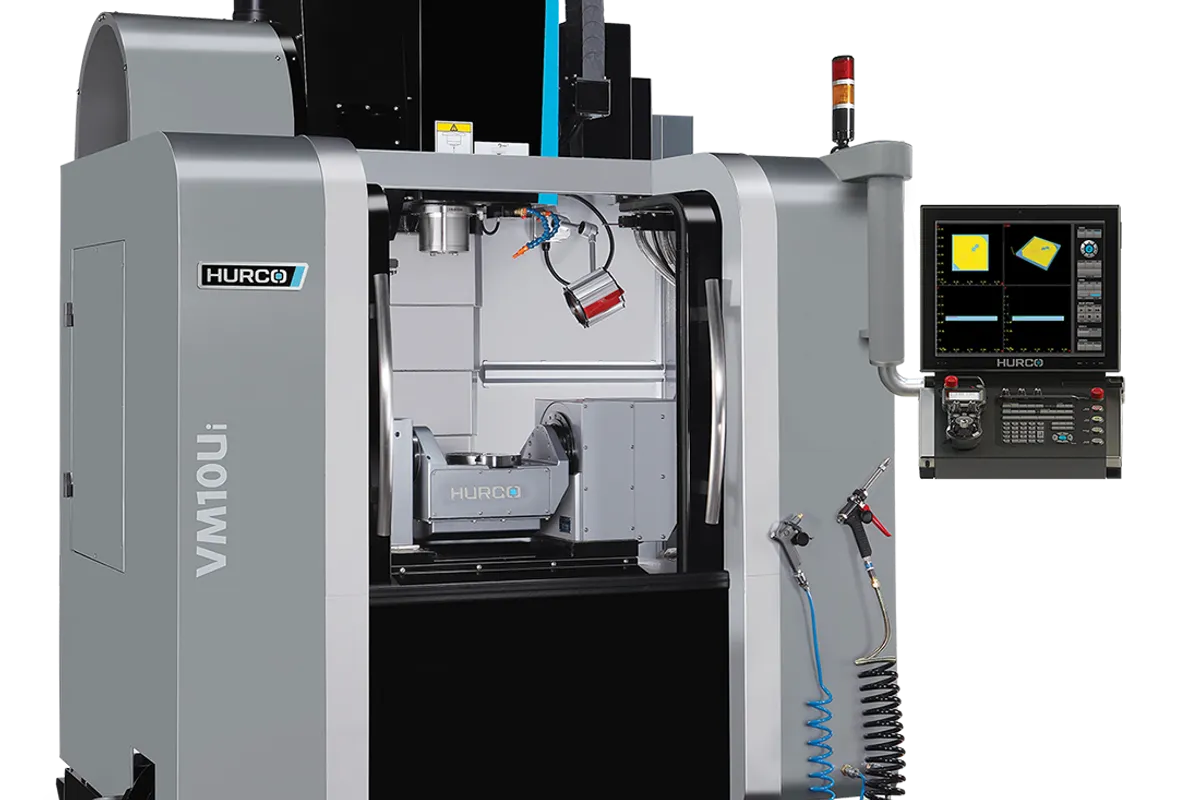

Hurco VM10Ui

$120,000 - $160,000 (new) | $70,000 - $100,000 (used) Updated 2025-03-15

Key Specifications

X Travel

533 mm (21 in)

Y Travel

406 mm (16 in)

Z Travel

483 mm (19 in)

Max Spindle

12,000 RPM

Spindle Taper

CAT 40 / Big Plus

Tool Capacity

Overview

The Hurco VM10Ui is the entry point into Hurco's trunnion-style 5-axis lineup, and it punches well above its compact footprint. Built on the proven VM10i platform with an integrated A/C trunnion table, this machine lets small job shops and prototyping departments step into simultaneous 5-axis work without blowing up their floor plan or their budget.

Travels are 533 x 406 x 483 mm (21 x 16 x 19 in) with a 198 mm (7.8 in) diameter trunnion table rated for 150 kg (330 lb). The A-axis tilts +30/-110 degrees and the C-axis rotates a full 360 degrees, giving you the envelope to machine five sides of a part in a single setup. At 25 RPM rotary rapid, the trunnion repositions quickly between indexed positions.

The spindle runs 12,000 RPM through a CAT 40 / Big Plus taper, delivering 7.5 kW (10 hp) and 47.7 Nm (35.2 ft-lbs) of torque at 1,500 RPM. That's enough for aluminum, brass, and mild steel in the part sizes this table can hold. You're not going to hog stainless or Inconel on this machine, but that's not what it's built for. The 24-tool ATC keeps enough cutters loaded for most 5-axis jobs without mid-program swaps.

The real differentiator is Hurco's WinMax control with 3D DXF import. Where competing 5-axis machines at this size require a full CAM seat and post processor, WinMax lets operators program 5-axis parts conversationally. For shops doing short-run medical components, aerospace brackets, or one-off fixtures, this workflow eliminates the CAM bottleneck entirely.

Rapid traverse runs 28 m/min (1,102 ipm) on all linear axes. At 3,360 kg (7,392 lb), the machine is compact enough for shops with limited floor space, needing only 3,264 x 3,378 mm (128.5 x 133 in) of operating space. Power draw is a modest 14 KVA.

Pricing for the VM10Ui runs $120,000-$160,000 new depending on options. Used machines from 2018-2022 trade in the $70,000-$100,000 range. Compared to the Haas UMC-500 or DMG MORI CMX 50 U, the Hurco's conversational 5-axis programming is the key selling point for shops that don't have dedicated CAM programmers on staff.

Full Specifications

Parameter	Value
X-Axis Travel	533 mm (21 in)
Y-Axis Travel	406 mm (16 in)
Z-Axis Travel	483 mm (19 in)
A Axis Range	+30° / -110°
C Axis Range	360°
Max Spindle Speed	12,000 RPM
Spindle Taper	CAT 40 / Big Plus
Spindle Motor Power	10 hp (7.5 kW)
Spindle Torque	35.2 ft lbs @ 1,500 rpm (47.7 Nm @ 1,500 rpm)
Tool Capacity	24
Rotary Table Diameter	198 mm (7.8 in)
Max Table Load	150 kg (330 lb)
Rapid Traverse Xyz	28 m/min (1,102 ipm)
Rotary Axis Rapid	25 RPM
Max Tool Diameter	3.1 in (79 mm)
Max Tool Length	9.8 in (250 mm)
Max Tool Weight	15.4 lb (7 kg)
Machine Weight	3,360 kg (7,392 lb)
Floor Space	3,264 x 3,378 mm (128.5 x 133 in)
CNC Control	Hurco WinMax
Travels Capacityx Y Z Axis Travel	21.02 x 16.02 x 19.02 in (533 x 406 x 483 mm)
A Axis Travel	+30°/-110°
C Axis Travel	360°
Spindle Nose To Table Min Max	1.4 / 20.4 in (36 / 519 mm)
Table Diameter	7.8 in (198 mm)
Max Weight On Table	330 lbs (150 kg)
T Slot Size	6 x .39 in (6 x 10 mm)
Spindlemax Spindle Speed	12,000 rpm
Tool Changertool Type	CAT 40 / BIG PLUS® (CAT, BT, DIN 40)
Feedratesrapid Traverse Xyz Axis	1,102 in/min (28 m/min)
Max Programmable Feedrate	1,102 in/min (28 m/min)
Rapid Traverse A C Axis	25 rpm
Sizemax Operating Floor Space	128.5 x 133 in (3,263.9 x 3,378.2 mm)
Machine Height	106.9 in (2,715.3 mm)
Machine Weight	7,392 lbs (3,360 kg)
Electricalpower Rating Full Load Kva	14 KVA

Specifications sourced from hurco.com — verified 2026-03-28

Strengths & Limitations

Strengths

WinMax conversational control with 3D DXF import enables 5-axis programming without dedicated CAM software
Compact 3,264 x 3,378 mm footprint fits in shops where larger 5-axis machines simply won't go
CAT 40 / Big Plus taper provides rigid toolholding for a machine this size, reducing chatter in finish passes
Integrated trunnion table eliminates the bolt-on rotary accuracy concerns of retrofit 5-axis solutions
24-tool ATC is generous for a compact 5-axis, keeping enough cutters loaded for complex multi-surface jobs
Entry-level pricing around $120K makes simultaneous 5-axis accessible to small job shops and prototype departments

Limitations

7.5 kW (10 hp) spindle limits material removal rates in steel and harder alloys significantly
198 mm (7.8 in) trunnion table restricts part size to small components — medical implants and small brackets only
150 kg (330 lb) table capacity rules out heavier fixture-and-part combinations common in production work
12,000 RPM max spindle speed is adequate but won't compete with 15K-20K RPM machines for high-speed aluminum finishing
Hurco's smaller dealer network means longer wait times for service and parts compared to Haas or DMG MORI

Best For

Small job shops adding 5-axis capability for the first time without a dedicated CAM programmer Medical device manufacturers machining small implants, instruments, and surgical guides Prototype departments needing 5-sided machining in a compact floor space Aerospace shops producing small brackets, fittings, and connectors in aluminum and titanium Tool and die shops machining small electrodes and cavity inserts from multiple angles Educational institutions and training centers teaching 5-axis machining fundamentals

Frequently Asked Questions

01 What does a Hurco VM10Ui cost?

New pricing runs $120,000-$160,000 depending on options like through-spindle coolant and probing. Used VM10Ui machines from 2018-2022 sell in the $70,000-$100,000 range. This positions it as one of the more affordable entry points into simultaneous 5-axis machining.

02 Can the VM10Ui do simultaneous 5-axis machining or just 3+2?

Both. The WinMax control supports full simultaneous 5-axis interpolation as well as 3+2 indexed positioning. Most job shop work uses 3+2 for five-sided access, but the machine can run simultaneous 5-axis toolpaths from CAM when needed for contoured surfaces.

03 How does the VM10Ui compare to the Haas UMC-500?

The Haas UMC-500 offers a larger 305 mm trunnion table, more spindle power (22.4 kW vs 7.5 kW), and a lower price point around $100K. The Hurco's advantage is the WinMax conversational control, which eliminates the need for CAM on many 5-axis jobs. If your shop programs at the machine, Hurco wins. If you have a CAM department, the Haas is hard to beat on value.

04 What materials can the VM10Ui handle?

Aluminum, brass, mild steel, and plastics are the sweet spot. The 10 hp spindle and small table are well-matched for these materials in the part sizes the machine can hold. It'll cut stainless and titanium at reduced depths and feeds, but it's not designed for heavy material removal in hard metals.

05 Is the WinMax control compatible with standard G-code?

Yes. WinMax runs standard G-code (EIA/ISO) natively alongside its conversational programming system. CAM-generated programs from Mastercam, Fusion 360, and SolidCAM work with a Hurco post processor. The NC/Conversational Merge feature lets you combine both programming methods in a single program.

06 What kind of accuracy does the VM10Ui hold?

With proper anchoring and leveling, the VM10Ui holds positioning accuracy of ±0.005 mm (±0.0002 in) and repeatability of ±0.003 mm (±0.0001 in) on linear axes. Rotary axis accuracy is ±5 arc-seconds. These are typical specs for a trunnion-style 5-axis in this class.
