HNK HPM-30L (30x100)
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
distance between columns
distance spindle nose to table
How much does the HNK HPM-30L (30x100) cost?
Price estimate
We do not have a price for the HNK HPM-30L (30x100) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HNK HPM-30L (30x100) is a three-metre-wide heavy double column machining center with a ten-metre table: 3,000 x 10,000 mm (118.1 x 393.7 in), and 10,250 mm (403.5 in) of X travel.
No other HNK series offers this width at this length. The H and M lines stop at eight metres for a 3,000 mm table, so a long, comparatively narrow heavy part leads here: a marine engine bedplate section, a long generator stator frame, a rolling-mill stand laid on its side.
The table rating is 50,000 kg (110,229 lb), unchanged from the eight-metre version. On a longer table that is a lower load per metre, which is worth checking for a dense part that does not use the full length.
Headroom is generous. HNK lists 3,000 mm (118.1 in) between table and spindle end, 3,500 mm (137.8 in) in braces, with a crossrail travel of 2,500 mm (98.4 in). The 500 x 500 mm (19.7 x 19.7 in) ram travels 1,000 mm (39.4 in), or 1,200 mm (47.2 in) per the figure in braces.
The spindle is Ø130 mm (5.1 in) with ISO No.50 taper at 2,000 rpm. Power is 45/55 kW (60.3/73.8 hp), cont/30min, with 60/75 kW (80.5/100.6 hp) in braces. Y travel is 4,850 mm (190.9 in) across 3,850 mm (151.6 in) columns.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 3,850 mm (151.6 in) |
| Distance Spindle Nose to Table | 3,000 mm (118.1 in) {3,500 mm (137.8 in)} |
| X Axis Travel | 10,250 mm (403.5 in) |
| Y Axis Travel | 4,850 mm (190.9 in) |
| Z Axis Travel | 1,000 mm (39.4 in) {1,200 mm (47.2 in)} |
| W Axis Travel | 2,500 mm (98.4 in) |
| Table Size | 3,000 x 10,000 mm (118.1 x 393.7 in) |
| Max Table Load | 50,000 kg (110,229 lb) |
| Spindle Taper | ISO No.50 |
| Spindle Diameter | Ø130 mm (5.1 in) |
| Ram Size | 500 x 500 mm (19.7 x 19.7 in) |
| Max Spindle Speed | 2,000 rpm |
| Spindle Motor Power | 45/55 kW (60.3/73.8 hp) {60/75 kW (80.5/100.6 hp)} (cont/30min) |
| CNC Control | Fanuc 31i-B, Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 10,250 mm (403.5 in) of X travel on a 3,000 mm (118.1 in) wide table
- 2,500 mm (98.4 in) of crossrail travel
- 2,000 rpm spindle with 45/55 kW (60.3/73.8 hp)
- 500 x 500 mm (19.7 x 19.7 in) ram
Limitations
- 50,000 kg (110,229 lb) rating is spread over a longer table
- Ram travel of 1,000 mm (39.4 in) is half that of the HPM-40L
- ISO No.50 spindle of Ø130 mm (5.1 in)
Best For
Frequently Asked Questions
01
3,000 x 10,000 mm (118.1 x 393.7 in), with a maximum allowable weight of 50,000 kg (110,229 lb). X travel is 10,250 mm (403.5 in).
02
Both travel 10,250 mm in X. The HPM-40L (40x100) is 4,000 mm wide, carries 80,000 kg (176,367 lb), has a Ø160 mm (6.3 in) spindle at 1,000 rpm and 2,000 mm (78.7 in) of ram travel. The HPM-30L is the lighter, faster machine.
03
4,850 mm (190.9 in). The effective distance between columns is 3,850 mm (151.6 in), a starred row that HNK can change according to the customer's requirements.
04
The motor row reads 45/55 kW (60.3/73.8 hp) followed by 60/75 kW (80.5/100.6 hp) in braces. HNK does not explain the braces, and the row is starred, so the motor should be fixed in the order.
More from HNK
Other Vertical Machining Centers (VMC)
Leadwell V-42iT
KAAST VF-Mill A 7L

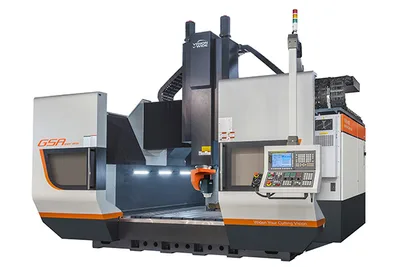

Vision Wide GSA-3027
