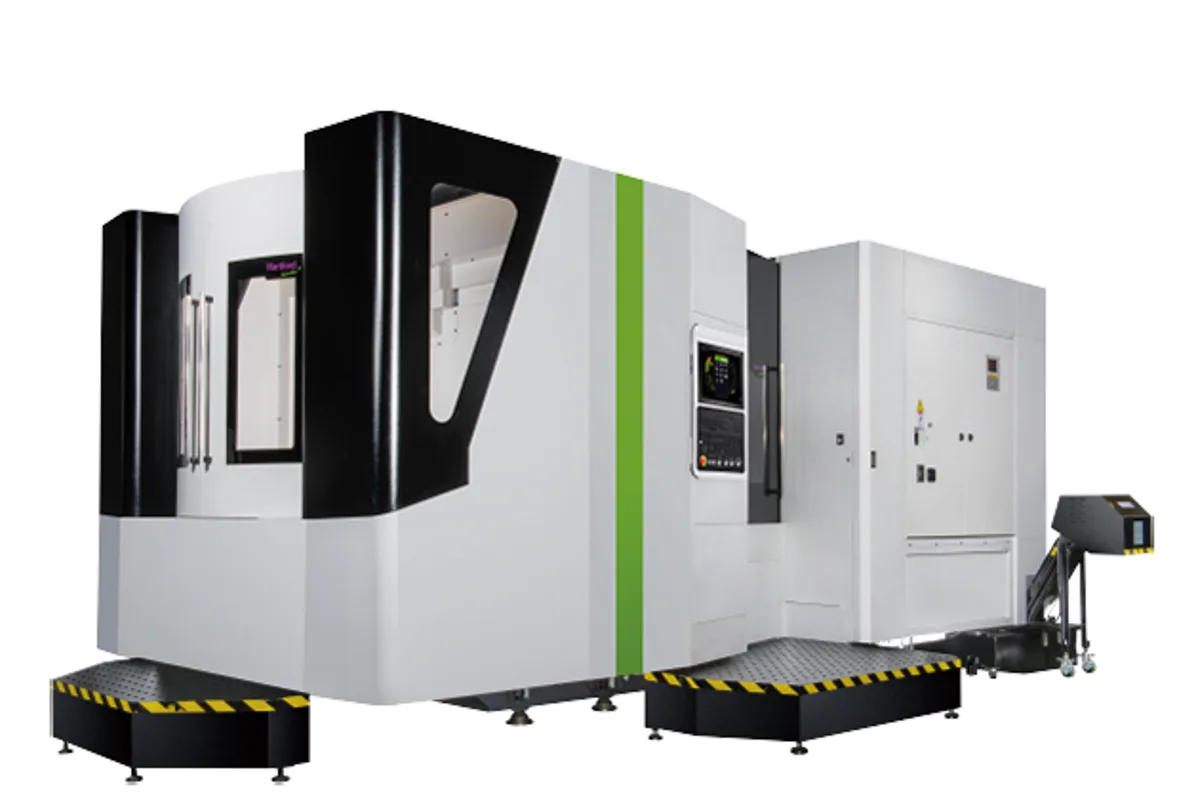

Hartford HMC-10 Plus
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford HMC-10 Plus cost?
Price estimate
We do not have a price for the Hartford HMC-10 Plus that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford HMC-10 Plus keeps the 1,000 x 1,000 mm (39.4 x 39.4 in) pallet of the HMC-10 and enlarges everything around it. Travels are 1,700 mm (66.9 in) in X, 1,400 mm (55.1 in) in Y and 1,525 mm (60.0 in) in Z, and the pallet load rises to 3,000 kg (6,614 lb).
Why more travel over the same pallet? Because large parts rarely fit inside the pallet outline. A casting bolted to a one-metre pallet may overhang it on every side and stand far higher than it is wide. Against the HMC-10, the tables give 1,700 mm of X where the HMC-10 has 1,300 mm (51.2 in), and 1,400 mm of Y where the HMC-10 has 1,000 mm (39.4 in). In practice that is the difference between reaching the outer faces of an oversize part and not reaching them.
The magazine starts where the others end: 60 tools, with 90 and 120 as options. Spindles and motors are those of the series, a gear head at 6,000 rpm or a built-in spindle at 10,000 rpm, with 15 / 18.5 kW and options of 18.5 / 22 kW and 22 / 26 kW (Cont. / 30 min).
Hartford notes that the built-in spindle has water and dust protection for its bearings, runs on special bearings for axial and radial loads and is temperature-controlled by a cooler system.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,000 x 1,000 mm (39.4 x 39.4 in) |
| Max Table Load | 3,000 kg (6,614 lb) |
| X Axis Travel | 1,700 mm (66.9 in) |
| Y Axis Travel | 1,400 mm (55.1 in) |
| Z Axis Travel | 1,525 mm (60.0 in) |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 rpm |
| Spindle Speed Built in | 10,000 rpm |
| Tool Capacity | 60(90/120 OP) pcs |
| Tool Shank | BBT50 (CAT50 / DIN69871) |
| Spindle Motor Power | 15 /18.5 opt. 18.5 / 22, 22 / 26 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Travels of 1,700 x 1,400 x 1,525 mm, the largest in the HMC line
- Pallet load of 3,000 kg (6,614 lb)
- 60-tool magazine with 90 and 120 as options
- Y travel of 1,400 mm (55.1 in) over a 1,000 mm pallet for tall workpieces
- Gear spindle at 6,000 rpm or built-in spindle at 10,000 rpm
Limitations
- The pallet itself is no larger than the HMC-10's 1,000 x 1,000 mm (39.4 x 39.4 in)
- Motor options are unchanged from the smaller models, at most 22 / 26 kW (Cont. / 30 min)
- Spindle speed is capped at 10,000 rpm
- No quill or W axis; for deep boring Hartford's PBM boring mills are the alternative
Best For
Frequently Asked Questions
01
Travel, load and magazine. The HMC-10 Plus has 1,700 mm (66.9 in), 1,400 mm (55.1 in) and 1,525 mm (60.0 in) of X, Y and Z and carries 3,000 kg (6,614 lb). The HMC-10 has 1,300 mm (51.2 in), 1,000 mm (39.4 in) and 1,150 mm (45.3 in) and carries 2,000 kg (4,409 lb).
02
The table reads 60(90/120 OP) pcs: 60 tools as listed, with 90 or 120 as options. Shanks are BBT50, and CAT50 and DIN69871 are named as alternatives.
03
The pallet is 1,000 x 1,000 mm (39.4 x 39.4 in) with an average load of 3,000 kg (6,614 lb). It is positioned on 4 taper cones with air blast on the cone surface and clamped by a hydraulic drawbar.
04
The gear head at 6,000 rpm for heavy cutting in iron and steel; the built-in type spindle at 10,000 rpm for higher-speed work. Both are #50, and the motor is 15 / 18.5 kW with 18.5 / 22 kW and 22 / 26 kW as options.
