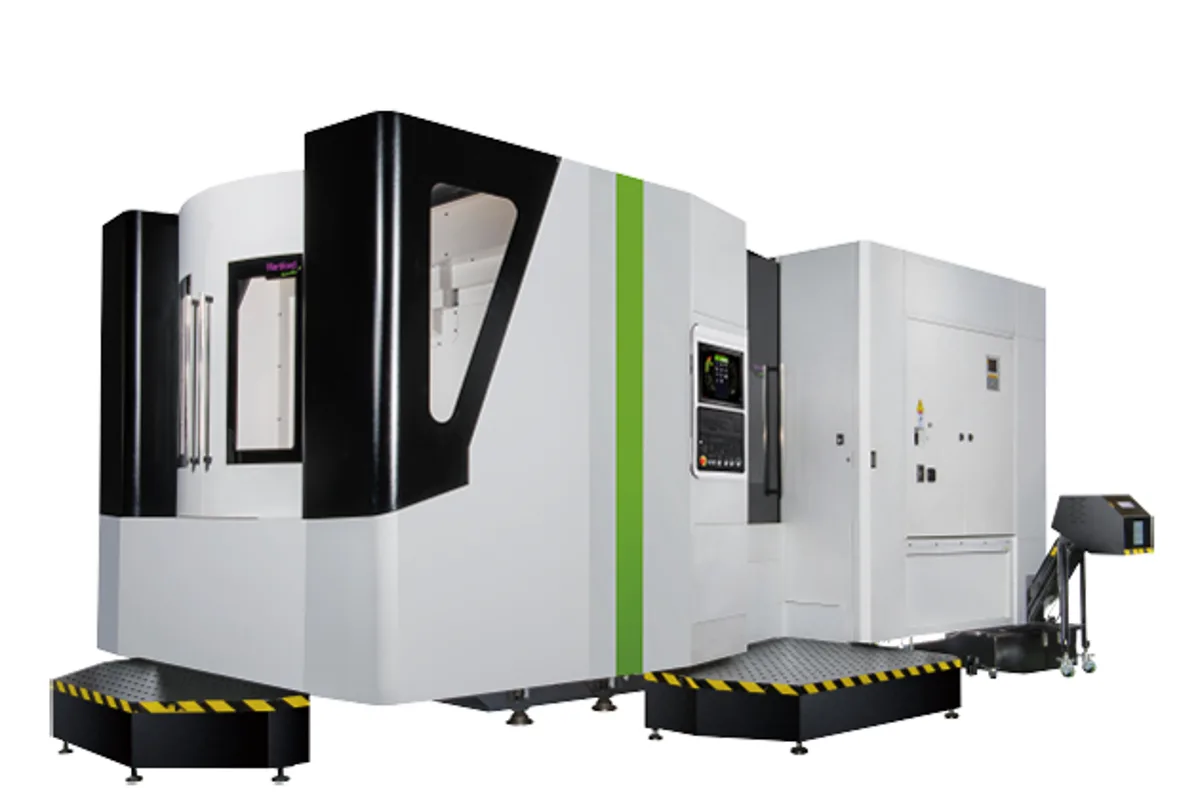

Hartford HMC-10
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford HMC-10 cost?
Price estimate
We do not have a price for the Hartford HMC-10 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford HMC-10 is a horizontal machining center with a 1,000 x 1,000 mm (39.4 x 39.4 in) pallet rated for 2,000 kg (4,409 lb). Travels are 1,300 mm (51.2 in) in X, 1,000 mm (39.4 in) in Y and 1,150 mm (45.3 in) in Z, and the spindle nose is #50.
A one-metre pallet moves the work into a different class of part: machine tool castings, large gear housings, construction equipment components. Z travel of 1,150 mm (45.3 in) lets a boring bar pass through a part that spans the whole pallet, and Y travel equal to the pallet width gives a square working window.
Hartford offers a gear-head spindle at 6,000 rpm and a built-in spindle at 10,000 rpm. The built-in unit runs on special bearings that the maker says resist axial and radial loads well, with sealed bearing protection against water and dust. Motors are 15 / 18.5 kW, optionally 18.5 / 22 kW or 22 / 26 kW (Cont. / 30 min).
The magazine for the HMC-10 is listed as 30, 40 or 60 tools. That is smaller than the 40 / 60 / 90 of the otherwise identical HMC-1000, and it is the only difference between the two published tables. The pallet changer is servo-driven, mounted on the base, and switches in 12 sec.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,000 x 1,000 mm (39.4 x 39.4 in) |
| Max Table Load | 2,000 kg (4,409 lb) |
| X Axis Travel | 1,300 mm (51.2 in) |
| Y Axis Travel | 1,000 mm (39.4 in) |
| Z Axis Travel | 1,150 mm (45.3 in) |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 rpm |
| Spindle Speed Built in | 10,000 rpm |
| Tool Capacity | A: 30 / 40 / 60 pcs |
| Tool Shank | BBT50 (CAT50 / DIN69871) |
| Spindle Motor Power | 15 /18.5 opt. 18.5 / 22, 22 / 26 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,000 x 1,000 mm (39.4 x 39.4 in) pallet with a 2,000 kg (4,409 lb) load
- 1,150 mm (45.3 in) of Z travel for through-boring of large parts
- Gear spindle at 6,000 rpm or built-in spindle at 10,000 rpm
- Y travel of 1,000 mm (39.4 in) matches the pallet width
- Servo-driven, base-mounted pallet changer with a 12 sec switching speed
Limitations
- Magazine is 30, 40 or 60 tools; the 90-tool version is listed for the HMC-1000
- The largest motor, 22 / 26 kW (Cont. / 30 min), is the same as on the 630 mm pallet HMC-6
- 2,000 kg (4,409 lb) pallet load is well below the 3,000 kg (6,614 lb) of the HMC-10 Plus
- No rapid traverse, B-axis or maximum swing data on the product page
Best For
Frequently Asked Questions
01
1,000 x 1,000 mm (39.4 x 39.4 in), with a maximum average load of 2,000 kg (4,409 lb). Fixtures and tombstones count toward that figure.
02
X travel is 1,300 mm (51.2 in), Y travel is 1,000 mm (39.4 in) and Z travel is 1,150 mm (45.3 in). The spindle is #50 with BBT50 shanks; CAT50 and DIN69871 are listed as alternatives.
03
In the published tables only by the tool magazine. The HMC-10 lists 30 / 40 / 60 tools and the HMC-1000 lists 40 / 60 / 90. Pallet, load, travels, spindles and motor options are the same.
04
A 6,000 rpm gear-head spindle and a 10,000 rpm built-in spindle. The motor is 15 / 18.5 kW as listed, with 18.5 / 22 kW and 22 / 26 kW as options, all continuous / 30 min ratings.
