Feeler SVW-2217
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
x axis travel
z axis travel
table length
How much does the Feeler SVW-2217 cost?
Price estimate
We do not have a price for the Feeler SVW-2217 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Feeler SVW-2217 opens the 1,400 mm (55.1 in) table width in the SVW series. Its table is 2,000 mm (78.7 in) long, X travel is 2,200 mm (86.6 in), and the load rating is 8 ton.
The SVW-2113 has the same table length and carries 4 ton; this one carries double. The rapids go the other way: 15 m/min (591 ipm) on all three axes here, against 24 m/min on X and Y for the SVW-2113. So the step from the 13 to the 17 group is a step from a quick machine for plates to a heavier one for blocks, and the choice should follow the weight and section of the parts rather than their length.
More tools become available too. The magazine row reads 24 (32/40/60), and the 60-tool option does not exist on the narrower table. For multi-face work on prismatic parts, where roughing and finishing cutters for several faces stay loaded, the larger magazines earn their place. Feeler also offers an optional automatic attachment change system for the series.
Spindle and Z rows are common to the series: 6,000 rpm on a BT/DIN/CAT 50 taper through a two-speed geared drive, with 8,000-15,000 rpm and #40 in brackets, and 800 mm (31.5 in) of Z travel with 1,000 mm (39.4 in) bracketed.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,200 mm (86.6 in) |
| Z Axis Travel | 800 (1,000) mm (31.5 (39.4) in) |
| Table Length | 2,000 mm (78.7 in) |
| Table Width | 1,400 mm (55.1 in) |
| Max Table Load | 8 ton |
| Max Spindle Speed | 6,000 (8,000-15,000) rpm |
| Spindle Taper | BT/DIN/CAT 50 (#40) |
| Rapid Traverse X | 15 m/min (591 ipm) |
| Rapid Traverse Y | 15 m/min (591 ipm) |
| Rapid Traverse Z | 15 m/min (591 ipm) |
| Tool Capacity | 24 (32/40/60) |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 8 ton load on a 2,000 × 1,400 mm (78.7 × 55.1 in) table
- Magazine options up to 60 tools
- Geared two-speed spindle, 6,000 rpm on a 50 taper
- Box-type structure with reinforced ribs, by the maker's description
Limitations
- Rapids are 15 m/min (591 ipm), against 24 m/min on the SVW-2113 X and Y axes
- Shortest table of the 1,400 mm width group
- Y travel, spindle power and torque are not listed on this page
Best For
Frequently Asked Questions
01
Both tables are 2,000 mm long. The SVW-2217 is 1,400 mm wide and rated for 8 ton with 15 m/min rapids; the SVW-2113 is 1,100 mm wide and rated for 4 ton with 24 m/min on X and Y. The SVW-2217 also lists a 60-tool magazine option.
02
24 as listed, with bracketed alternatives of 32, 40 or 60. The 60-tool figure appears from this width class upward; the narrower SVW-2113 stops at 40.
03
800 mm (31.5 in), with 1,000 mm (39.4 in) in brackets as the taller alternative. Z rapid traverse is 15 m/min (591 ipm). The clearance under the spindle nose is not given in the series table.
04
That is how Feeler presents it. The series heading reads Heavy Cutting Machines with Exceptional Rigidity, and the spindle uses a fully geared internal transmission with a two-speed gearbox for high-torque output at low speed. No torque figure is published.
More from Feeler
Other Vertical Machining Centers (VMC)

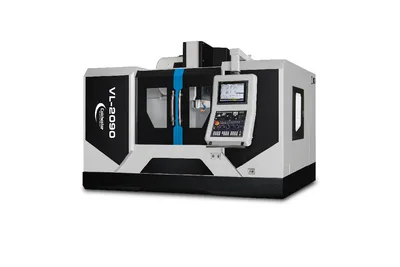

Colchester Storm VL-2090
