Haas Automation Vertical Machining Centers

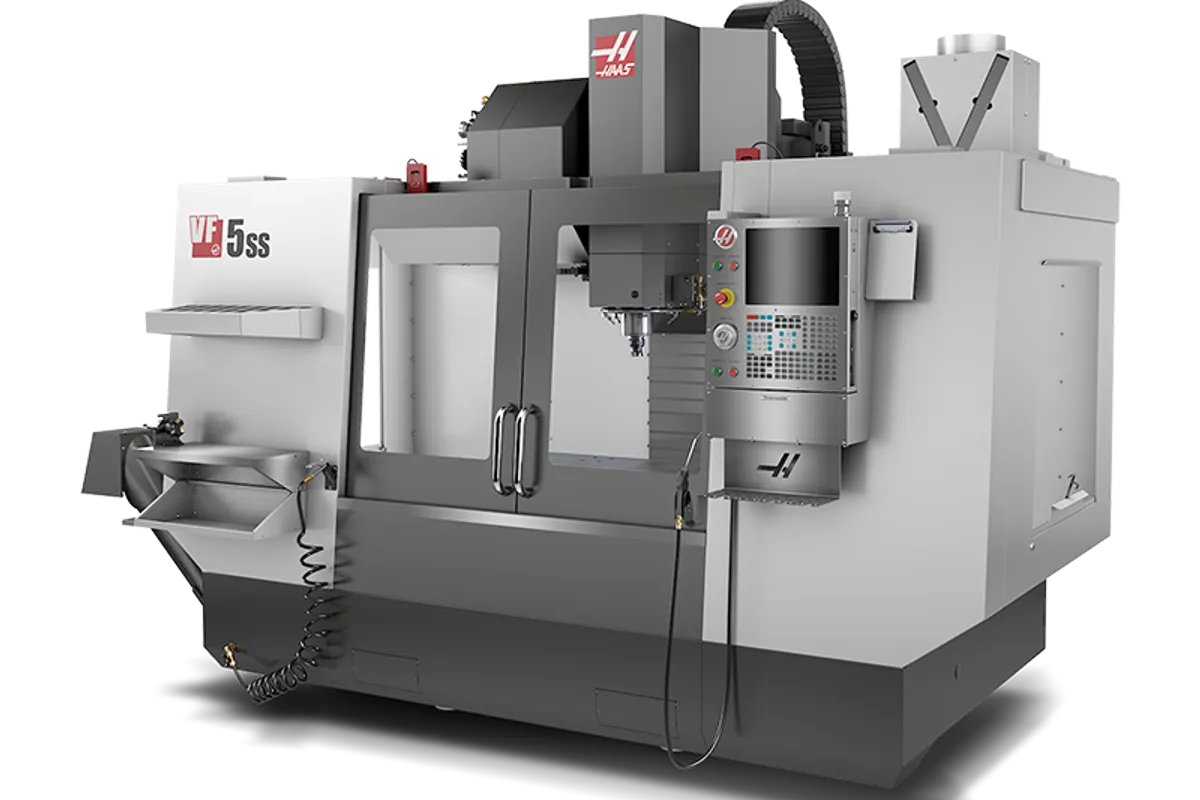

Haas VF-5SS

$108,000 - $145,000 Updated 2026-03-12

Key Specifications

X Travel

1,270 mm (50 in)

Y Travel

660 mm (26 in)

Z Travel

635 mm (25 in)

Max Spindle

12,000 RPM

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

30+1 SMTC

Overview

The Haas VF-5SS is the wide-Y model in the Super Speed lineup, combining 1,270 mm (50 in) of X-travel with 660 mm (26 in) of Y and 635 mm (25 in) of Z. That extra 6 inches of Y over the VF-4SS opens up parts and fixtures that need wider table access, while the 12,000 RPM spindle and high-speed rapids keep cycle times tight.

The spindle is the same 22.4 kW (30 hp) inline direct-drive unit at 12,000 RPM with 122 Nm (90 ft-lbf) of torque at 2,000 RPM, liquid-cooled and accepting CT40, BT40, or HSK-A63 tooling. The 1,372 x 610 mm (54 x 24 in) table is the widest in the medium SS lineup, with 7 T-slots on 80 mm centers and 794 kg (1,750 lb) of load capacity. That 24-inch table width with 7 slots gives you significantly more fixture layout options than the VF-3SS or VF-4SS.

Rapid traverse on the VF-5SS runs at 30.5 m/min (1,200 ipm) on all three axes, slightly slower than the 35.6 m/min (1,400 ipm) on the VF-3SS and VF-4SS. The trade-off is the wider Y-axis saddle and heavier table moving more mass. Max cutting feedrate stays at 21.2 m/min (833 ipm). Axis thrust is 14,902 N (3,350 lbf) on all three axes, which is actually higher on Z than the VF-3SS and VF-4SS.

The SMTC holds 30+1 tools (50+1 optional) with 1.8-second tool-to-tool and 2.4-second chip-to-chip times. The larger table also supports extra-large tools up to 152 mm (6 in) diameter with adjacent pockets empty, compared to the 127 mm (5 in) max on the VF-3SS and VF-4SS. Coolant capacity is 360 L (95 gal), nearly double the VF-3SS and VF-4SS at 208 L.

At 5,761 kg (12,700 lb), the VF-5SS fits between the VF-3SS and VF-4SS in weight. Starting at around $108,000, it actually costs slightly less than the VF-4SS at $115K, which makes the VF-5SS an interesting value proposition for shops that can use the extra Y-travel and wider table. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	1,270 mm (50 in)
Y-Axis Travel	660 mm (26 in)
Z-Axis Travel	635 mm (25 in)
Spindle Nose To Table Max	742 mm (29.2 in)
Spindle Nose To Table Min	107 mm (4.2 in)
Max Spindle Speed	12,000 RPM
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Motor Power	30.0 hp
Spindle Torque Max	122 Nm (90 ft-lbf) @ 2,000 RPM
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Tool Capacity	30+1 SMTC
Tool To Tool	1.80 s
Chip To Chip	2.40 s
Max Tool Diameter	2.5 in
Max Tool Weight	12.0 lb
Max Tool Length	16.00 in
Table Size	1,372 x 610 mm (54 x 24 in)
Table Load Max	794 kg (1,750 lb)
T Slots	7 slots, 80 mm (3.15 in) center distance
Max Cutting Feedrate	21.2 m/min (833 ipm)
Rapid Traverse X	30.5 m/min (1,200 ipm)
Rapid Traverse Y	30.5 m/min (1,200 ipm)
Rapid Traverse Z	30.5 m/min (1,200 ipm)
Max Thrust X	3350 lbf
Max Thrust Y	3350 lbf
Max Thrust Z	3350 lbf
Machine Weight	5,761 kg (12,700 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 70 A
Electrical High	440 VAC 3-phase, 35 A
Travels	S.A.E
X Axis	50.00 in
Y Axis	26.00 in
Z Axis	25.00 in
Spindle Nose To Table	4.2 in
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	12000 rpm
Max Torque	90.0 ft-lbf @ 2000 rpm
Drive System	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection
Cooling	Liquid Cooled
Table	S.A.E
Length	54.0 in
Width	24.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	3.15 in
Number Of Std T Slots	7
Max Weight On Table	1750 lb
Feedrates	S.A.E
Max Cutting	833 ipm
Rapids On X	1200 ipm
Rapids On Y	1200 ipm
Rapids On Z	1200 ipm
Axis Motors	S.A.E
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	5.0 in
Max Tool Diameter Extra Large	6.0 in
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	168.0 in x 101.5 in x 109.0 in
Export Pallet	164.0 in x 91.5 in x 101.0 in
Machine Weight	12700 lb
Domestic Pallet W 501 Smtc	168 in x 102 in x 122 in
Export Pallet W 501 Smtc	164 in x 92 in x 101 in
Weight W 501 Smtc	12700 lb
Haas Rotary	HAAS MACHINE
Ha2ts	VF-5SS
Ha5c	VF-5SS
Ha5c T	VF-5SS
Ha5c2	VF-5SS
Ha5c2 T	VF-5SS
Ha5c3	VF-5SS
Ha5c3 T	VF-5SS
Ha5c4	VF-5SS
Ha5c4 T	VF-5SS
Ha5cs	VF-5SS
Hqda5	VF-5SS
Hrc160	VF-5SS
Hrc210	VF-5SS
Hrt160	VF-5SS
Hrt160 2	VF-5SS
Hrt160sp	VF-5SS
Hrt160ss	VF-5SS
Hrt200hs	VF-5SS
Hrt210	VF-5SS
Hrt210 2	VF-5SS
Hrt210ht	VF-5SS
Hrt210m	VF-5SS
Hrt210sp	VF-5SS
Hrt210ss	VF-5SS
Hrt210vm	VF-5SS
Hrt310	VF-5SS
Hrt310sp	VF-5SS
Hrt310ss	VF-5SS
Hrt450	VF-5SS
Hrta5	VF-5SS
Hrta6	VF-5SS
Lt260	VF-5SS
Lt350	VF-5SS
T5c	VF-5SS
T5c2	VF-5SS
T5c3	VF-5SS
T5c4	VF-5SS
Th240	VF-5SS
Th450	VF-5SS
Tr160	VF-5SS
Tr160 2	VF-5SS
Tr200y	VF-5SS
Tr210	VF-5SS
Tr310	VF-5SS
Trt100	VF-5SS
Trt160	VF-5SS
Trt210	VF-5SS
Trt310	VF-5SS
Trt70	VF-5SS

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

26 inches of Y-travel with a 54 x 24-inch table is the widest in the medium SS lineup, with 7 T-slots for flexible fixturing
12,000 RPM spindle and 30.5 m/min rapids deliver strong high-speed performance for aluminum work
360 L (95 gal) coolant capacity is nearly double the VF-3SS and VF-4SS, supporting longer unattended runs
Costs slightly less than the VF-4SS while offering 6 more inches of Y-travel and a wider table
16-inch max tool length matches standard VF models, longer than the 13-inch limit on VF-3SS/VF-4SS
Equal axis thrust on all three axes at 14,902 N provides balanced cutting capability

Limitations

Rapids at 30.5 m/min (1,200 ipm) are about 15% slower than the VF-3SS and VF-4SS at 1,400 ipm
794 kg (1,750 lb) table load is the same limiting factor as the other SS models
No gearbox option available for heavy-torque steel roughing applications
20 inches of Y-travel on the VF-4SS may be sufficient for many parts, making the wider VF-5SS unnecessary
80mm T-slot spacing differs from standard 125mm spacing on non-SS VF models

Best For

Shops running wide aluminum parts, plates, and multi-cavity setups that need more than 20 inches of Y clearance Aerospace manufacturers machining wider structural panels, ribs, and brackets at high speed Multi-vise production setups where the 24-inch table and 7 T-slots maximize parts per cycle Job shops that want SS speeds with the most flexible fixturing platform in the medium lineup Shops replacing a VF-5 or VF-5XT with a high-speed alternative for aluminum-dominant work

Frequently Asked Questions

01 Why is the VF-5SS cheaper than the VF-4SS?

The VF-5SS is priced at about $108K vs $115K for the VF-4SS. Despite having 6 more inches of Y-travel and a wider table, the VF-5SS uses slightly slower rapids (1,200 vs 1,400 ipm). The pricing likely reflects market positioning and production costs rather than a strict capability hierarchy.

02 How does the VF-5SS compare to the VF-6SS?

The VF-6SS adds 10 more inches of X-travel (60 vs 50 in) and runs 12,000 RPM like all SS models. If your parts fit within 50 inches, the VF-5SS saves money. If you need longer reach with the wider Y-travel, the VF-6SS covers more ground.

03 Can I use the same fixtures from a standard VF-5 on the VF-5SS?

The T-slot spacing differs: 80mm (3.15 in) on the VF-5SS vs. 125mm (4.92 in) on standard VF models. You may need to modify or replace fixtures that rely on specific slot positions. The slot width is the same at 0.626-0.630 inches, so standard T-slot nuts still fit.

04 What makes the VF-5SS different from the VF-5XT?

The VF-5XT is a standard-speed model with extended X-travel, while the VF-5SS is a Super Speed model with 12,000 RPM, faster rapids, and a faster tool changer. They serve different purposes: the XT is for longer parts at standard speeds, the SS is for faster cycle times.
