OKK Corporation Vertical Machining Centers

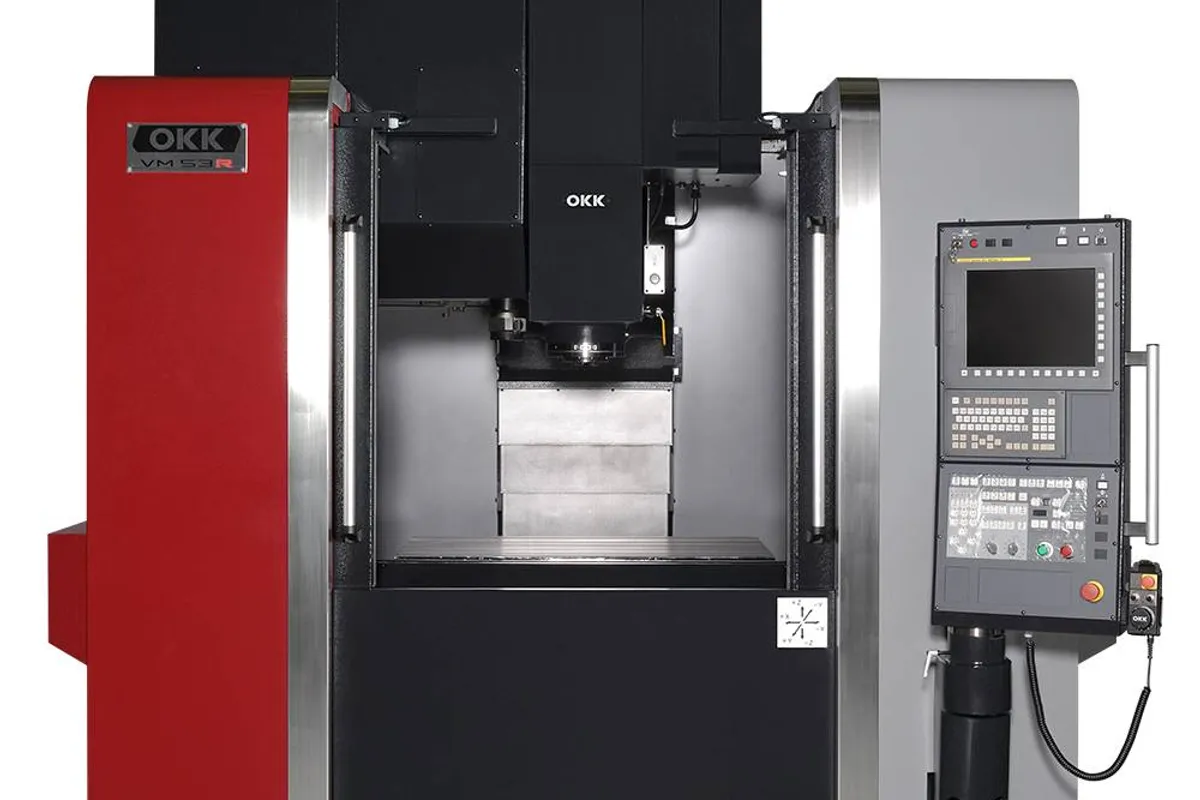

OKK VM53R

$180,000 - $280,000 Updated 2026-03-14

Key Specifications

X Travel

1,050 mm (41.3 in)

Y Travel

530 mm (20.9 in)

Z Travel

510 mm (20.1 in)

Spindle Taper

BT40 (BT50 optional)

Tool Capacity

24 tools (30 or 40 optional)

Table Size

1,200 x 530 mm (47.2 x 20.9 in)

Overview

The OKK VM53R is a rigid, heavy-duty vertical machining center built for shops that need a reliable workhorse for cutting steel, cast iron, and other difficult materials day after day. OKK Corporation, headquartered in Hyogo, Japan, has built machines since 1915 and has developed a reputation among experienced machinists for building VMCs that are overbuilt relative to their size class. The VM53R with 1,050 x 530 x 510 mm (41.3 x 20.9 x 20.1 in) X/Y/Z travel provides a generous working envelope in a mid-size VMC footprint.

The VM53R's defining characteristic is its structural rigidity. OKK uses wide box guideways on the Y and Z axes with roller guideways on the X axis, combining the damping properties of box ways where it matters most (column and headstock) with the speed of roller guides for rapid table movements. The column is a wide, heavily ribbed casting that resists deflection during aggressive side-milling operations — a common failure mode for lighter VMCs. The result is a machine that holds tolerance and surface finish during heavy roughing without the chatter that plagues less rigid platforms.

The BT40 spindle runs to 12,000 rpm with 15 kW (20 HP) of continuous power through a direct-drive motor. A BT50 spindle option is available for shops needing even more rigidity for large-diameter face milling and heavy boring. The 1,200 x 530 mm (47.2 x 20.9 in) table accommodates workpieces up to 1,000 kg (2,205 lb), and the 24-tool ATC (30 or 40 optional) handles standard production tooling requirements. Positioning accuracy is +/-5.0 microns with repeatability of +/-2.0 microns.

The VM53R is not a precision machine in the Yasda or Mitsui Seiki sense — it is a production VMC built for reliability and rigidity in cutting tough materials. OKK machines have a strong following in the die/mold, energy, and heavy equipment manufacturing sectors where machine uptime and cutting capability matter more than sub-micron accuracy. The Fanuc 31i-B control is standard. OKK's North American distribution through Methods Machine Tools provides solid sales and service support.

Full Specifications

Parameter	Value
X-Axis Travel	1,050 mm (41.3 in)
Y-Axis Travel	530 mm (20.9 in)
Z-Axis Travel	510 mm (20.1 in)
Table Size	1,200 x 530 mm (47.2 x 20.9 in)
Max Table Load	1,000 kg (2,205 lb)
Spindle Speed	12,000 rpm (BT40); 8,000 rpm (BT50 option)
Spindle Taper	BT40 (BT50 optional)
Spindle Motor	15 kW (20 HP) continuous
Positioning Accuracy	+/-5.0 um
Repeatability	+/-2.0 um
Rapid Traverse Rate	40 m/min (1,575 ipm) X; 36 m/min Y/Z
Tool Capacity	24 tools (30 or 40 optional)
Guideway Type	Box guideways (Y/Z axes), roller guides (X axis)
CNC Control	Fanuc 31i-B
Machine Weight	8,000 kg (17,637 lb)
Modelvm53rbrandokktypevertical Machining Centerscontrolcontact Sales Rep	Contact Sales Rep.
Modelvm53rbrandokktypevertical Machining Centerscontrol	Contact Sales Rep.
Model	VM53R
Brand	OKK
Type	Vertical Machining Centers
X4134y2087z2008power25 Hp	RPM8,000 RPM# ATC30# Axis3ControlCNC
X	41.34"
Y	20.87"
Z	20.08"
Power	25 hp
Rpm	8,000 RPM
Atc	30
Axis	3
Cnc Control	CNC
Looking To Purchase A New Okk Vm53r	Contact Sales Rep.
Meredith Machinery2600 Technology Drivelouisville Kentucky 40299united States	Eastern CNC, Inc.101 Wilton Ave.Middlesex, New Jersey 08846United States

Specifications sourced from machinetools.com — verified 2026-03-28

Strengths & Limitations

Strengths

Exceptional structural rigidity from wide box guideways on Y/Z and heavily ribbed column casting enables aggressive heavy cutting
Hybrid guideway design combines box way damping on the cutting axes with roller guide speed on the table axis
1,050 mm X-travel provides a generous working envelope in a mid-size VMC footprint for versatile part sizes
OKK's overbuilt construction philosophy means the machine handles years of three-shift production without accuracy degradation
North American distribution through Methods Machine Tools provides accessible sales, service, and applications support
Competitive pricing for the rigidity class — delivers heavy-cutting capability comparable to machines costing significantly more

Limitations

+/-5.0 um positioning accuracy is adequate for production work but insufficient for precision mold finishing applications
12,000 rpm BT40 spindle is capable but not competitive with 15,000-20,000 rpm options from other manufacturers
24-tool standard ATC may require upgrading for complex multi-operation parts
OKK brand recognition in North America is lower than Mazak, Okuma, or Makino, which can affect resale value
8,000 kg machine weight requires proper foundation preparation and limits placement flexibility

Best For

Die and mold shops that prioritize rigidity and cutting performance over speed when roughing and semi-finishing steel and cast iron Energy sector manufacturers machining valve bodies, pump housings, and heavy equipment components Job shops needing a versatile heavy-duty VMC that handles tough materials without chatter or deflection issues Production environments where machine uptime and reliability over many years of three-shift operation are paramount Shops machining large steel and cast iron parts where the 1,050 mm X-travel and 1,000 kg table capacity are essential Any application where cutting rigidity and material removal capability take priority over high-speed finishing

Frequently Asked Questions

01 What does an OKK VM53R cost?

New VM53R machines typically price between $180,000 and $280,000 depending on spindle option, tool capacity, and accessories. This represents strong value for the rigidity class. Used OKK VMCs from the 2010s trade in the $80,000-$150,000 range.

02 Who distributes OKK machines in North America?

Methods Machine Tools is OKK's primary North American distributor, providing sales, applications engineering, service, and spare parts through their nationwide network of technology centers.

03 How does the VM53R compare to a Mazak VTC-530C or Okuma MB-56V?

The OKK VM53R is generally considered more rigid than equivalent Mazak and Okuma models due to its box guideway Y/Z construction and heavier castings. The Mazak and Okuma offer faster rapids, more automation options, and broader dealer networks. Choose the OKK when heavy cutting performance is the top priority.

04 Should I choose the BT40 or BT50 spindle?

Choose BT50 if your primary work involves large-diameter face milling, heavy boring, or cutting steel and cast iron with large tools. Choose BT40 for higher spindle speeds, lighter cuts in aluminum and softer materials, or when standardizing on BT40 tooling across your shop.

05 Is OKK a reliable machine tool builder?

Yes. OKK has been building machine tools in Japan since 1915 — over a century of continuous manufacturing. Their machines are known for longevity and holding accuracy over decades of use. The company may not have the marketing presence of larger brands, but their engineering reputation is well-established among experienced machinists.
