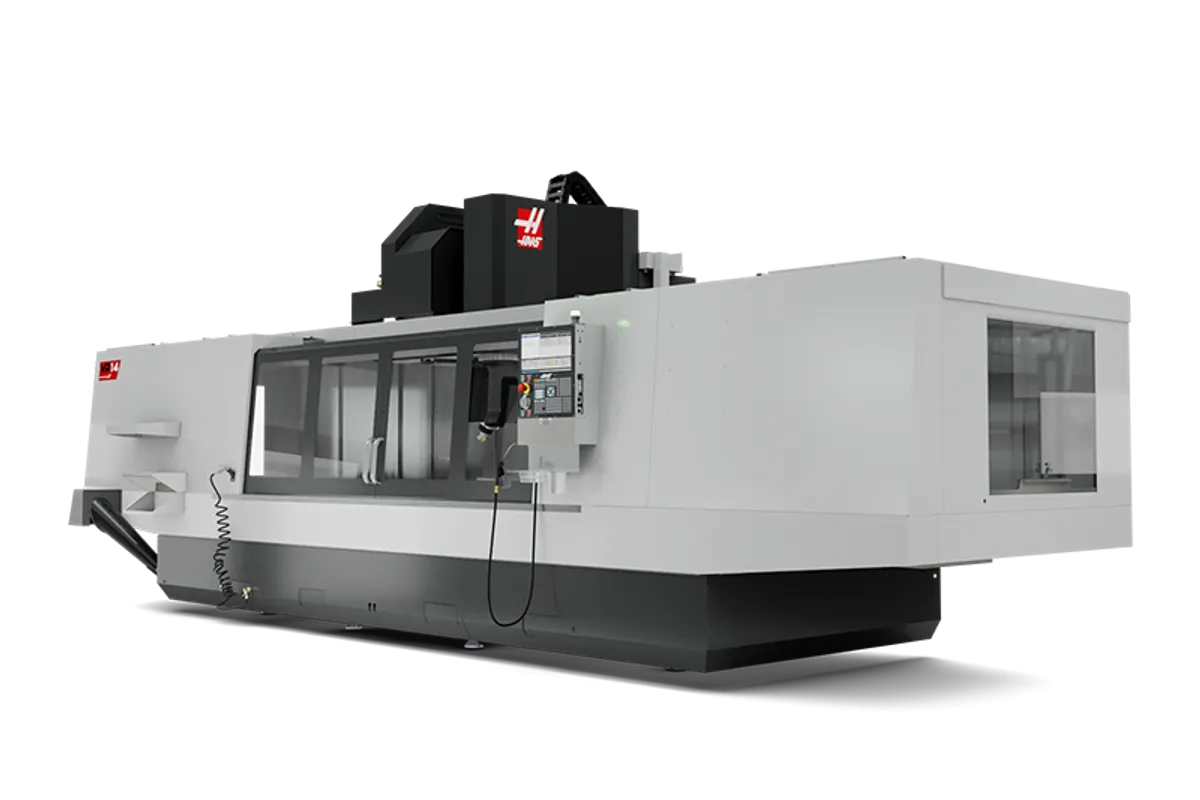

Haas VR-14

$599,000 - $700,000 Updated 2026-03-19

Key Specifications

X Travel

3,556 mm (140 in)

Y Travel

1,524 mm (60 in)

Z Travel

1,067 mm (42 in)

Max Spindle

20,000 RPM

Spindle Taper

HSK-A63

Tool Capacity

50+1 SMTC

Overview

The Haas VR-14 is the largest machine in the VR series of 5-axis gantry-style machining centers, offering an enormous 3,556 x 1,524 x 1,067 mm (140 x 60 x 42 in) work envelope for machining the largest parts that Haas equipment can accommodate. The VR-14 uses the same tilting spindle head design as the VR-8 and VR-11 — a B-axis tilt of +/-120 degrees and C-axis rotation of +/-245 degrees — but extends the X and Y travels dramatically to handle full-size aerospace structural panels, large composite layups, and massive mold surfaces.

The spindle is the same integral spindle/motor design found across the VR series: 20,000 RPM with 21.6 kW (29 hp) and 27 Nm (20 ft-lbf) of torque at 7,500 RPM on an HSK-A63 taper. The liquid-cooled motorized spindle excels at high-speed contouring and finishing of aluminum and composite materials. HSK-A63 provides the runout accuracy and clamping force that 5-axis programs demand.

The B axis delivers 639 Nm (470 ft-lbf) of continuous torque with a 616 Nm (454 ft-lbf) brake, and the C axis provides 386 Nm (285 ft-lbf) continuous with a 600 Nm (442 ft-lbf) brake — identical to the VR-8 and VR-11. The massive table measures 3,556 x 1,524 mm (140 x 60 in) with 13 T-slots and handles up to 4,536 kg (10,000 lb). The 50+1 SMTC comes standard.

Rapid traverse is 15.2 m/min (600 ipm) on all linear axes. At a base price around $599,000, the VR-14 delivers 5-axis gantry-style capability at a fraction of the cost of comparable machines from Jobs, Breton, or DMG Mori. For shops machining very large aerospace panels, marine components, or oversized mold surfaces, the VR-14 provides an entry point to large-format 5-axis that was previously reserved for seven-figure machine investments.

Full Specifications

Parameter	Value
X-Axis Travel	3,556 mm (140 in)
Y-Axis Travel	1,524 mm (60 in)
Z-Axis Travel	1,067 mm (42 in)
Axes	5-axis (X, Y, Z + B tilt + C rotation)
B Axis Travel	+/-120 degrees
B Axis Speed	112 deg/sec
B Axis Torque	639 Nm (470 ft-lbf) continuous
B Axis Brake Torque	616 Nm (454 ft-lbf)
C Axis Travel	+/-245 degrees
C Axis Speed	208 deg/sec
C Axis Torque	386 Nm (285 ft-lbf) continuous
C Axis Brake Torque	600 Nm (442 ft-lbf)
Max Spindle Speed	20,000 RPM
Spindle Taper	HSK-A63
Spindle Motor Power	29.0 hp
Spindle Torque Max	27 Nm (20 ft-lbf) @ 7,500 RPM
Spindle Drive	Integral Spindle/Motor
Spindle Cooling	Liquid Cooled
Tool Capacity	50+1 SMTC
Tool To Tool	2.80 s
Chip To Chip	3.60 s
Max Tool Diameter	2.5 in
Max Tool Weight	12.0 lb
Table Size	3,556 x 1,524 mm (140 x 60 in)
Table Load Max	4,536 kg (10,000 lb)
T Slots	13 slots, 125 mm (4.92 in) center distance
Max Cutting Feedrate	12.7 m/min (500 ipm)
Rapid Traverse X	15.2 m/min (600 ipm)
Rapid Traverse Y	15.2 m/min (600 ipm)
Rapid Traverse Z	15.2 m/min (600 ipm)
Machine Weight	22,226 kg (49,000 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Travels	S.A.E
X Axis	150.00 in
Y Axis	40.00 in
Z Axis	42.00 in
Spindle	S.A.E
Max Rating	29.0 hp
Max Speed	208 °/sec
Max Torque	20.0 ft-lbf @ 7500 rpm
Drive System	Integral Spindle/Motor
Taper	HSK-A63
Bearing Lubrication	Grease Packed
Cooling	Liquid Cooled
B Axis Tilt	S.A.E
Travel	245 ° to 245- °
Torque	285 ft-lbf
Brake Torque	442 ft-lbf
C Axis Rotation	S.A.E
Table	S.A.E
Length	150.0 in
Width	28.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	4.92 in
Number Of Std T Slots	5
Max Weight On Table	4000 lb
Feedrates	S.A.E
Max Cutting	360 ipm
Rapids On X	360 ipm
Rapids On Y	600 ipm
Rapids On Z	600 ipm
Axis Motors	S.A.E
Max Thrust X	3400 lbf
Max Thrust Y	3400 lbf
Max Thrust Z	5600 lbf
Tool Changer	S.A.E
Type	SMTC
Capacity	50+1
Max Tool Diameter Large	5.0 in
Max Tool Length	12.00 in
General	S.A.E
Air Requirements	S.A.E
Air Required	4 scfm @ 100 psi
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	344.0 in x 120.0 in x 140.0 in
Export Crate	344.0 in x 122.0 in x 142.0 in
Machine Weight	33400 lb
Symptom	Possible Cause
Coolant Has Filled Up Inside The Clamping Unit	TSC was run. The tool holder had a coolant tube installed. The tool was not a TSC tool.
Tsc Was Run A Coolant Tube Was Not Installed In The Tool Holder	Clean and lubricate the entire clamping unit.
Tsc Was Run A Correct Tool Holder And Tool Were Used The Lip Seal Is Damaged	Replace the lip seal. Clean and lubricate the entire clamping unit.
The Coolant Tube Is Loose In The Tool Holder Or The O Ring In The Coolant Tube Had Failed	Tighten the coolant tube, replace the o-ring as needed. Clean and lubricate the entire clamping unit.
The Clamping Cone Locking Screw Is Difficult To Tighten Or Loosen While Setting Pushout	The locking screw is installed backwards.
The Hex In The Locking Screw Is Damaged	Remove the clamping cone. Remove the locking screw and replace it. Install the clamping cone and set pushout.
Clamp Force Is Low	Clamp force gauge is not set up properly or is malfunctioning.
Pushout Is Incorrect	Adjust clamping cone positon to obtain the correct pushout distance.
Lubrication Is Failing	Lubricate the clamping unit gripper fingers and clamping cone.
Clamping Unit Components Are Worn	If pushout and lubrication are correct, inspect the clamping cone and gripper fingers for wear. Replace as needed.
Drawbar Springs Have Failed	This is very unlikely. Do not assume this is the cause unless all other solutions have failed.
Tool Holders Are Hard To Remove From The Taper	Pushout is set too low. (When pushout is set too low clamp force may measure very high).
Z Axis Position Accuracy Is Inconsistent After Using A Probing System	The tool probe was not seated correctly.
Item	HAAS P/N

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

3,556 x 1,524 mm (140 x 60 in) work envelope is the largest in the Haas lineup — handles full-size aerospace panels and oversized molds
Full 5-axis capability with tilting spindle head covers +/-120 degrees B and +/-245 degrees C for simultaneous 5-axis work
20,000 RPM HSK-A63 spindle provides excellent high-speed finishing for aluminum and composite machining
10,000 lb table load capacity handles large, heavy workpieces without compromise
50+1 SMTC standard eliminates tool changer upgrade costs on complex programs
Base price around $599K is roughly one-third to one-half the cost of comparable European large-format 5-axis gantry machines

Limitations

27 Nm of spindle torque limits heavy roughing — the 20,000 RPM spindle is optimized for finishing, not hogging
600 ipm rapids across the massive 140-inch envelope mean very significant non-cutting positioning time
49,000 lb machine weight requires extensive foundation engineering and specialized rigging
NGC control for 5-axis is functional but lacks the advanced RTCP and kinematics features of Siemens or Heidenhain
Gantry-style tilting head design is less rigid than trunnion-style for heavy cuts on small parts

Best For

Aerospace manufacturers machining full-size aluminum structural panels, wing skins, and bulkheads Large mold and die shops producing oversized automotive body panel molds and trim dies Composite trimming and machining for aerospace and marine applications on parts exceeding 100 inches Pattern and model shops working on very large one-off pieces with complex 5-axis geometry Marine manufacturers machining large hull components, propeller molds, and structural elements

Frequently Asked Questions

01 What does a Haas VR-14 cost?

Base price is approximately $599,000 with the 50+1 SMTC included. With through-spindle coolant, probing, and options, expect $650,000-$700,000. This is roughly one-third the price of comparable European 5-axis gantry machines.

02 How does the VR-14 compare to the VR-11 and VR-8?

All three share the same spindle, rotary axes, and Z travel. The VR-8 has 64" X and 40" Y travel, the VR-11 extends to 120" X and 60" Y, and the VR-14 provides 140" X and 60" Y. The VR-14 weighs 49,000 lb versus 31,900 lb (VR-11) and 24,800 lb (VR-8).

03 Can the VR-14 rough steel and titanium?

The 20,000 RPM spindle with 27 Nm of torque is designed for high-speed finishing, not heavy roughing. For steel and titanium roughing, keep passes light or rough on a separate 3-axis machine and finish on the VR-14. The VR-14 excels at aluminum and composite machining where spindle speed matters more than torque.

04 What foundation does the VR-14 require?

At 49,000 lb, the VR-14 requires a heavily reinforced concrete foundation engineered for the combined static and dynamic loads. Consult Haas installation drawings for exact anchor patterns, utility locations, and minimum floor thickness requirements. A structural engineer should verify soil and floor capacity.
