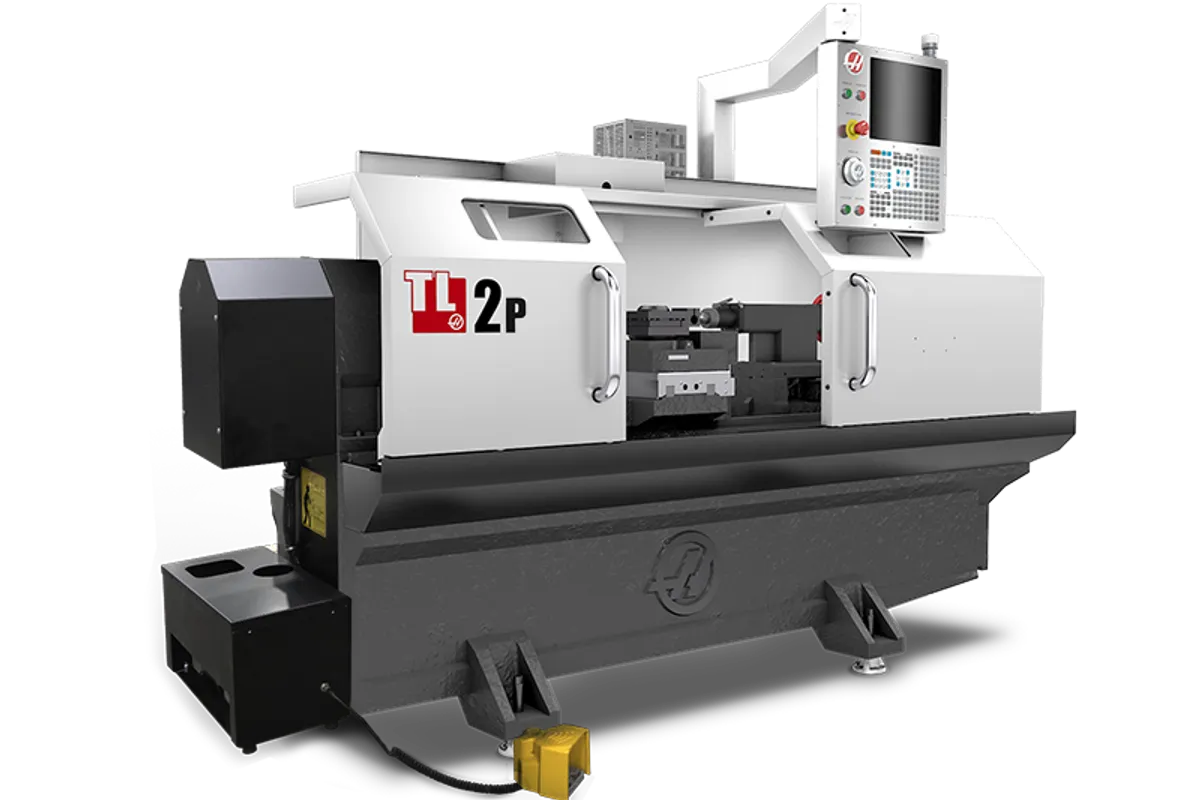

Haas TL-2P
Image: haascnc.com, Haas Automation
Key Specifications
X Travel
Z Travel
Max Spindle
Rapid Traverse
Spindle Power
Max Turn Length
How much does the Haas TL-2P cost?
Manufacturer list price
As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.
Overview
The Haas TL-2P combines the two variations in the TL family: the 48 in (1,219 mm) bed of the TL-2 and the 3,000 rpm spindle and 6.5 in (165 mm) chuck of the TL-1P. Maximum turning diameter is 8 in (203 mm), and X travel is 8 in as well.
Against the TL-2, the turning diameter is halved, from 16 in (406 mm) to 8 in, and the top speed rises from 1,800 rpm to 3,000 rpm. Against the TL-1P, the only headline change is Z travel: 48 in instead of 30 in (762 mm). Torque does not change across the group. All of them list 108 ft-lbf (146 N·m) at 355 rpm, here from a 10 hp (7.5 kW) belt-driven spindle on an A2-5 nose.
That makes this a machine for long, small-diameter parts: shafts, pins, rods and tube. Two cautions follow from the figures. High spindle speed and long unsupported length do not go together, so the 3,000 rpm is for short stick-out or well-supported work. And the chuck sets the stock size, not the 2.3 in (58.4 mm) spindle bore: the chuck throat is 1.81 in (46 mm) across and 3.1 in (78.7 mm) deep, and the drawbar bore is 1.03 in (26.2 mm) across and 4.91 in (124.7 mm) deep.
Swing is 20 in (508 mm) over the front apron and 11 in (279 mm) over the cross slide, both above the 8 in turning diameter, so clearance over the slide is not the constraint it is on the larger-diameter models. Axis thrust is 3,894 lbf (17,321 N) on X and 1,947 lbf (8,661 N) on Z, and rapids are 450 ipm (11.4 m/min).
It ships at 4,480 lb (2,032 kg) on a 108.5 × 68.5 × 83 in (276 × 174 × 211 cm) pallet, or at 5,380 lb (2,440 kg) on a 135 × 70 × 83 in (342 × 178 × 211 cm) pallet with the conveyor option. Single-phase 220 VAC at 40 A is one of three supply choices. Haas's starting price is US$56,995.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Front Apron | 20 in (508 mm) |
| Swing Over Cross Slide | 11 in (279 mm) |
| Chuck Size | 6.5 in (165 mm) |
| Max Turning Diameter | 8 in (203 mm) |
| Max Turning Length | 48 in (1,219 mm) |
| Distance Between Centers | 48 in (1,219 mm) |
| X-Axis Travel | 8 in (203 mm) |
| Z-Axis Travel | 48 in (1,219 mm) |
| Rapid Traverse Rate | 450 ipm (11.4 m/min) |
| Max Thrust X | 3,894 lbf (17,321 N) |
| Max Thrust Z | 1,947 lbf (8,661 N) |
| Spindle Nose | A2-5 |
| Spindle Drive | Direct Speed, Belt Drive |
| Spindle Motor Power | 10 hp (7.5 kW) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Torque | 108 ft-lbf @ 355 rpm (146 N·m @ 355 rpm) |
| Spindle Chuck Throat | Ø 1.81 in × 3.1 in DEEP (Ø 46 mm × 78.7 mm DEEP) |
| Spindle Drawbar Bore | Ø 1.03 in × 4.91 in DEEP (Ø 26.2 mm × 124.7 mm DEEP) |
| Spindle Bore | 2.3 in (58.4 mm) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Single Phase | 220 VAC 1-phase, 40 A |
| Electrical Service (low voltage) | 220 VAC 3-phase, 25 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 13 A |
| Shipping Domestic Pallet | 108.5 × 68.5 × 83 in (276 × 174 × 211 cm) |
| Shipping Export Pallet | 108.5 × 68.5 × 83 in (276 × 174 × 211 cm) |
| Machine Weight | 4,480 lb (2,032 kg) |
| Shipping Domestic Pallet with Conveyor | 135 × 70 × 83 in (342 × 178 × 211 cm) |
| Shipping Export Pallet with Conveyor | 135 × 70 × 83 in (342 × 178 × 211 cm) |
| Machine Weight with Conveyor | 5,380 lb (2,440 kg) |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 3,000 rpm spindle speed combined with 48 in (1,219 mm) between centers
- A 6.5 in (165 mm) chuck is part of the listed specification
- Swing of 20 in (508 mm) over the apron and 11 in (279 mm) over the cross slide leaves room around an 8 in (203 mm) part
- Three supply choices, including 220 VAC single-phase at 40 A
- Same 108 ft-lbf (146 N·m) at 355 rpm as the TL-2, with a higher top speed
Limitations
- Turning diameter is 8 in (203 mm); the TL-2 turns 16 in (406 mm)
- Drawbar bore of 1.03 in (26.2 mm) limits bar fed through the chuck
- 10 hp (7.5 kW) belt-driven spindle with no gearbox figure in the table
- Z thrust is 1,947 lbf (8,661 N), which limits feed force on long cuts and drilling
Best For
Frequently Asked Questions
01
The TL-2 has a 16 in (406 mm) maximum turning diameter and a 1,800 rpm spindle. The TL-2P has an 8 in (203 mm) maximum turning diameter, a 3,000 rpm spindle and a 6.5 in (165 mm) chuck in its table. Z travel of 48 in (1,219 mm), X travel of 8 in, the 10 hp (7.5 kW) rating and 108 ft-lbf (146 N·m) at 355 rpm are the same.
02
Bed length. The TL-1P has 30 in (762 mm) of Z travel and the TL-2P has 48 in (1,219 mm). Both are listed with a 6.5 in (165 mm) chuck, an 8 in (203 mm) maximum turning diameter, a 3,000 rpm top speed and 108 ft-lbf (146 N·m) at 355 rpm.
03
The chuck is 6.5 in (165 mm). Its throat is 1.81 in (46 mm) in diameter and 3.1 in (78.7 mm) deep; the drawbar bore is 1.03 in (26.2 mm) in diameter and 4.91 in (124.7 mm) deep. The spindle bore behind them is 2.3 in (58.4 mm). Check bar and tube sizes against the throat and drawbar figures, not the spindle bore.
04
The listed weight is 4,480 lb (2,032 kg) on a pallet of 108.5 × 68.5 × 83 in (276 × 174 × 211 cm). With the conveyor option it is 5,380 lb (2,440 kg) on a pallet of 135 × 70 × 83 in (342 × 178 × 211 cm). Domestic and export pallets are the same size.
05
The table gives 220 VAC single-phase at 40 A, 220 VAC three-phase at 25 A and 440 VAC three-phase at 13 A as the choices. Air must be supplied at 80 psi (5.5 bar) or more, and the hose and coupler size is 3/8 in.
Videos

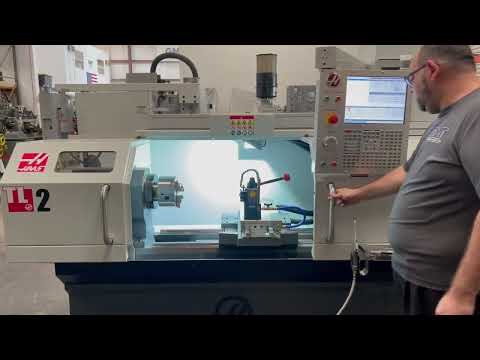

GENERATION MACHINE TOOLS
