Haas ST-45S

List US$162,995 Specs verified 2026-10-02 · haascnc.com Updated 2026-10-02

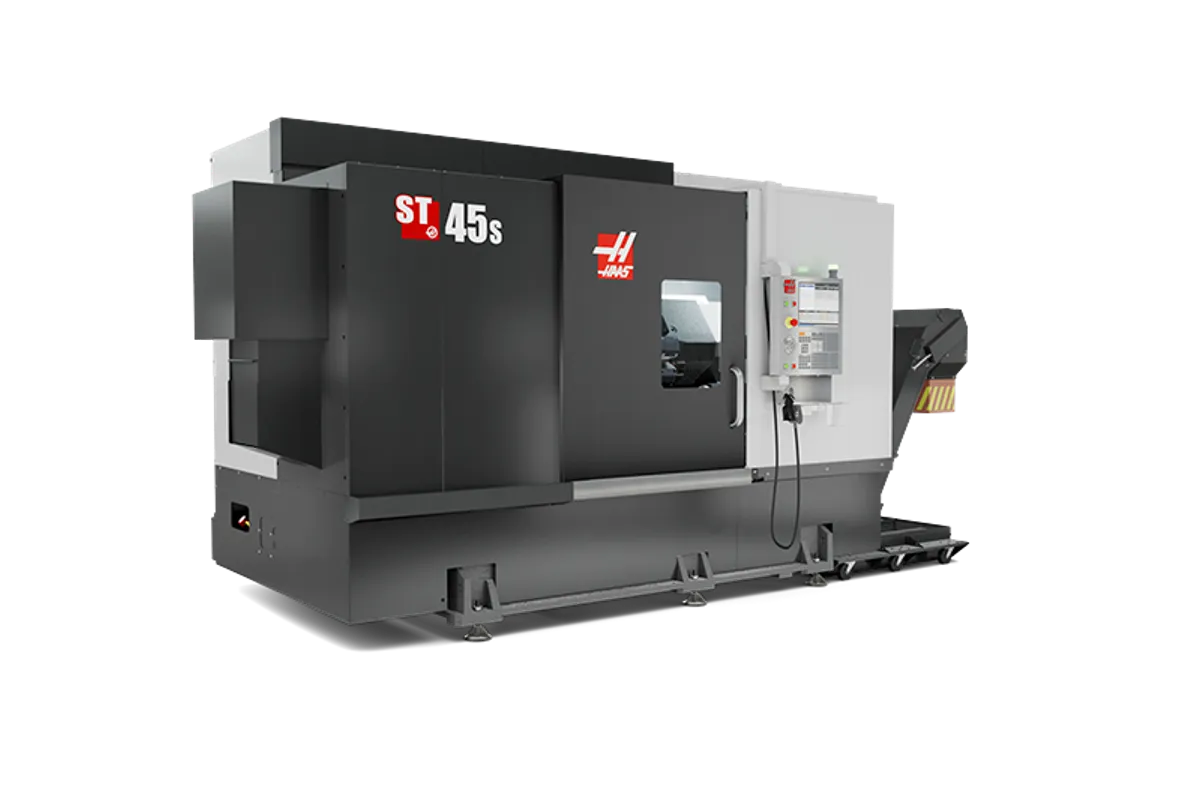

Image: haascnc.com, Haas Automation

Key Specifications

X Travel

20 in (508 mm)

Z Travel

28 in (711 mm)

Max Spindle

1,400 rpm

Rapid Traverse

710 ipm (18 m/min)

Spindle Power

40 hp (29.8 kW)

Max Turn Length

28 in (711 mm)

How much does the Haas ST-45S cost?

Manufacturer list price

US$162,995

As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.

Overview

The Haas ST-45S is a large-bore two-axis lathe on a short bed: 28 in (711 mm) of Z travel and turning length, a 30 in (762 mm) maximum turning diameter and a 7 in (178 mm) spindle bore behind an A2-11 nose. The spindle is rated 40 hp (29.8 kW) through a 2-speed gearbox, with 1,400 ft-lbf (1,898 N·m) at 150 rpm and a top speed of 1,400 rpm.

The ST-40S is the nearest relative, and the two share almost everything except the spindle. The ST-40S has the same 20 in (508 mm) of X travel, 28 in of Z, 35.5 in (902 mm) swing, 40 hp rating and 20,400 lb (9,253 kg) shipping weight, but an A2-8 nose, a 4.62 in (117.3 mm) bore and 2,400 rpm. The ST-45S bore is about 52% larger than the ST-40S bore, and the speed ceiling comes down to pay for it. Small-diameter work that needs rpm belongs on the other machine; large tube, pipe and hollow forgings belong here.

Workholding is not settled by the table. An 18 in (457 mm) chuck is listed as an option, and the kit rows for it give a 6.5 in (165 mm) draw tube bore and a 1,400 rpm limit. Bar capacity is therefore 6.5 in with optional workholding, not the full 7 in of the spindle.

The turret is a 12-station BOT type that takes OD and ID tools in any combination, with 4.5 in (114 mm) of rear clearance for boring bars. With a BMT75 turret the table gives a 27.5 in (699 mm) turning diameter instead of 30 in. The MT5 tailstock travels 26 in (660 mm) and applies between 200 lbf (890 N) and 3,000 lbf (13,345 N). Axis thrust is 5,500 lbf (24,465 N) on X and 9,000 lbf (40,034 N) on Z.

An XP option raises the spindle to 55 hp (41 kW) and 2,100 ft-lbf (2,847 N·m) at 150 rpm, 50% more torque at the same 1,400 rpm limit. It also raises the supply from 70 A to 105 A at 220 VAC, or from 35 A to 53 A at 440 VAC. Haas's starting price is US$162,995.

Full Specifications

Parameter	Value
Chuck Optional	18 in (457 mm)
Max Swing	35.5 in (902 mm)
Max Turning Diameter	30 in (762 mm)
Max Turning Diameter with Bmt75 Turret	27.5 in (699 mm)
Max Turning Length	28 in (711 mm)
Bar Capacity with Opt Workholding	6.5 in (165 mm)
X-Axis Travel	20 in (508 mm)
Z-Axis Travel	28 in (711 mm)
Rapid Traverse Rate	710 ipm (18 m/min)
Max Thrust X	5,500 lbf (24,465 N)
Max Thrust Z	9,000 lbf (40,034 N)
Spindle Nose	A2-11
Spindle Drive	2-Speed Gearbox
Spindle Motor Power	40 hp (29.8 kW)
Max Spindle Speed	1,400 rpm
Spindle Torque	1,400 ft-lbf @ 150 rpm (1,898 N·m @ 150 rpm)
Spindle Bore	7 in (178 mm)
Xp Option Drive System	2-Speed Gearbox
Xp Option Max Rating	55 hp (41 kW)
Xp Option Max Speed	1,400 rpm
Xp Option Max Torque	2,100 ft-lbf @ 150 rpm (2,847 N·m @ 150 rpm)
Xp Option Input AC Voltage Low	220 VAC
Xp Option Full Load Amps Low	105 A
Xp Option Input AC Voltage High	440 VAC
Xp Option Full Load Amps High	53 A
Pc18kit Chuck Size	18 in (457 mm)
Pc18kit Max Speed	1,400 rpm
Pc18kit Draw Tube Bore	6.5 in (165 mm)
Tailstock Taper	MT5
Tailstock Travel	26 in (660 mm)
Tailstock Max Thrust Acme	3,000 lbf (13,345 N)
Tailstock Min Thrust Acme	200 lbf (890 N)
Turret Stations	12-Station BOT
Turret OD Vs ID Tools	Any Combination (will vary with turret)
Turret Boring Bar Rear Clearance	4.5 in (114 mm)
Turret Tooling	BOT
Coolant Capacity	95 gal (360 L)
Air Required	4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose	3/8 in
Air Coupler	3/8 in
Air Pressure Min	80 psi (5.5 bar)
Electrical Service (low voltage)	220 VAC 3-phase, 70 A
Electrical Service (high voltage)	440 VAC 3-phase, 35 A
Shipping Domestic Pallet	216.5 × 94.5 × 116 in (550 × 240 × 295 cm)
Shipping Export Crate	216.5 × 96 × 120 in (550 × 244 × 305 cm)
Machine Weight	20,400 lb (9,253 kg)

Specifications sourced from haascnc.com — verified 2026-10-02

Strengths & Limitations

Strengths

7 in (178 mm) spindle bore on an A2-11 nose, against 4.62 in (117.3 mm) on the ST-40S
1,400 ft-lbf (1,898 N·m) at 150 rpm from a 40 hp (29.8 kW) spindle with a 2-speed gearbox
30 in (762 mm) maximum turning diameter and 35.5 in (902 mm) swing with 28 in (711 mm) of Z travel
Thrust of 9,000 lbf (40,034 N) on Z and 5,500 lbf (24,465 N) on X for heavy roughing and drilling
XP option lifts the spindle to 55 hp (41 kW) and 2,100 ft-lbf (2,847 N·m) at 150 rpm
MT5 tailstock with 26 in (660 mm) of travel and up to 3,000 lbf (13,345 N) of thrust

Limitations

Top speed is 1,400 rpm, against 2,400 rpm on the ST-40S, which holds back surface speed on small diameters
The chuck is listed as an option, and the 6.5 in (165 mm) bar capacity depends on optional workholding
Turning length is 28 in (711 mm); the ST-40 has 44 in (1,118 mm) on the same X travel
The table gives X and Z travel only, with no live-tool or C-axis figures
The XP option needs 105 A at 220 VAC or 53 A at 440 VAC, up from 70 A or 35 A

Best For

Large tube, pipe and coupling work through a 7 in (178 mm) spindle bore Bar up to 6.5 in (165 mm) with the optional workholding Short, heavy chucking parts up to 30 in (762 mm) in diameter Low-speed roughing that uses 1,400 ft-lbf (1,898 N·m) at 150 rpm

Frequently Asked Questions

01 What is the difference between the ST-45S and the ST-40S?

The spindle. Both machines have 20 in (508 mm) of X travel, 28 in (711 mm) of Z travel, a 30 in (762 mm) maximum turning diameter and a 40 hp (29.8 kW) spindle rated 1,400 ft-lbf (1,898 N·m) at 150 rpm. The ST-40S has an A2-8 nose, a 4.62 in (117.3 mm) bore and a 2,400 rpm top speed. The ST-45S has an A2-11 nose, a 7 in (178 mm) bore and a 1,400 rpm top speed.

02 What bar size can the ST-45S take?

Bar capacity is 6.5 in (165 mm) with optional workholding. The spindle bore itself is 7 in (178 mm), but the 18 in (457 mm) chuck kit listed as an option has a 6.5 in draw tube bore, and that is the figure that limits stock passing through the chuck. The kit is rated to 1,400 rpm, the same as the spindle.

03 What does the XP option change on the ST-45S?

It raises the spindle rating from 40 hp (29.8 kW) to 55 hp (41 kW) and peak torque from 1,400 ft-lbf (1,898 N·m) to 2,100 ft-lbf (2,847 N·m), both at 150 rpm. Maximum speed stays at 1,400 rpm and the drive is still a 2-speed gearbox. Full-load current rises to 105 A at 220 VAC or 53 A at 440 VAC.

04 What power and air supply does the ST-45S need?

The base machine needs 220 VAC three-phase at 70 A or 440 VAC three-phase at 35 A. Air consumption is 4 scfm at 100 psi (113 L/min at 6.9 bar), with a minimum supply pressure of 80 psi (5.5 bar) through a 3/8 in hose and coupler. Coolant capacity is 95 gal (360 L).

05 How large is the ST-45S for shipping?

Haas lists a shipping weight of 20,400 lb (9,253 kg). The domestic pallet is 216.5 × 94.5 × 116 in (550 × 240 × 295 cm) and the export crate is 216.5 × 96 × 120 in (550 × 244 × 305 cm). These are shipping dimensions, not the installed floor space, so ask for the layout drawing before deciding where the machine goes.
