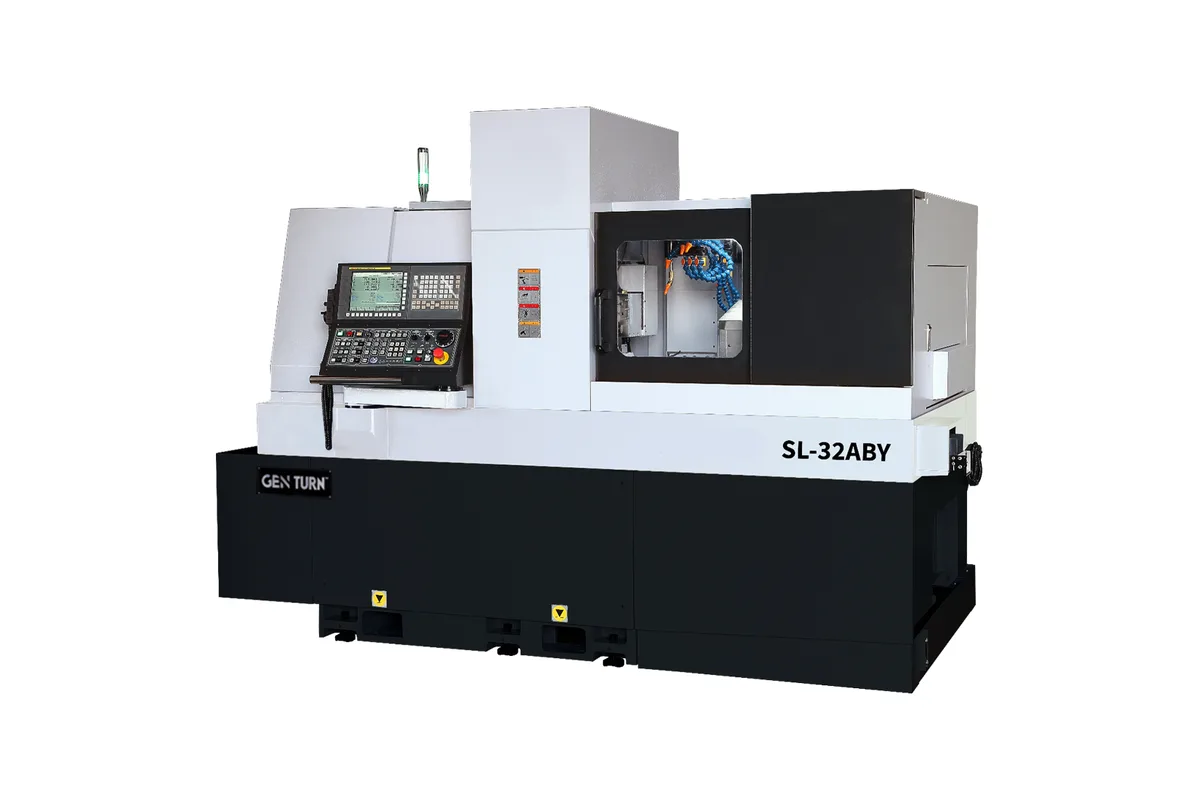

Ganesh GEN TURN SL-32ABY

Q: How much does the Ganesh GEN TURN SL-32ABY cost?

The price estimate for the Ganesh GEN TURN SL-32ABY is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ganesh-gen-turn-sl-32aby#price; the request is passed to Ganesh or an authorised dealer.

Specs verified 2026-10-04 · expandmachinery.com Updated 2026-10-04

Image: expandmachinery.com, Ganesh

Key Specifications

Max Spindle

6,000 rpm, integral spindle motor, full C axis

Rapid Traverse

1,181 ipm (30 m/min) X1, Y1, Z1, X2, Y2, Z2

Spindle Power

7.5 HP 15-minute duty rated (3.5 HP constant duty rated); 2.5 / 5.5 kW

Max Turn Length

10.23 in (260 mm) single stroke with rotary guide bushing; 3.93 in (100 mm) without bushing

bar capacity

1.259 in (32 mm)

bar diameter without guide bushing

1/4 - 1.259 in (5 - 32 mm)

How much does the Ganesh GEN TURN SL-32ABY cost?

Price estimate

Uncertain

We do not have a price for the Ganesh GEN TURN SL-32ABY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A programmable B axis is what separates the GEN TURN SL-32ABY from the other hybrid Swiss machines in the range. Four ER-16 live tools sit on a swivelling unit that Expand Machinery describes as fully programmable. They run at up to 5,000 rpm and work on both the main and the sub-spindle. Angled holes and features that would need special angled holders on a fixed tool post are cut with standard tools here.

The machine takes 1.259 in (32 mm) bar. Both spindles are integral-motor units with a full C axis, each rated 7.5 HP on the 15-minute duty rating and 3.5 HP constant duty at up to 6,000 rpm. A TD32S rotary guide bushing gives 10.23 in (260 mm) of turning length in one stroke. Without the bushing the figure is 3.93 in (100 mm), and bar from 1/4 in up can be run.

Tool count is high. The maker gives 20 available tools for the main spindle and 21 for the sub-spindle, with 13 live tools for the main spindle. In the table the main side has turning holders of 16 mm (5/8 in), internal bores and deep-hole bores of 25 mm, and 3 ER-16 cross spindles at 8,000 rpm besides the B-axis unit. The sub-spindle side adds its own turning holders, 4 ER-16 cross spindles and 5 ER-11 axial live tools, all at 8,000 rpm.

Rapids are 1,181 ipm (30 m/min) on all six linear axes, quicker than the 944 ipm (24 m/min) of the GEN TURN SL-42Y2. The control is a Mitsubishi M830 with a 15 in screen. Plan for cutting oil only in a 106 gallon (401 L) tank, a footprint of 122 x 81 x 83 in (3,108 x 2,046 x 2,100 mm) before the chip conveyor, and 10,960 lb (4,970 kg) on the floor.

Full Specifications

Parameter	Value
Bar Capacity	1.259 in (32 mm)
Bar Diameter Without Guide Bushing	1/4 - 1.259 in (5 - 32 mm)
Max Spindle Speed	6,000 rpm, integral spindle motor, full C axis
Spindle Motor Power	7.5 HP 15-minute duty rated (3.5 HP constant duty rated); 2.5 / 5.5 kW
Collet Style	TF 37
Collet Closer	Hydraulic cylinder for main and sub spindle
Guide Bushing	TD32S
Max Turning Length	10.23 in (260 mm) single stroke with rotary guide bushing; 3.93 in (100 mm) without bushing
OD Turning Tools	6 square shank tool holders, 16 mm (5/8 in) (S1)
ID Tool Holders	5 round tool sleeve bores, 25 mm shank (S1)
Deep Hole Drill Positions	2 round tool sleeve deep-hole drilling bores, 25 mm shank (S1)
Cross Live Tools	3 ER-16 collet chuck spindles, 8,000 rpm (S1)
B Axis Tooling	4 ER-16 live tools, maximum speed 5,000 rpm; works on both main and sub spindle
Drilling Tapping Capacity	13 mm drilling / M10 tapping
Cross Drilling Tapping Capacity	10 mm drilling / M8 tapping (option)
Sub Spindle Speed	6,000 rpm, integral spindle motor, full C axis
Sub Spindle Power	7.5 HP 15-minute duty rated (3.5 HP constant duty rated); 2.5 / 5.5 kW
Sub Spindle Bar Capacity	1.259 in (32 mm)
Sub Spindle OD Tools	4 square shank turning tool holders, 16 mm (5/8 in) (S2)
Sub Spindle Cross Live Tools	4 ER-16 collet chuck spindles, 8,000 rpm (S2)
Sub Spindle Axial Live Tools	5 ER-11 live tools, 8,000 rpm (S2, backside of main spindle axial tools)
Sub Spindle Drilling Tapping Capacity	10 mm drilling / M8 tapping
Rapid Traverse Rate	1,181 ipm (30 m/min) X1, Y1, Z1, X2, Y2, Z2
Axis Motor Power	X1, X2 2 HP (1.4 kW); Y1, Y2 2.1 HP (1.6 kW); Z1, Z2 3.3 HP (2.5 kW); B axis 3.3 HP (2.5 kW)
Machine Weight	10,960 lb (4,970 kg)
Machine Dimensions	122 x 81 x 83 in (3,108 x 2,046 x 2,100 mm) L x W x H, add for chip conveyor
Coolant Pump	1-3/4 HP (1.3 kW) with flow confirmation monitor
Coolant Tank Capacity	106 gallons (401 L), cutting oil only
Power Requirement	220 VAC ±5%, 80 amps, 30 kVA, 3-phase, 60 Hz
Air Requirement	85 psi at 6 cfm
CNC Control	Mitsubishi M830 with 15 in screen

Specifications sourced from expandmachinery.com — verified 2026-10-04

Strengths & Limitations

Strengths

4 ER-16 live tools on a programmable B axis, usable on both the main and the sub-spindle, at up to 5,000 rpm
Integral-motor spindles with full C axis, 7.5 HP 15-minute rated, on both sides
ER-16 cross spindles and ER-11 axial live tools run at 8,000 rpm
1,181 ipm (30 m/min) rapids on all six linear axes
Mitsubishi M830 control with a 15 in screen

Limitations

Bar capacity is 1.259 in (32 mm); larger bar needs the GEN TURN SL-42Y2
Constant-duty spindle rating is 3.5 HP
B-axis tools are limited to 5,000 rpm, below the 8,000 rpm of the cross spindles
Cutting oil only, in a 106 gallon (401 L) tank

Best For

Bar parts up to 32 mm with angled holes or angled milled features Parts needing many live tools on both the front and the back end Long parts turned through the rotary guide bushing, to 10.23 in (260 mm) per stroke Jobs that would otherwise need custom angled tool holders

Frequently Asked Questions

01 What does the B axis on the GEN TURN SL-32ABY do?

It swivels a unit of 4 ER-16 live tools to a programmed angle, so holes and milled features can be cut at angles other than axial or radial. Expand Machinery describes the 4 tools as fully programmable B-axis live tools. They reach 5,000 rpm and can work on the main spindle and the sub-spindle.

02 What bar sizes can it run?

Maximum barstock diameter is 1.259 in (32 mm) on both spindles. Without the guide bushing the range is 1/4 - 1.259 in (5 - 32 mm). Collets are TF 37, closed by a hydraulic cylinder on both spindles, and the guide bushing type is TD32S.

03 How many tools does it hold?

Expand Machinery gives 20 available tools for the main spindle and 21 for the sub-spindle, including 13 live tools for the main spindle. The table breaks that into turning holders of 16 mm (5/8 in), internal bores of 25 mm, ER-16 cross spindles, ER-11 axial live tools on the sub-spindle side and the 4 B-axis tools.

04 What are the drilling and tapping capacities?

On the main spindle the listed capacity is 13 mm drilling and M10 tapping, with 10 mm drilling and M8 tapping for the cross tools as an option. On the sub-spindle it is 10 mm drilling and M8 tapping.

05 What does it need for installation?

220 VAC ±5%, 3-phase, 60 Hz at 80 amps, 30 kVA, and air at 85 psi and 6 cfm. The machine measures 122 x 81 x 83 in (3,108 x 2,046 x 2,100 mm) without the chip conveyor and weighs 10,960 lb (4,970 kg).
