Kao Ming KMC-1800DV
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Kao Ming KMC-1800DV cost?
Price estimate
We do not have a price for the Kao Ming KMC-1800DV that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Kao Ming KMC-1800DV is a double-column machining center built for speed more than mass: an ISO 40 spindle running 100 - 15,000 rpm, rapids of 30 m/min (1,181 ipm) in X, 40 m/min (1,575 ipm) in Y and 24 m/min (945 ipm) in Z, and roller-type linear guides on three axes. Travels are 1,940 x 1,200 x 700 mm (76.4 x 47.2 x 27.6 in) over a 1,800 x 1,120 mm (70.86 x 44 in) table.
The bridge layout decides what it suits. With 1,300 mm (51.2 in) between the columns and a table rated for 3,500 kg (7,700 lb), it carries mould and die blocks or large plates that a column-type vertical of similar travel would hold with more spindle overhang. Spindle nose to table is 150 - 850 mm (6 - 33.5 in).
The spindle is rated 15 / 18.5 kW (20 / 25 HP) continuous / 30 min with 150 Nm (111 lb-ft), through a 2-step drive with electric changeover, on Ø70 mm (Ø2.76 in) bearings. Those are finishing and semi-finishing numbers. Heavy roughing with big cutters is outside the tool limits in any case: Ø75 mm (Ø3 in) with a full magazine, Ø150 mm (Ø6 in) without adjacent tools, 300 mm (11.8 in) long and 8 kg (17.6 lb). The shank is BT40, with HSK-63A or BBT40 optional, and the 32-tool magazine (40 optional) changes tool to tool in 1.8 s.
Accuracy is stated two ways: ±0.005 mm positioning and ±0.002 mm repeatability over full travel to JIS 6338, and P 0.020 with Ps 0.015 to VDI 3441. The machine weighs 14,500 kg (31,900 lb), covers 6,233 x 4,275 mm (245.4 x 168.3 in), is 3,495 mm (138 in) high and needs 45 KVA. Control is a FANUC 0i (31iMB) series, with Heidenhain and Siemens optional.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,940 mm (76.4 in) |
| Y Axis Travel | 1,200 mm (47.2 in) |
| Z Axis Travel | 700 mm (27.6 in) |
| Distance Between Columns | 1,300 mm (51.2 in) |
| Distance Spindle Nose to Table | 150 - 850 mm (6 - 33.5 in) |
| Table Size | 1,800 x 1,120 mm (70.86 x 44 in) |
| Max Table Load | 3,500 kg (7,700 lb) |
| T Slot | 18 x 11 x 100 mm (0.71 x 0.43 x 3.94 in) |
| Max Spindle Speed | 100 - 15,000 rpm |
| Spindle Speed Range | 2-step with electric changeover |
| Spindle Taper | 7/24 (ISO 40) |
| Spindle Bearing Diameter | Ø70 mm (Ø2.76 in) |
| Spindle Motor Power | 15 / 18.5 kW (20 / 25 HP), continuous / 30 min |
| Spindle Torque | 150 Nm (111 lb-ft) |
| Rapid Traverse Xyz | X 30, Y 40, Z 24 m/min (1,181 / 1,575 / 945 ipm) |
| Tool Shank | BT40 (opt. HSK-63A, BBT40) |
| Pull Stud | MAS P40T-1 (45°) |
| Tool Capacity | 32 tools (opt. 40) |
| Max Tool Diameter (full magazine) | Ø75 mm (Ø3 in); Ø150 mm (Ø6 in) without adjacent tools |
| Max Tool Length | 300 mm (11.8 in) |
| Max Tool Weight | 8 kg (17.6 lb) |
| Tool Change Time | 1.8 s (tool to tool) |
| Power Requirement | 45 KVA |
| Positioning Accuracy | JIS 6338: ±0.005 mm full travel; VDI 3441: P 0.020 |
| Repeatability | JIS 6338: ±0.002 mm full travel; VDI 3441: Ps 0.015 |
| Machine Height | 3,495 mm (138 in) |
| Machine Floor Space | 6,233 x 4,275 mm (245.4 x 168.3 in) |
| Machine Weight | 14,500 kg (31,900 lb) |
| CNC Control | FANUC 0i (31iMB) series; opt. Heidenhain, Siemens |
| Guideways | Roller-type linear guides on three axes |
Specifications sourced from kaoming.com — verified 2026-09-25
Strengths & Limitations
Strengths
- 100 - 15,000 rpm ISO 40 spindle with 150 Nm (111 lb-ft) and 15 / 18.5 kW (20 / 25 HP)
- Rapids of 30 m/min (1,181 ipm) in X, 40 m/min (1,575 ipm) in Y and 24 m/min (945 ipm) in Z on roller-type linear guides
- Double-column frame with 1,300 mm (51.2 in) between columns and a 3,500 kg (7,700 lb) table load
- 1.8 s tool-to-tool change, with BT40 standard and HSK-63A or BBT40 optional
- Full-travel accuracy stated to JIS 6338: ±0.005 mm positioning, ±0.002 mm repeatability
Limitations
- 150 Nm (111 lb-ft) and an ISO 40 taper limit heavy roughing in steel
- Tools are capped at 8 kg (17.6 lb) and Ø75 mm (Ø3 in) with a full magazine
- Z travel is 700 mm (27.6 in), with 850 mm (33.5 in) at most from spindle nose to table
- Occupies 6,233 x 4,275 mm (245.4 x 168.3 in) of floor for a 1,800 x 1,120 mm (70.86 x 44 in) table
Best For
Frequently Asked Questions
01
The spindle runs 100 - 15,000 rpm on a 7/24 (ISO 40) taper. It is rated 15 / 18.5 kW (20 / 25 HP) continuous / 30 min and 150 Nm (111 lb-ft), with a 2-step drive and electric changeover. The spindle bearing diameter is Ø70 mm (Ø2.76 in).
02
BT40 as standard, with HSK-63A and BBT40 as options, and an MAS P40T-1 (45°) pull stud. The magazine holds 32 tools, or 40 as an option. Tools can be Ø75 mm (Ø3 in), or Ø150 mm (Ø6 in) without adjacent tools, 300 mm (11.8 in) long and 8 kg (17.6 lb).
03
To JIS 6338, positioning is ±0.005 mm and repeatability ±0.002 mm, both over full travel. To VDI 3441 the figures are P 0.020 and Ps 0.015. The two standards measure differently, so compare like with like when setting this machine against another quotation.
04
The two are close in weight, 14,500 kg (31,900 lb) here and 14,000 kg (30,800 lb) for the KMC-1500V, but built for different cuts. The KMC-1500V has a BT-50 spindle at 4,400 rpm and a 1,700 x 850 mm (66.93 x 33.46 in) table rated for 2,200 kg (4,840 lb). This machine has the ISO 40 spindle at 100 - 15,000 rpm and a table load of 3,500 kg (7,700 lb).
05
Floor space is 6,233 x 4,275 mm (245.4 x 168.3 in) and height is 3,495 mm (138 in). The machine weighs 14,500 kg (31,900 lb) and the power requirement is 45 KVA. No air supply figure is given in the table, so request it with the installation drawing.

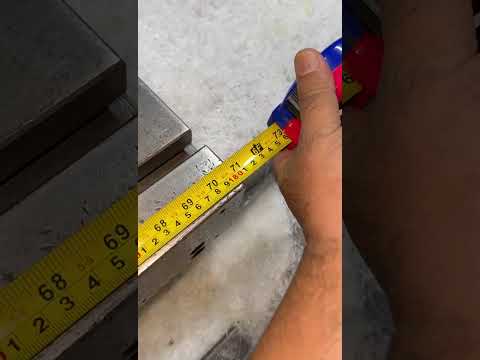

Videos
