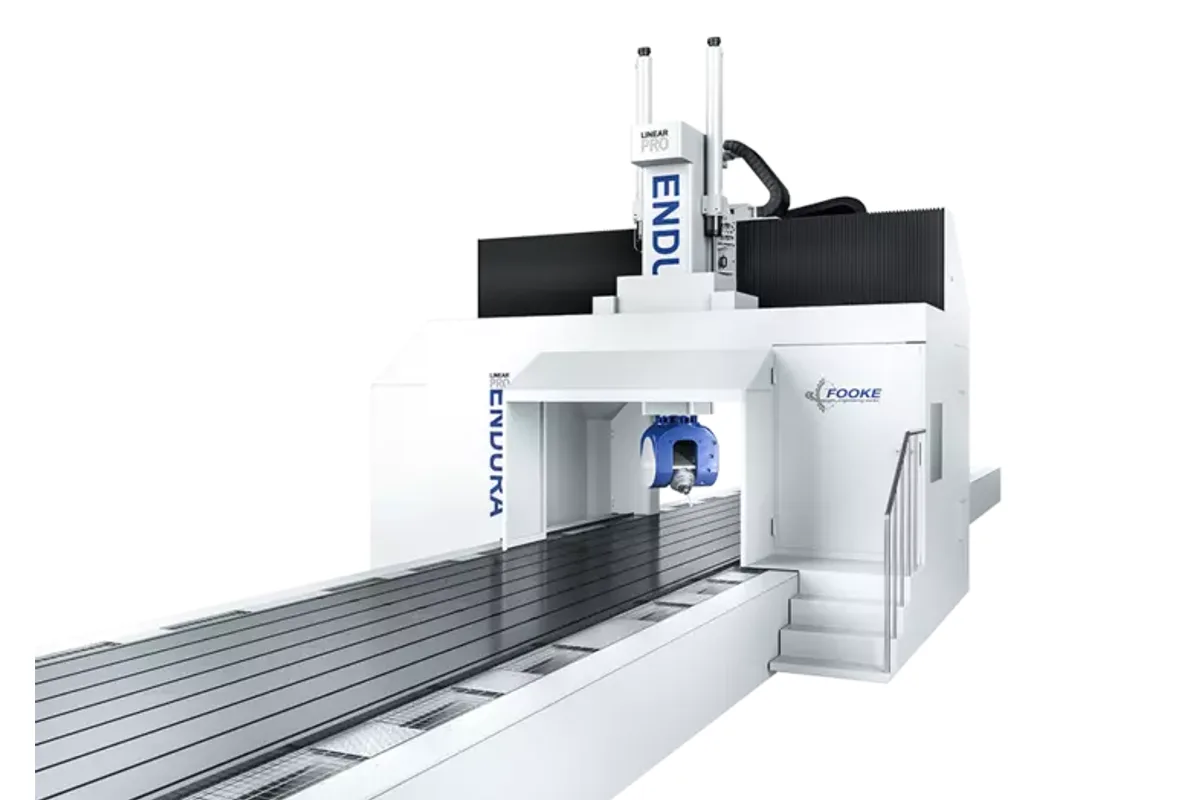

Fooke ENDURA PRO LINEAR
Image: fooke-machines.com, Fooke
Key Specifications
x axis travel
y axis travel
z axis travel
feed rate x
feed rate y
feed rate z
How much does the Fooke ENDURA PRO LINEAR cost?
Price estimate
We do not have a price for the Fooke ENDURA PRO LINEAR that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fooke ENDURA PRO LINEAR is a profile milling machine: a 5-axis long bed gantry for stringers and other long, slender structural parts in aluminum and composites. X travel is 6,000 - 60,000 mm. Y is narrow by gantry standards at 1,600 / 2,400 / 3,100 mm, and Z is 1,100 / 1,500 mm.
Those proportions describe the part. An aircraft stringer or a floor beam is many metres long, a few hundred millimetres across, and curved and twisted along its length. The machine needs length, a fork head that can follow the twist, and not much else. Keeping the bridge short keeps it stiff, and Fooke quotes material removal rates up to 11.0 l/min as the result.
The bed is a solid monoblock casting, which Fooke says spreads the load evenly, and it is modularly expandable. It is self-supporting: an industrial floor approx. 400 mm thick is sufficient and no special foundation is needed, which is unusual for a machine of this length. The Fooke ENDURA 1000LINEAR, the other long bed model, is built on a foundation designed for it.
Production details are aimed at series work. Two-station machining allows loading parallel to the cut. The machining area is encapsulated by impact-resistant lamellas, and video monitoring of the interior is an option.
Feed rates are 5 - 60,000 mm/min in X, on a rack-and-pinion gantry drive, and 5 - 65,000 mm/min in Y and Z on linear motors, with acceleration up to 3.5 m/sec². Position accuracy is 0.030 mm in X, 0.020 mm in Y and 0.015 mm in Z. Milling heads 4, 11 and 15 are listed.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 6,000 - 60,000 mm (236.2 - 2,362.2 in) |
| Y Axis Travel | 1,600 / 2,400 / 3,100 mm (63.0 / 94.5 / 122.0 in) |
| Z Axis Travel | 1,100 / 1,500 mm (43.3 / 59.1 in) |
| Feed Rate X | 5 - 60,000 mm/min |
| Feed Rate Y | 5 - 65,000 mm/min |
| Feed Rate Z | 5 - 65,000 mm/min |
| Acceleration | up to 3.5 m/sec² |
| Positioning Accuracy X | 0.030 mm |
| Positioning Accuracy Y | 0.020 mm |
| Positioning Accuracy Z | 0.015 mm |
| Position Scatter X | 0.015 mm |
| Position Scatter Y | 0.010 mm |
| Position Scatter Z | 0.010 mm |
| Milling Heads | Milling head 4, Milling head 11, Milling head 15 |
| Milling Head 4 Spindles | HSK-A63, 42 kW, 24,000 rpm, 67 Nm; or HSK-A63, 63 kW, 30,000 rpm, 31 Nm |
| Milling Head 11 Spindles | HSK-A63, 20 kW, 30,000 rpm, 21.5 Nm; or HSK-A63, 34 kW, 24,000 rpm, 40 Nm |
| Milling Head Rotary Axes | C-axis 550° (+/-275°), A-axis 220° (+/-110°) (milling heads 4, 11) |
Specifications sourced from fooke-machines.com — verified 2026-10-05
Strengths & Limitations
Strengths
- X travel of 6,000 - 60,000 mm on a modularly expandable monoblock bed
- Material removal rates up to 11.0 l/min quoted by the maker
- Self-supporting bed: an industrial floor approx. 400 mm thick is sufficient
- Two-station machining for loading parallel to the cut
- Machining area encapsulated by certified impact resistant vertical blinds
Limitations
- Y travel tops out at 3,100 mm (122.0 in), against 4,500 mm (177.2 in) on the Fooke ENDURA 1000LINEAR
- Z is limited to 1,100 / 1,500 mm
- Material range is aluminum and composites only
- X position accuracy is 0.030 mm with an indirect measuring system on that axis
Best For
Frequently Asked Questions
01
Fooke describes it as a specialist for stringer and profile machining: a 5-axis long bed gantry designed for high-performance cutting of aluminum and composite profile structure elements, for example stringers and other structural components from the aviation industry.
02
X is 6,000 - 60,000 mm, Y is 1,600 / 2,400 / 3,100 mm and Z is 1,100 / 1,500 mm. Fooke describes the monobloc bed as modularly expandable.
03
No. Fooke states that, because the machine bed is self-supporting, a standard steel-reinforced industrial floor approx. 400 mm thick is sufficient. The machine is set up and aligned by fixations bolted to the floor.
04
Milling heads 4, 11 and 15 are listed. Head 4 has HSK-A63 spindles of 42 kW, 24,000 rpm and 67 Nm, or 63 kW, 30,000 rpm and 31 Nm. Head 11 has 20 kW, 30,000 rpm and 21.5 Nm, or 34 kW, 24,000 rpm and 40 Nm. Both pivot 220° (+/-110°) in A.
