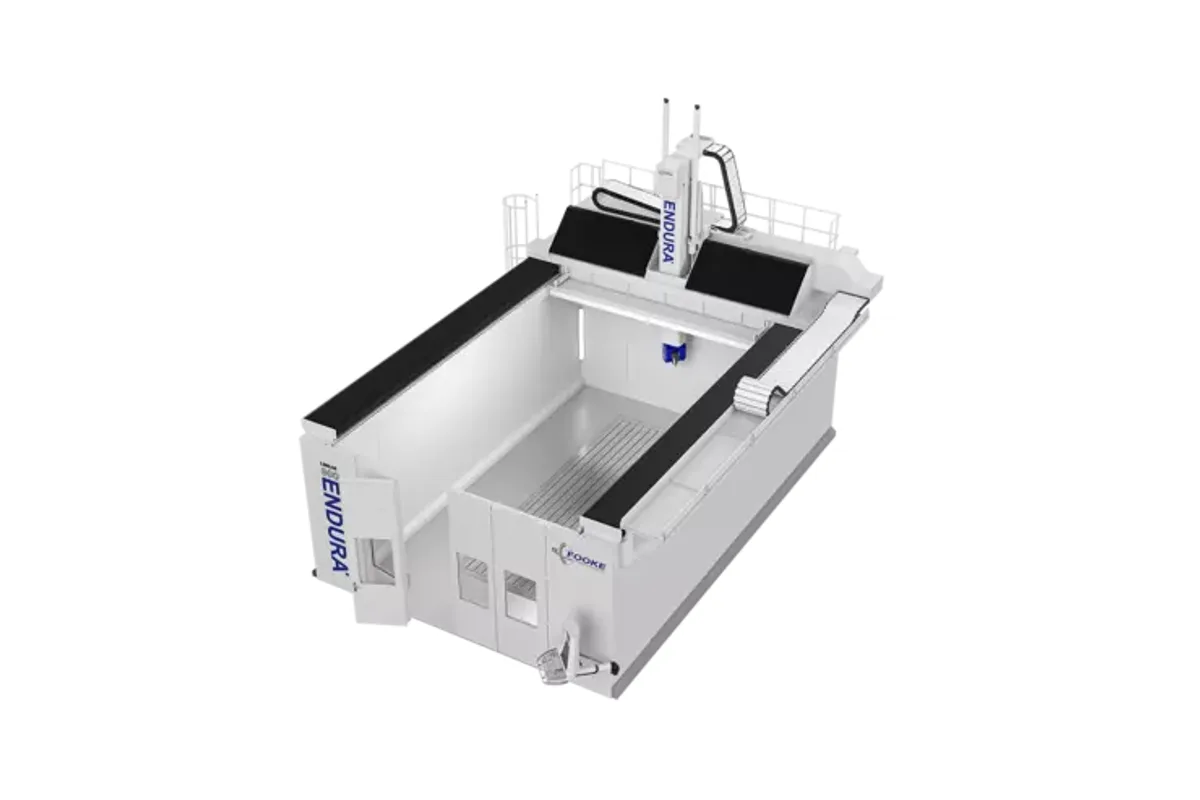

Fooke ENDURA 900LINEAR
Image: fooke-machines.com, Fooke
Key Specifications
x axis travel
y axis travel
z axis travel
feed rate x
feed rate y
feed rate z
How much does the Fooke ENDURA 900LINEAR cost?
Price estimate
We do not have a price for the Fooke ENDURA 900LINEAR that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fooke ENDURA 900LINEAR is the large universal gantry of the ENDURA range: an overhead portal on raised beds with linear motors in all three linear axes, configurable from 3,000 - 30,000 mm in X, with Y travels of 3,000 / 3,500 / 4,000 / 4,500 mm and Z travels of 1,500 / 2,100 / 2,500 / 3,000 mm. Its material list runs from plastic and CFRP/GFRP through aluminum to cast iron and steel.
Two things set it apart from the other long ENDURA machines. First, X is a linear motor gantry pair, where the Fooke ENDURA 600LINEAR uses a rack and pinion. That shows in the dynamics: acceleration is up to 5 m/sec², and the page quotes a Kv factor of 5-7 m/(min x mm) against roughly 1-3 for conventional drives. Second, the height. A Z travel option of 3,000 mm (118.1 in) is the tallest in the range and allows a complete vehicle body, a large press tool or an aircraft assembly jig to be machined from the top down.
The side walls are pylon columns with raised beds, welded steel filled with a highly damping special concrete, and the Z axis is supported by two hydraulic cylinders. The machine room is at ground level and can be loaded by crane or forklift.
Six milling heads are listed, more than for any sibling. They range from milling head 11, with HSK-A63 spindles of 20 kW at 30,000 rpm or 34 kW at 24,000 rpm, to milling head 12, with an HSK-A100 spindle of 60 kW and 300 Nm at 15,000 rpm. Feed rates are 5 - 65,000 mm/min per axis.
Position accuracy is 0.025 mm in X, 0.020 mm in Y and 0.015 mm in Z, with a position scatter of 0.010 mm throughout.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 - 30,000 mm (118.1 - 1,181.1 in) |
| Y Axis Travel | 3,000 / 3,500 / 4,000 / 4,500 mm (118.1 / 137.8 / 157.5 / 177.2 in) |
| Z Axis Travel | 1,500 / 2,100 / 2,500 / 3,000 mm (59.1 / 82.7 / 98.4 / 118.1 in) |
| Feed Rate X | 5 - 65,000 mm/min |
| Feed Rate Y | 5 - 65,000 mm/min |
| Feed Rate Z | 5 - 65,000 mm/min |
| Acceleration | up to 5 m/sec² |
| Positioning Accuracy X | 0.025 mm |
| Positioning Accuracy Y | 0.020 mm |
| Positioning Accuracy Z | 0.015 mm |
| Position Scatter X | 0.010 mm |
| Position Scatter Y | 0.010 mm |
| Position Scatter Z | 0.010 mm |
| Milling Heads | Milling head 4, Milling head 8, Milling head 9, Milling head 11, Milling head 12, Milling head 15 |
| Milling Head 4 Spindles | HSK-A63, 42 kW, 24,000 rpm, 67 Nm; or HSK-A63, 63 kW, 30,000 rpm, 31 Nm |
| Milling Head 9 Spindles | HSK-A63, 39 kW, 24,000 rpm, 32 Nm; or HSK-A63, 63 kW, 30,000 rpm, 31 Nm |
| Milling Head 11 Spindles | HSK-A63, 20 kW, 30,000 rpm, 21.5 Nm; or HSK-A63, 34 kW, 24,000 rpm, 40 Nm |
| Milling Head 12 Spindles | HSK-A100, 60 kW, 15,000 rpm, 300 Nm |
| Milling Head Rotary Axes | C-axis 550° (+/-275°), A-axis 220° (+/-110°) (milling heads 4, 9, 11, 12) |
Specifications sourced from fooke-machines.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Linear motors in X, Y and Z with acceleration up to 5 m/sec², on an X travel of 3,000 - 30,000 mm
- Z travel options up to 3,000 mm (118.1 in) and Y up to 4,500 mm (177.2 in)
- Six milling heads listed, from 30,000 rpm HSK-A63 spindles to a 60 kW, 300 Nm HSK-A100 spindle
- Position scatter of 0.010 mm in all three linear axes
- Pylon columns filled with highly damping special concrete; ground-level machine room
Limitations
- X position accuracy of 0.025 mm is looser than the 0.015 mm of the Fooke ENDURA 900LINEAR Compact
- Feed rates of 5 - 65,000 mm/min are below the 5 - 80,000 mm/min of the Fooke ENDURA 600LINEAR
- A raised-bed gantry of this size is a building project; the page gives no weights or foundation data
- Tool changing, coolant, clamping and enclosure are all optional equipment
Best For
Frequently Asked Questions
01
X is listed as 3,000 - 30,000 mm. Y is 3,000 / 3,500 / 4,000 / 4,500 mm and Z is 1,500 / 2,100 / 2,500 / 3,000 mm.
02
The 900LINEAR has linear motors in all three linear axes, acceleration up to 5 m/sec², and steel and cast iron in its material list. The Fooke ENDURA 600LINEAR has a rack-and-pinion X axis, acceleration up to 3.0 m/sec² and a material range that ends at aluminum, with faster feed rates of 5 - 80,000 mm/min.
03
The page lists milling heads 4, 8, 9, 11, 12 and 15. From Fooke's head brochure: head 4 has HSK-A63 spindles of 42 kW, 24,000 rpm and 67 Nm or 63 kW, 30,000 rpm and 31 Nm; head 12 has an HSK-A100 spindle of 60 kW, 15,000 rpm and 300 Nm.
04
Fooke describes a hybrid design of steel, welded, cast iron and mineral casting components. The side walls are pylon columns with raised beds, welded steel structures filled with highly damping special concrete. Portal, cross slide and Z beam are weight-optimized welded steel.
