Fooke ENDURA 7000LINEAR

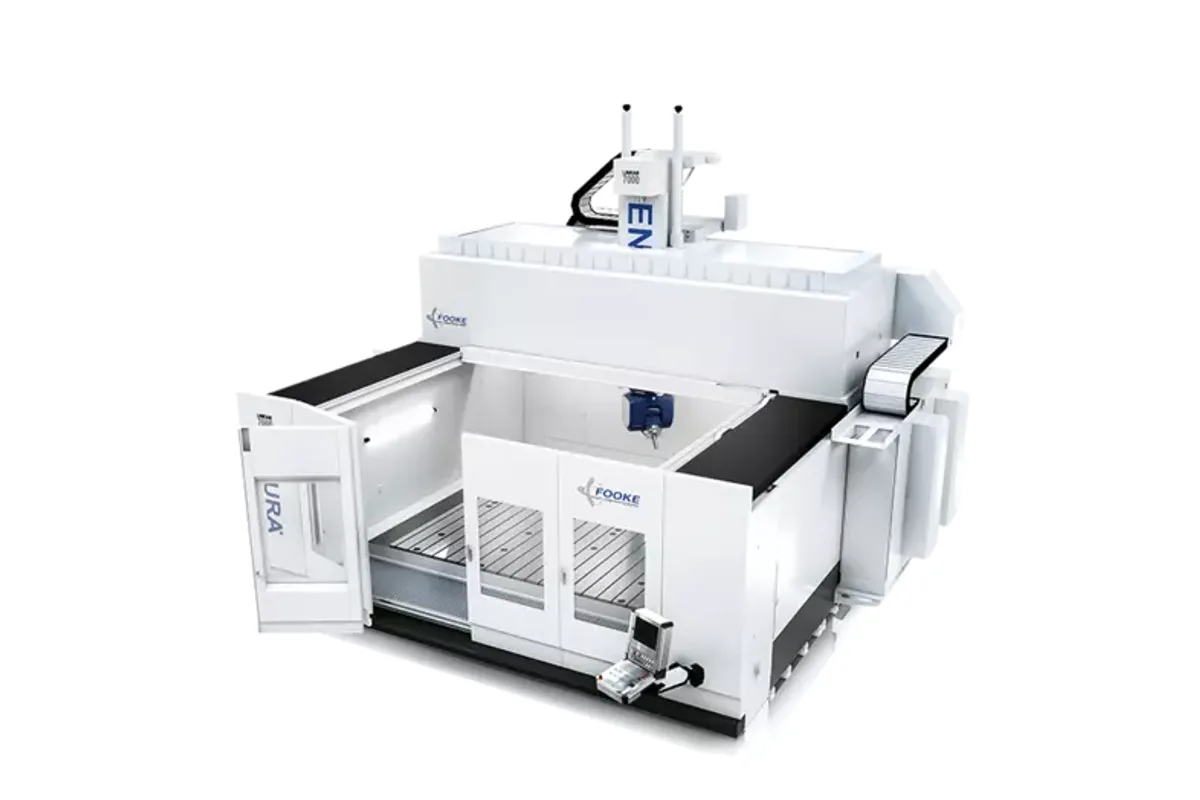

Image: fooke-machines.com, Fooke
Key Specifications
x axis travel
y axis travel
z axis travel
feed rate x
feed rate y
feed rate z
How much does the Fooke ENDURA 7000LINEAR cost?
Price estimate
We do not have a price for the Fooke ENDURA 7000LINEAR that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Heavy roughing of high-strength materials is the stated job of the Fooke ENDURA 7000LINEAR. It is a compact overhead gantry milling machine for tool and mould construction, with X travels of 3,000 / 4,500 / 6,000 mm, Y travels of 3,500 / 4,500 mm and 1,500 mm (59.1 in) of Z, running in 3-axis and 5-axis work.
Everything about the build leans towards mass and damping. The machine bed, the Z travel beam and the cross slide are solid castings; only the side walls and the gantry are welded steel. Fooke describes the concept as thermosymmetrical and says the casting materials damp the vibration excited by the cut and by direction changes. Compare the acceleration figures to see the consequence: up to 3 m/sec² here, where the lighter compact machines list up to 5 m/sec².
It is still a linear motor machine. Feed rates are 5 - 65,000 mm/min and rapid traverse is 65 m/min in X, Y and Z, with torque motors in the rotary axes. Position accuracy is 0.015 mm and position scatter 0.010 mm per axis, so the machine that roughs a die can also finish it.
Only two milling heads are listed, 8 and 12, the heavy end of Fooke's head range. For milling head 12 the head brochure gives an HSK-A100 spindle with 60 kW, 15,000 rpm and 300 Nm.
Despite the weight of the castings, Fooke says the machine does not need to be placed on foundations: a steel-reinforced industrial floor approx. 300 mm thick is sufficient. Emulsion mist extraction is on the options list, which fits a machine expected to cut wet.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 / 4,500 / 6,000 mm (118.1 / 177.2 / 236.2 in) |
| Y Axis Travel | 3,500 / 4,500 mm (137.8 / 177.2 in) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| Feed Rate X | 5 - 65,000 mm/min |
| Feed Rate Y | 5 - 65,000 mm/min |
| Feed Rate Z | 5 - 65,000 mm/min |
| Acceleration | up to 3 m/sec² |
| Rapid Traverse X | 65 m/min |
| Rapid Traverse Y | 65 m/min |
| Rapid Traverse Z | 65 m/min |
| Positioning Accuracy X | 0.015 mm |
| Positioning Accuracy Y | 0.015 mm |
| Positioning Accuracy Z | 0.015 mm |
| Position Scatter X | 0.010 mm |
| Position Scatter Y | 0.010 mm |
| Position Scatter Z | 0.010 mm |
| Milling Heads | Milling head 8, Milling head 12 |
| Milling Head 12 Spindles | HSK-A100, 60 kW, 15,000 rpm, 300 Nm |
| Milling Head Rotary Axes | C-axis 550° (+/-275°), A-axis 220° (+/-110°) (milling head 12) |
Specifications sourced from fooke-machines.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Bed, Z travel beam and cross slide in solid casting for damping in heavy cuts
- Milling head 12 with a 60 kW, 300 Nm HSK-A100 spindle
- Rapid traverse of 65 m/min in X, Y and Z from linear motors
- Y travel up to 4,500 mm (177.2 in), wider than the Fooke ENDURA 900LINEAR Compact at 3,500 mm (137.8 in)
- No foundation needed beyond an industrial floor approx. 300 mm thick
Limitations
- Acceleration is up to 3 m/sec², lower than the up to 5 m/sec² of the Fooke ENDURA 700LINEAR
- Z travel is a single 1,500 mm (59.1 in)
- Only milling heads 8 and 12 are listed; no light high-speed head appears for this model
- No table load, machine weight or connected power on the page
Best For
Frequently Asked Questions
01
Fooke describes it as an overhead tool milling machine specially designed for heavy-duty rough machining of solid and high-strength materials, developed for tool and mould construction. The material range on the page is steel, cast iron and aluminum.
02
X is listed as 3,000 / 4,500 / 6,000 mm, Y as 3,500 / 4,500 mm, and Z as 1,500 mm (59.1 in). Rapid traverse is 65 m/min in each axis and feed rates are 5 - 65,000 mm/min.
03
The page lists milling heads 8 and 12. Milling head 12 carries an HSK-A100 high-frequency spindle with 60 kW, 15,000 rpm and 300 Nm, and pivots 550° (+/-275°) in C and 220° (+/-110°) in A. Spindle rows for head 8 are not included in this page's table.
04
Position accuracy is listed as 0.015 mm in X, Y and Z, with a position scatter of 0.010 mm. All linear and rotary axes have direct measuring systems.
