DN Solutions Vertical Machining Centers (VMC)

DN Solutions MYNX 5400 50 II

Est. $100,000 - $145,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

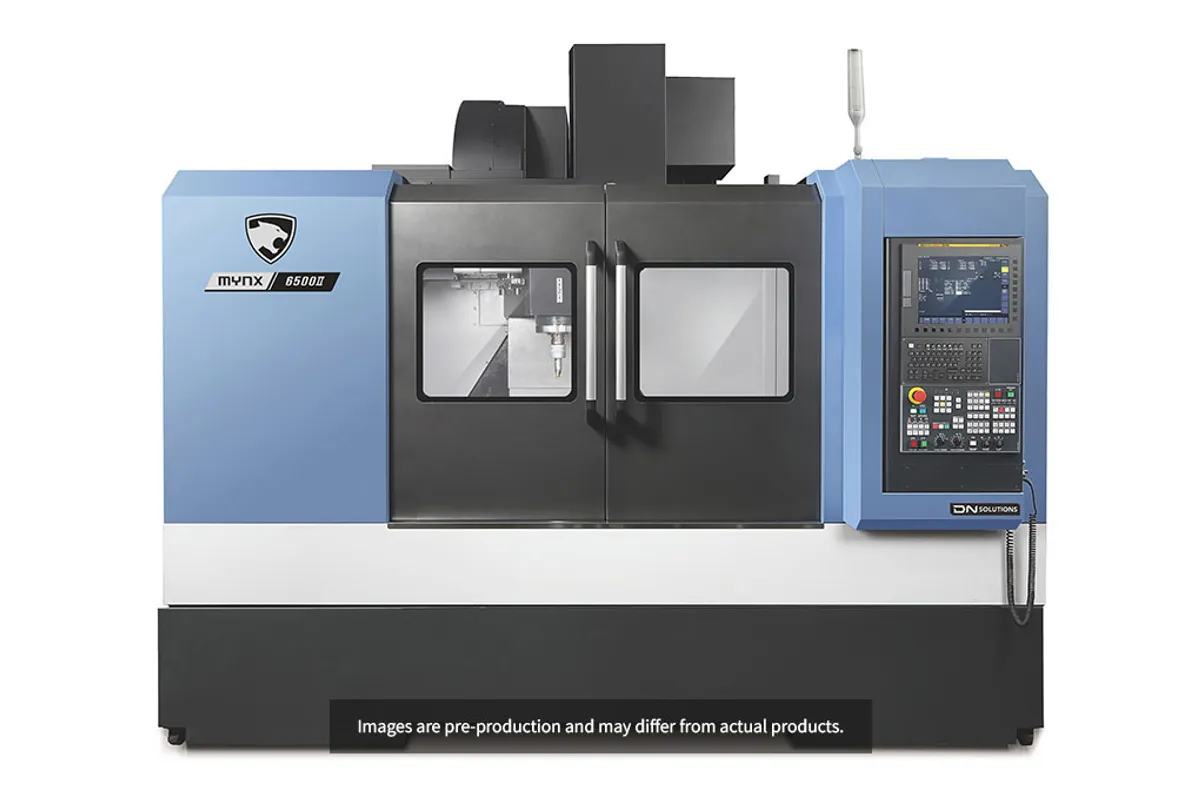

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

1,020 mm (40 in)

Y Travel

550 mm (22 in)

Z Travel

530 mm (21 in)

Max Spindle

6,000 rpm

Table Size

1,200 × 540 mm (47 × 21 in)

Spindle Power

15 kW (20 hp)

How much does the DN Solutions MYNX 5400 50 II cost?

Estimated price range

Est.$100,000 - $145,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions MYNX 5400 50 II is the smallest Mynx vertical machining center in its 6,000 rpm form: 1,020 mm (40 in) of X, 550 mm (22 in) of Y and 530 mm (21 in) of Z, with a spindle that delivers 286.5 N·m (211 ft-lb) from 15 kW (20 hp).

Against the MYNX 5400 II, DN's table changes three rows: top speed drops from 8,000 rpm to 6,000 rpm, weight rises from 7,000 kg (15,432 lb) to 7,500 kg (16,535 lb), and the listed height falls from 3,012 mm (119 in) to 2,920 mm (115 in). Travels, table, rapids, power and torque are printed identically for both. On paper, then, the choice between them is not about envelope or torque. It is about whether the work ever needs the top quarter of the speed range. If it does not, this is the heavier machine around the same envelope.

The numbers describe a torque-first machine. 286.5 N·m (211 ft-lb) is a lot for a table of 1,200 × 540 mm (47 × 21 in), and it suits large face mills, big drills and tapping in steel and cast iron more than small cutters in aluminium, where 6,000 rpm caps the surface speed. DN classes the Mynx as a heavy duty machining center with a CAM-type tool changer. Its table for this model states neither magazine capacity nor taper, so confirm both.

Table load is 1,000 kg (2,205 lb). Rapids are 30 m/min (1,181 ipm) on X and Y and 24 m/min (945 ipm) on Z, and the machine occupies 2,467 × 3,350 mm (97 × 132 in) in length and width. For more room at the same 6,000 rpm, the MYNX 6500 50 II moves up to 1,270 mm (50 in) of X, 670 mm (26 in) of Y and a 1,300 kg (2,866 lb) table load.

Full Specifications

Parameter	Value
X-Axis Travel	1,020 mm (40 in)
Y-Axis Travel	550 mm (22 in)
Z-Axis Travel	530 mm (21 in)
Rapid Traverse X	30 m/min (1,181 ipm)
Rapid Traverse Y	30 m/min (1,181 ipm)
Rapid Traverse Z	24 m/min (945 ipm)
Max Spindle Speed	6,000 rpm
Spindle Motor Power	15 kW (20 hp)
Spindle Torque	286.5 N·m (211 ft-lb)
Table Size	1,200 × 540 mm (47 × 21 in)
Max Table Load	1,000 kg (2,205 lb)
Floor Space Required	2,467 × 3,350 × 2,920 mm (97 × 132 × 115 in)
Machine Weight	7,500 kg (16,535 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

286.5 N·m (211 ft-lb) of spindle torque from 15 kW (20 hp) on a machine with 1,020 mm (40 in) of X
7,500 kg (16,535 lb) machine weight, heavier than the 7,000 kg (15,432 lb) MYNX 5400 II on the same travels
1,000 kg (2,205 lb) table load on a 1,200 × 540 mm (47 × 21 in) table
CAM-type tool changer, which DN credits with faster tool changes
Compact for a heavy duty machine: 2,467 × 3,350 mm (97 × 132 in) in length and width

Limitations

Top speed is 6,000 rpm, against 8,000 rpm on the MYNX 5400 II
Y travel of 550 mm (22 in) is the bottom of a Mynx range that goes up to 950 mm (37.4 in)
Z rapid of 24 m/min (945 ipm) is slower than the 30 m/min (1,181 ipm) of X and Y
DN's table for this model states no taper, tool capacity or tool-change time

Best For

Low-speed, high-torque milling in steel and cast iron Large-diameter drilling and tapping on parts within 1,020 × 550 mm Workpieces and fixtures up to 1,000 kg (2,205 lb) Heavy duty cutting where floor space is limited

Frequently Asked Questions

01 What is the difference between the MYNX 5400 50 II and the MYNX 5400 II?

In DN's table the two share travels, table, rapids, 15 kW (20 hp) and 286.5 N·m (211 ft-lb). The MYNX 5400 50 II tops out at 6,000 rpm and weighs 7,500 kg (16,535 lb); the MYNX 5400 II runs to 8,000 rpm and weighs 7,000 kg (15,432 lb). Ask DN which taper and tool magazine each one carries, because the table does not say.

02 Is 6,000 rpm enough for the work I do?

It is for most steel and cast-iron milling, where large cutters run well below that speed and the 286.5 N·m (211 ft-lb) of torque is what removes metal. It is a limit for small end mills and drills in aluminium, which want more surface speed than 6,000 rpm gives. If such jobs are a regular part of the mix, the MYNX 5400 II has the same travels with 8,000 rpm.

03 What size of part fits the MYNX 5400 50 II?

Travels are 1,020 mm (40 in) in X, 550 mm (22 in) in Y and 530 mm (21 in) in Z. The table is 1,200 × 540 mm (47 × 21 in) and takes 1,000 kg (2,205 lb), fixtures included. Tool length and fixture height both come out of the Z travel, so tall vises or risers reduce the part height that can be machined.

04 Which tool changer does the MYNX 5400 50 II use?

DN states that Mynx machines have a CAM-type tool changer, which it credits with faster tool changes. The comparison table for this model gives no magazine capacity, tool-change time or maximum tool size, so those need to come from DN's quotation.

05 How much room does the MYNX 5400 50 II take up?

DN lists 2,467 × 3,350 mm (97 × 132 in) for length and width and 2,920 mm (115 in) for height, at a machine weight of 7,500 kg (16,535 lb). Allow working space around those dimensions for the operator, for loading and for maintenance access.
