Industrial CNC Shortcut 203
Key Specifications
Max Spindle
Table Size
work envelope
frame structure
xy drive
z drive
How much does the Industrial CNC Shortcut 203 cost?
Price estimate
We do not have a price for the Industrial CNC Shortcut 203 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

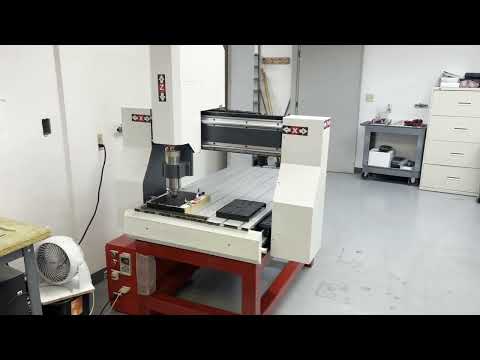

The Industrial CNC Shortcut 203 is the smallest router in the Pro Series: a floor-standing, welded-steel machine with a working area of 25 x 37 x 12 in (635 x 940 x 305 mm) on a 46 x 48 in (1,168 x 1,219 mm) table. Industrial CNC builds it with the same frame construction, drives and spindle type as the larger tables, so it is a small-format production machine and not a bench unit. Net weight is 690 lb (313 kg).
The drive layout is the one used across the range. X and Y run on gear-driven rack and pinion, Z on a precision ball screw, and the long axis is driven from both sides of the gantry. Rapid speed is listed as 0-600 ipm (0-15.2 m/min), which is the one motion figure that separates it from the Apprentice 404, rated 0-900 ipm (0-22.9 m/min). The spindle is a high-frequency, liquid-cooled unit, variable to 24,000 rpm through the included VFD.
What the short table gives up is sheet capacity. A 25 in (635 mm) X travel will not take a 48 in panel, so plywood and plastic sheet have to be cut down before they go on the machine. The 12 in (305 mm) of Z in the working area matters more here than on the big tables: it lets a compact machine carve blocks, guitar bodies, moulds and other tall parts.
The table top is extruded aluminium T-slot with clamps as standard. A vacuum hold-down bed, a rotary axis and an 8-station automatic tool changer are listed as accessories, and the maker notes that not every option is available on every model, so confirm them for this size. Supply is AC 220 V.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 46 x 48 in (1,168 x 1,219 mm) |
| Work Envelope | 25 x 37 x 12 in (635 x 940 x 305 mm) |
| Frame Structure | Welded Steel |
| Xy Drive | Primary Gear With Micro Precision R & P |
| Z Drive | Precision Ball Screw |
| Rapid Traverse Xyz | 0-600 ipm (0-15.2 m/min) |
| Spindle | High Frequency Liquid Cooled Motor |
| Max Spindle Speed | Variable to 24,000 rpm |
| Power Requirement | AC 220 V |
| Command | G Code |
| CNC Control | PC |
| Packing Size | 60 x 59 x 76 in (1,524 x 1,499 x 1,930 mm) |
| Machine Weight | 690 lb (313 kg) |
Specifications sourced from industrialcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 12 in (305 mm) of Z in the working area on a machine with a 46 x 48 in (1,168 x 1,219 mm) table, enough for blocks and tall carvings
- Welded steel frame, rack-and-pinion X and Y and a ball-screw Z, the same construction the maker lists for its larger tables
- High-frequency liquid-cooled spindle, variable to 24,000 rpm, with the VFD included
- At 690 lb (313 kg) net it is the lightest Pro Series machine to place and move
Limitations
- The 25 x 37 in (635 x 940 mm) working area cannot take a 48 in wide sheet; panels must be cut down first
- Rapid speed is 0-600 ipm (0-15.2 m/min), against 0-900 ipm (0-22.9 m/min) on the Apprentice 404
- The maker's table prints its accuracy and tolerance figures without a unit, and it gives no spindle power
- Tool changer, vacuum bed and rotary axis are accessories, not part of the standard machine
Best For
Frequently Asked Questions
01
The working area is 25 x 37 x 12 in (635 x 940 x 305 mm) on a table that measures 46 x 48 in (1,168 x 1,219 mm). Anything wider than 25 in or longer than 37 in has to be cut down or indexed, so this is not a machine for full sheets.
02
No. It stands on its own welded steel frame and weighs 690 lb (313 kg) net; the packed crate is 60 x 59 x 76 in (1,524 x 1,499 x 1,930 mm). The maker describes it as built to the specifications of its larger production systems.
03
A high-frequency, liquid-cooled spindle that is variable to 24,000 rpm. A variable frequency drive is included with all Pro Series systems. The table does not state the spindle power, and spindle options are listed among the accessories, so ask for the rating of the unit quoted.
04
Size and speed. The Apprentice 404 has a 48 x 48 x 12 in (1,219 x 1,219 x 305 mm) working area and a rapid speed of 0-900 ipm (0-22.9 m/min). The Shortcut 203 works within 25 x 37 x 12 in (635 x 940 x 305 mm) at 0-600 ipm (0-15.2 m/min). Frame type, drives and spindle type are the same in both tables.
