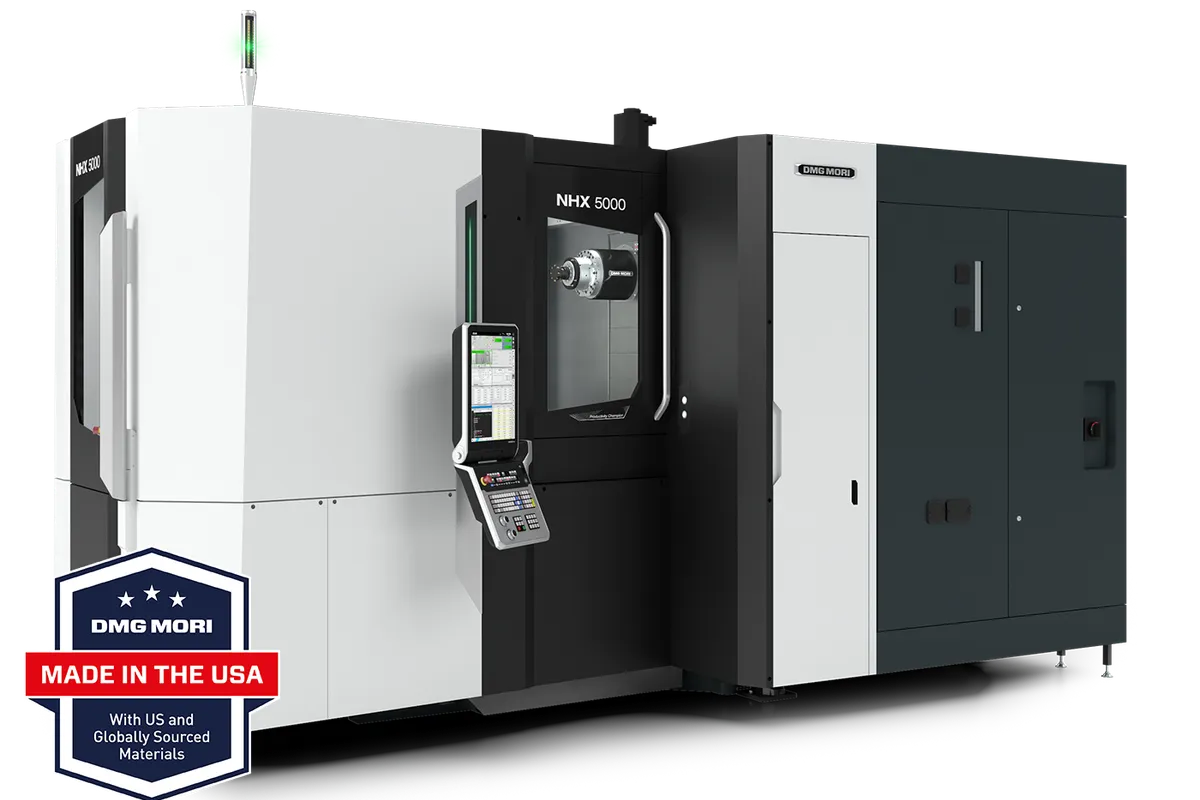

DMG Mori NHX 5000 4th Generation

$400,000 - $530,000 Updated 2026-03-19

Key Specifications

X Travel

730 mm (28.7 in)

Y Travel

730 mm (28.7 in)

Z Travel

880 mm (34.6 in)

Max Spindle

20,000 RPM (speedMASTER standard, 400V)

Spindle Taper

CAT 40 / BBT 40

Tool Capacity

40 tools standard (60, 120, 240 optional)

Overview

The DMG Mori NHX 5000 4th Generation is the latest evolution of DMG Mori's flagship 500mm-class horizontal machining center, featuring the 20,000 RPM speedMASTER spindle as standard with 400V specification, dramatically faster rapid traverse rates, and expanded automation compatibility. The 4th Generation occupies the critical mid-tier of DMG Mori's horizontal lineup -- larger and more capable than the NHX 4000 series, more accessible than the NHX 6300.

Travel dimensions are 730 x 730 x 880 mm (28.7 x 28.7 x 34.6 in) on a 500 x 500 mm (19.7 x 19.7 in) pallet. The Z-axis travel increases from 800 mm to 880 mm over the prior model, adding 80 mm of depth capacity. Maximum workpiece capacity reaches 800 mm (31.5 in) diameter and 1,000 mm (39.4 in) height at 500 kg (1,102 lb). The high-rigidity bed design ensures stability during aggressive cutting.

The headline upgrade is the 20,000 RPM speedMASTER spindle now included as standard, with feed drive rates reaching up to 70,000 mm/min (70 m/min, 2,756 ipm) and acceleration up to 1.2g. These represent substantial improvements in non-cutting time reduction over the prior generation's 60 m/min rapids.

CELOS X with MAPPS Fanuc or SIEMENS control provides the digital interface with 27 manufacturing applications. The machine features hydraulic and pneumatic interfaces essential for automation, with compatibility for RPS NHX pallet systems and AMR 2000 autonomous mobile robots. New NHX 5000 4th Generation machines price between $400,000 and $530,000. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
X-Axis Travel	730 mm (28.7 in)
Y-Axis Travel	730 mm (28.7 in)
Z-Axis Travel	880 mm (34.6 in)
Max Spindle Speed	20,000 RPM (speedMASTER standard, 400V)
Spindle Taper	CAT 40 / BBT 40
Spindle Motor Power	22 kW (30 hp)
Spindle Torque	162 Nm (120 ft-lb)
Pallet Size	500 x 500 mm (19.7 x 19.7 in)
Max Workpiece Diameter	800 mm (31.5 in)
Max Workpiece Height	1,000 mm (39.4 in)
Max Work Weight	500 kg (1,102 lb)
Tool Capacity	40 tools standard (60, 120, 240 optional)
Rapid Traverse Rate	70 m/min (2,756 ipm)
Acceleration	Up to 1.2g
Table Indexing	0.001 deg increment (B-axis)
Machine Weight	15,500 kg (34,172 lb)
CNC Control	CELOS X with MAPPS Fanuc or SIEMENS
730 Mm	28.7 in.
880 Mm	34.6 in.
800 Mm	31.5 in.
1000 Mm	39.4 in.
500 Kg	1102.3 lbs.
Customer Benefits	MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.
Customer Benefitsshorter Set Up Timesno Great Experience Necessary To Take Measurements	Left : Structured user notes for the measurement results. / Right : Toolsetter mode – length / diameter and wear measurement.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

20,000 RPM speedMASTER spindle included as standard provides high-speed capability without upgrade cost
880 mm Z-travel adds 80 mm of depth over the prior model, accommodating taller workpieces and deeper cuts
70 m/min rapids with 1.2g acceleration significantly reduce non-cutting time for higher spindle utilization
500 x 500 mm pallet at 500 kg load handles larger workpieces and heavier tombstones than the 400mm class
High-rigidity bed design maintains accuracy during aggressive cutting in steel and cast iron
AMR 2000 and RPS NHX pallet system compatibility enables advanced autonomous production cells

Limitations

500 kg pallet load is reduced from the prior NHX 5000 model's 700 kg -- heavier tombstone setups may need the NHX 6300
40-tool standard magazine is lean for high-mix production -- plan for 60 or 120-tool expansion
Premium pricing over prior generation used units may not be justified for shops not utilizing the 20K RPM capability
MAPPS Fanuc control may not appeal to shops standardized on Siemens or Heidenhain platforms

Best For

Automotive production cells machining engine blocks, transmission housings, and powertrain components on 500mm pallets Aerospace component manufacturers needing high-speed capability for aluminum and mixed-material production Shops upgrading from prior NHX 5000 generations seeking faster rapids, standard 20K spindle, and expanded Z-travel Production cells targeting autonomous operation via AMR 2000 material handling and RPS pallet systems Medical and precision engineering manufacturers running tight-tolerance components requiring thermal stability

Frequently Asked Questions

01 What is new in the NHX 5000 4th Generation?

The 4th Generation standardizes the 20,000 RPM speedMASTER spindle, increases Z-travel from 800 to 880 mm, boosts rapids to 70 m/min with 1.2g acceleration, adds CELOS X with 27 apps, and introduces AMR 2000 autonomous material handling compatibility.

02 What does a new NHX 5000 4th Generation cost?

New machines price $400,000-$530,000 depending on tool magazine size, automation configuration, and control options.

03 NHX 5000 4th Generation vs NHX 4000 4th Generation?

The NHX 5000 offers a larger pallet (500 vs 400 mm), more travel (730x730x880 vs 560x560x660 mm), and 100 kg more load capacity. Both share the 20K RPM standard spindle and 70 m/min rapids. Choose the 5000 for larger parts; the 4000 for compact production cells.

04 What automation options are available?

RPS NHX pallet systems, CPP circular pallet pools, LPP linear pallet pools, and AMR 2000 autonomous mobile robots. Hydraulic and pneumatic interfaces are available for automated fixture clamping.
