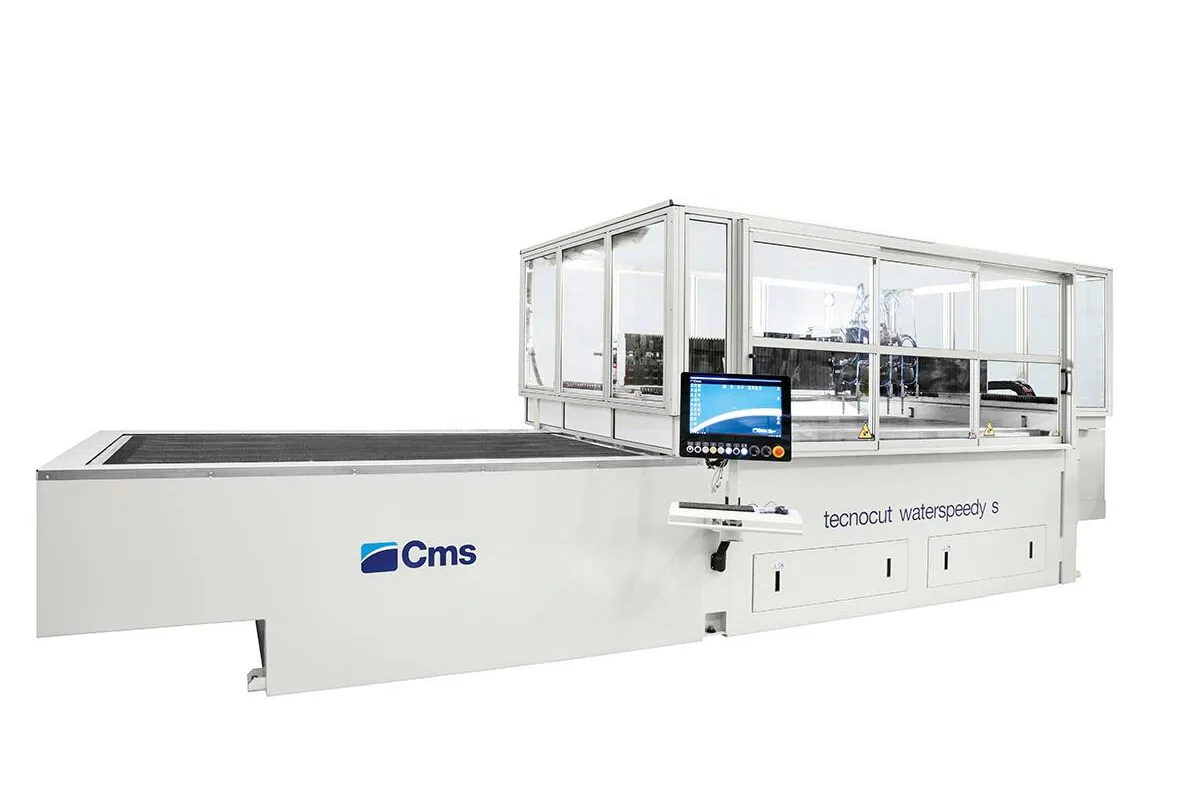

CMS Tecnocut Waterspeedy S
Image: cms.it, CMS
Key Specifications
model
x axis travel
y axis travel
z axis travel
b axis range
rapid speed
How much does the CMS Tecnocut Waterspeedy S cost?
Price estimate
We do not have a price for the CMS Tecnocut Waterspeedy S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CMS Tecnocut Waterspeedy S is a waterjet system for soft and layered materials, not for plate. CMS designs it for high-speed processing of plastics, industrial seals and technical materials, and it can carry from 3 to 7 pure waterjet heads that cut the same nest in parallel.
One model is listed, the 1630, with an X axis travel of 3000 mm (118 in), a Y axis travel of 1600 mm (63 in) and a support plane of 3000 x 1600 mm (118x63 in). The rapid speed is 72 m/min (236 ft/min) with an acceleration of 6 m/s2 (19 ft/s2), figures that matter here because gasket and foam nests consist of many short moves between small parts.
The multi-head arrangement is what raises output. The heads are 3-axis units whose spacing is set automatically by the NC, so a sheet or roll of foam is cut into several identical rows in one pass. For bevels there is a 5-axis head with a B axis of +/- 60°; with it the Z axis travel is 200 mm (8 in) instead of 300 mm (12 in).
Loading does not stop the cut. Two pallets with stainless steel honeycomb tops shuttle between separate loading and unloading zones under servo control, and the cutting area sits inside a soundproof cabin. The whole installation is long, with overall dimensions of 10300 x 4956 mm (405x195 in) including light barriers, though CMS says it can be moved without removing any mechanical part.
Full Specifications
| Parameter | Value |
|---|---|
| Model | 1630 |
| X Axis Travel | 3000 mm (118 in) |
| Y Axis Travel | 1600 mm (63 in) |
| Z Axis Travel | 300 mm (12 in); 200 mm (8 in) with 5-axis head |
| B Axis Range | +/- 60° |
| Rapid Speed | 72 m/min (236 ft/min) |
| Acceleration | 6 m/s2 (19 ft/s2) |
| Support Plane | 3000 x 1600 mm (118x63 in) |
| Overall Dimensions | 10300 x 4956 mm (405x195 in) with light barriers |
Specifications sourced from cms.it — verified 2026-10-05
Strengths & Limitations
Strengths
- From 3 to 7 pure waterjet heads with NC-controlled automatic spacing
- Rapid speed of 72 m/min (236 ft/min) and acceleration of 6 m/s2 (19 ft/s2)
- Automatic pallet change with separate loading and unloading zones
- Soundproof cabin around the cutting area
- Can be moved and transported without removing any mechanical part
Limitations
- Single size, with a 3000 x 1600 mm (118x63 in) support plane
- Z axis travel falls to 200 mm (8 in) with the 5-axis head
- Overall dimensions of 10300 x 4956 mm (405x195 in) with light barriers for a 3000 mm (118 in) X travel
- Described with pure waterjet heads, so it is not presented as an abrasive machine for metal or stone
Best For
Frequently Asked Questions
01
CMS describes it as a waterjet system designed specifically for the high-speed processing of plastics, layered materials, industrial seals and technical material. Its multi-head configuration is aimed at nesting of foam sheets and rolls.
02
CMS lists a cutting configuration with from 3 to 7 pure waterjet heads. The heads have 3 axes and their spacing is set automatically under NC control.
03
The 1630 model has an X axis travel of 3000 mm (118 in), a Y axis travel of 1600 mm (63 in) and a support plane of 3000 x 1600 mm (118x63 in). Z axis travel is 300 mm (12 in), or 200 mm (8 in) with the 5-axis head.
04
Through an automatic, built-in pallet change system. There are separate loading and unloading zones with a servo motor for pallet handling, and both pallets have a stainless steel honeycomb top, so loading takes place while the machine is running.
