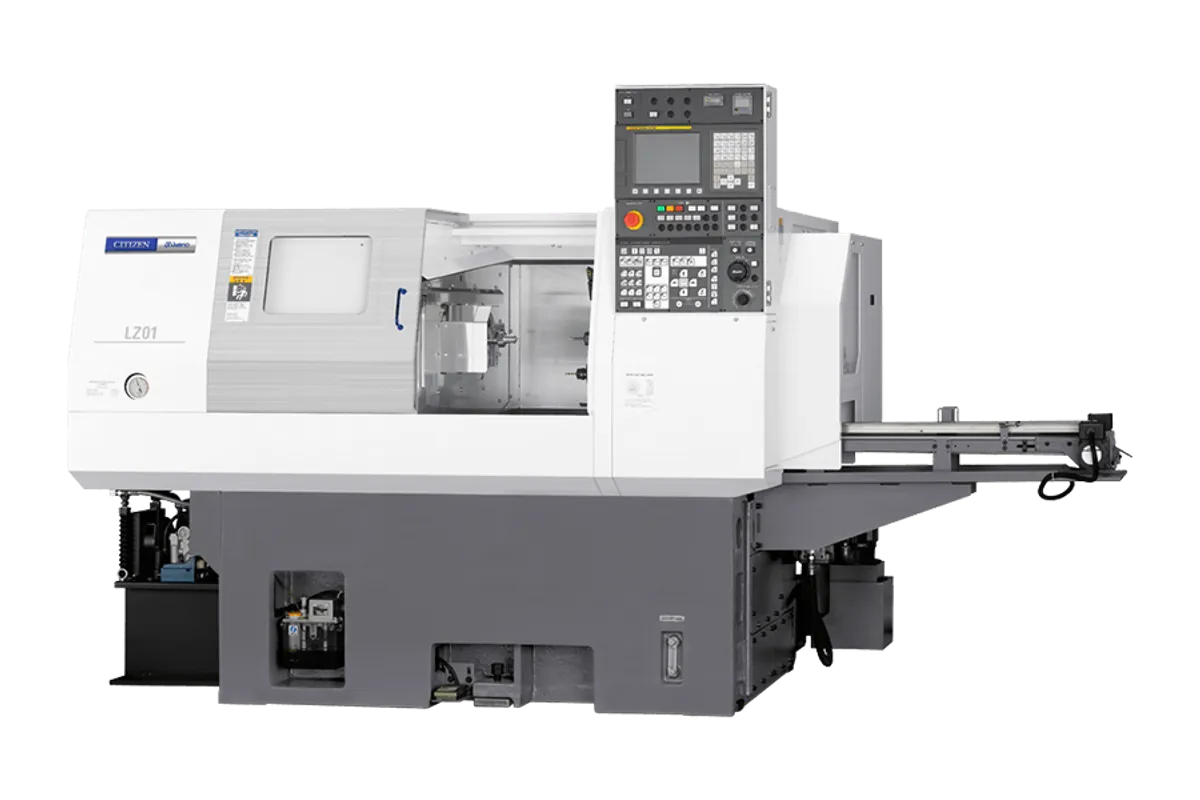

Citizen Miyano LZ-01

$65,000 - $95,000 Updated 2026-03-19

Key Specifications

Max Turn Length

80 mm (3.15 in)

max turning diameter

70 mm (2.76 in)

main spindle speed

6,000 RPM

spindle motor

7.5 / 5.5 kW (10 / 7.5 HP)

number of axes

2 (X, Z)

turret positions

Overview

The Citizen Miyano LZ-01 is an autoloaded precision CNC lathe designed for high-accuracy, high-throughput machining of small chucked parts up to 70mm diameter. The LZ series combines Miyano fixed-headstock precision with an integrated autoloading system for semi-unattended production without manual loading.

The LZ-01 features a 12-station turret with up to 6 driven tool positions for milling and cross-drilling alongside turning. The main spindle reaches 6,000 RPM with 7.5/5.5 kW power. The 6-inch hydraulic chuck provides secure, repeatable clamping.

The integrated autoloader loads individual workpieces (blanks, forgings, or pre-machined parts), processes them, and unloads finished parts. This architecture suits parts that cannot be produced from bar stock due to size, shape, or material constraints.

Miyano construction applies throughout: thermally symmetric cast iron base, precision-ground slideways, delivering dimensional stability across long production runs without operator intervention.

The LZ-01 excels at high-volume precision chucked parts: bearing races, valve seats, gear blanks, and components where autoloading eliminates operator-dependent throughput limitations.

Full Specifications

Parameter	Value
Max Turning Diameter	70 mm (2.76 in)
Max Turning Length	80 mm (3.15 in)
Main Spindle Speed	6,000 RPM
Spindle Motor	7.5 / 5.5 kW (10 / 7.5 HP)
Number Of Axes	2 (X, Z)
Turret Positions	12
Chuck Size	6-inch hydraulic
Rapid Traverse X	15 m/min
Rapid Traverse Z	20 m/min
Machine Weight	Approx.
CNC Control	Mitsubishi M80 (Citizen Miyano)
Max Revolving Tools	6
Floor Space	2,100×1,555mm
Items	LZ-01R2
Power Chuck Size	6" hydraulic drive
Maximum Turning Diameter Power Chuck	70mm Dia.
Maximum Diameter Of Collet Chuck	50mm Dia.
Maximum Machining Length	80mm
Main Spindle Speed Range	60 - 6,000min-1
Main Spindle Motor	7.5/5.5kW
Main Spindle Slide Travel	X axis
Z Axis	240mm
Type Of Turret	12St.Turret
Shank Height Of Square Turning Tool	20mm Sq.
Tool Hole Diameter	25mm Dia.
Maximum Number Of Revolving Tools	6
Slide Stroke	Y axis
Maximum Work Size	70mm Dia.×80mm Dia.
Maximum Work Weight	0.7kg×2
Machine Height	1,680mm
Sliding Headstock Type	A20
Bar Work	BNC42
Turning Machine	BNA42CY
High Precision Turning Machines	BNA42SY
Multi Station Machining Cell	MC20 III
Main Spindle Slide Travel X Axis	245mm
Main Spindle Slide Travel Z Axis	240mm
Machine Weight Approx	4,000kg
Slide Stroke Y Axis	±35mm
Inquiries	Feel free to get in touch with us by phone or online if you have any questions or need advice about any of our products or services.

Specifications sourced from cmj.citizen.co.jp — verified 2026-03-28

Strengths & Limitations

Strengths

[object Object]
[object Object]
[object Object]
[object Object]
[object Object]

Limitations

[object Object]
[object Object]
[object Object]
[object Object]

Best For

Watch and clock component manufacturers requiring micron-level precision on miniature turned parts Medical device shops producing small implant components, surgical tool tips, and micro connectors Electronics manufacturers machining precision connector pins, terminal components, and sensor housings Instrument makers producing optical mounts, precision bushings, and calibration components Shops specializing in miniature precision parts where accuracy takes priority over versatility

Frequently Asked Questions

01 What does a Citizen Miyano LZ-01 cost?

A new Citizen Miyano LZ-01 typically costs between $45,000 and $65,000. Its specialized nature and limited production volume mean it holds value well on the used market, with machines from 2015-2020 fetching $25,000-$40,000.

02 What accuracy can the LZ-01 achieve?

The LZ-01 achieves positioning accuracy of ±2 microns and repeatability of ±0.5 microns. Turning roundness on stable materials is typically within 1 micron. These specifications make it suitable for the most demanding micro-turning applications.

03 Can the LZ-01 machine hardened materials?

The LZ-01 can machine pre-hardened materials up to approximately 40 HRC with CBN or ceramic inserts, but the low spindle power limits this to very light finishing cuts. For hard turning of larger features, a more powerful machine is recommended.

04 How does the LZ-01 compare to a collet-type micro lathe?

The LZ-01 offers better rigidity and thermal stability than most collet-type micro lathes, with a more capable CNC control system. Collet-type machines may be more economical for very simple parts, but the LZ-01's turret and CNC capability provide greater versatility for multi-feature miniature parts.

05 Is the LZ-01 suitable for production volumes?

Yes, the LZ-01 is designed for production use despite its small size. The reliable Mitsubishi control, quick turret indexing, and thermal stability enable consistent quality across production runs. Adding a compact bar feeder or parts loader enables semi-unattended operation.
