Citizen Miyano ABX-80THY
This model was not found in Citizen Machinery's current lineup when we checked on 2026-10-03 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

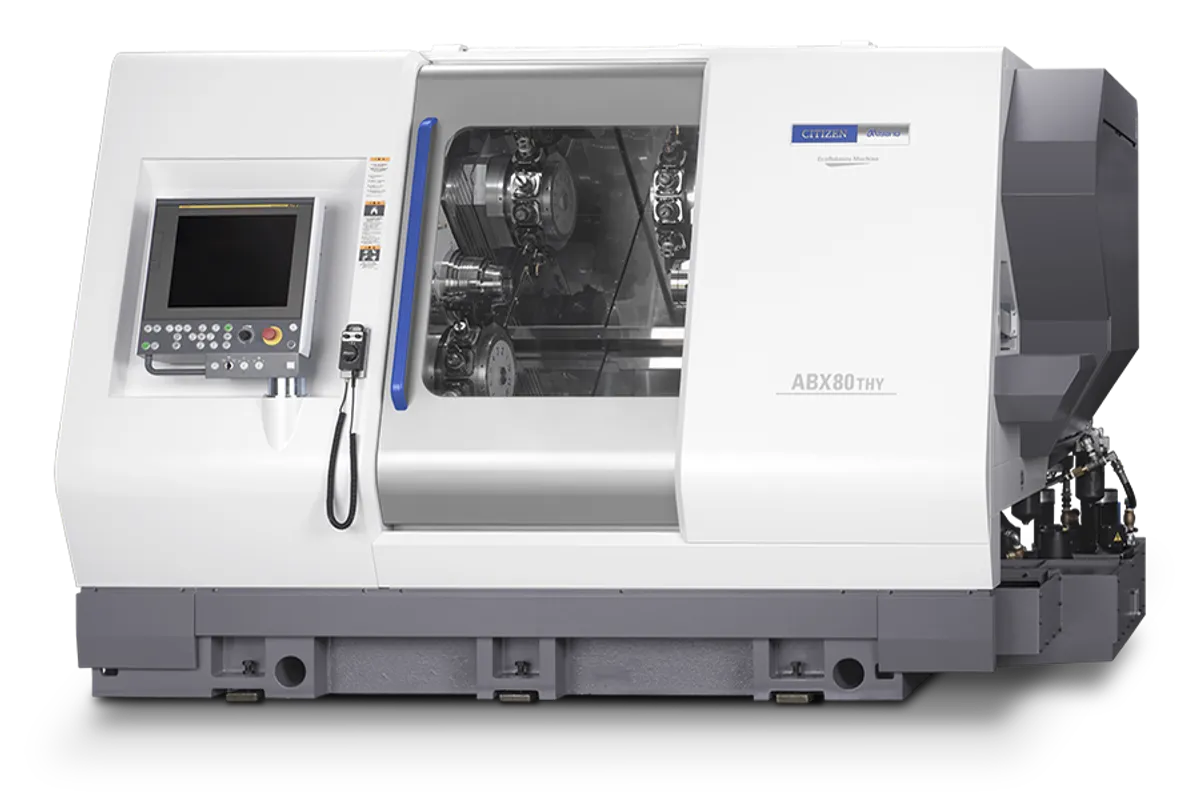

Image: cmj.citizen.co.jp, Citizen Machinery
Key Specifications
Max Turn Length
max bar capacity
max machining diameter
main spindle speed
main spindle power
sub spindle speed
How much does the Citizen Miyano ABX-80THY cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from Citizen Machinery. Configuration moves it a long way.
Overview
The Miyano ABX-80THY takes bar work to 80 mm (3.15 in) on its main spindle and 65mm Dia. on its second spindle, and machines it with three 12-station turrets that each have a Y axis. Both spindles are rated 18.5 / 15 kW (25 / 20 HP). Citizen's current lineup does not include the ABX-80THY, so a buyer will usually be assessing a used machine.
The main spindle runs to 4,000 RPM and the second spindle to 5,000 RPM. At 80 mm (3.15 in) the spindle limit rarely matters for turning the full bar diameter; it matters more for small features at the end of the part, where the second spindle's higher speed helps. With matched motors, roughing does not have to stay on the main side.
Tooling capacity is the strong point: 36 stations, any of which can hold a revolving tool, driven to 6,000 RPM. Every turret moves 190mm in X and 80 (±40) mm in Y. Turret 2 reaches 550mm in Z, and turrets 1 and 3 270mm each. Rapids are 20 m/min on X, 30 m/min on Z and 12 m/min on Y, and the Zs axis has a 756mm stroke with 1031mm between spindle faces.
Chuck work is listed to 350 mm (13.78 in) in diameter and 250 mm (9.84 in) in length, with 6-inch power chucks. The ABX-80THY weighs 11,300kg, needs 3,260×2,200mm of floor and stands 2,210mm tall; the control is listed as FANUC.
Full Specifications
| Parameter | Value |
|---|---|
| Max Bar Capacity | 80 mm (3.15 in) |
| Max Machining Diameter | 80 mm (3.15 in) |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Power | 18.5 / 15 kW (25 / 20 HP) |
| Sub Spindle Speed | 5,000 RPM |
| Sub Spindle Power | 18.5 / 15 kW (25 / 20 HP) |
| Chuck Size | 6-inch power chuck |
| Number of Turrets | 3 |
| Turret Stations | 12 per turret (36 total) |
| Max Driven Tools | 12 per turret (36 total) |
| Y Axis Stroke | 80 mm (+/- 40 mm) |
| X Axis Travel | 190 mm (7.48 in) |
| Z1 Axis Travel | 270 mm (10.63 in) |
| Z2 Axis Travel | 550 mm (21.65 in) |
| Z3 Axis Travel | 270 mm (10.63 in) |
| Rapid Traverse X | 20 m/min |
| Rapid Traverse Z | 30 m/min |
| Rapid Traverse Y | 12 m/min |
| Floor Space | 3,260×2,200mm |
| Machine Weight | 11,300kg |
| CNC Control | FANUC |
| Items | ABX-65THY3 |
| Distance Between Spindle End Faces | 1031mm |
| Sp2 | 5,000min-1 |
| Type of Turret | 12St.Turret |
| Dimensions of Tools Used | □ 20 |
| Dimensions of Tool Mounting Holes | φ 25 |
| Slide Stroke | X1,X2,X3 axis |
| Z1 Axis | 270mm |
| Z2 Axis | 550mm |
| Z3 Axis | 270mm |
| Y1y2y3 Axis | 80（±40） |
| Zs Axis | 756mm |
| Maximum Number of Revolving Tools | 12/12/12 |
| Machine Height | 2,210mm |
| Maximum Machining Diameter of Bar Work Sp1 Sp2 | 80mm Dia./65mm Dia. |
| Power Chuck Sp1 Sp2 | 6"POWER CHUCK |
| Spindle Motor Sp1sp2 | 18.5/15 kW |
| Spindle Speed Range Sp1 | - 4,000min-1 |
| Spindle Speed Range Sp2 | - 5,000min-1 |
| Slide Stroke X1x2x3 Axis | 190mm |
| Slide Stroke Z1 Axis | 270mm |
| Slide Stroke Z2 Axis | 550mm |
| Slide Stroke Z3 Axis | 270mm |
| Slide Stroke Y1y2y3 Axis | 80（±40） |
| Slide Stroke Zs Axis | 756mm |
| Max Turning Diameter | 350 mm (13.78 in) chuck work |
| Max Turning Length | 250 mm (9.84 in) |
| Live Tool Speed | 6,000 RPM |
| Number of Axes | 13+ (X1, Z1, Y1, C1, X2, Z2, Y2, C2, X3, Z3 + turret indexing) |
| Turret Positions | 36 (12 per turret, all with live tooling) |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Bar work to 80 mm (3.15 in) on the main spindle and 65mm Dia. on the second
- Main and second spindles both rated 18.5 / 15 kW (25 / 20 HP)
- 36 turret stations in three 12-station turrets, all able to carry revolving tools
- Y axis with an 80 (±40) mm stroke on every turret
- Chuck work to 350 mm (13.78 in) in diameter and 250 mm (9.84 in) in length
Limitations
- Main spindle limited to 4,000 RPM
- Second-spindle bar work is listed to 65mm Dia., below the main spindle's 80 mm (3.15 in)
- 11,300kg on 3,260×2,200mm of floor
- Y rapid of 12 m/min against 30 m/min on Z
Best For
Frequently Asked Questions
01
80 mm (3.15 in) on the main spindle and 65mm Dia. on the second spindle. The main spindle runs to 4,000 RPM and the second to 5,000 RPM, both with 18.5 / 15 kW (25 / 20 HP) motors and 6-inch power chucks.
02
The Miyano ABX-65THY is listed for chuck work to 300 mm (11.81 in) in diameter and 200 mm (7.87 in) in length, with a Z rapid of 24 m/min. The ABX-80THY is listed for 350 mm (13.78 in) and 250 mm (9.84 in), with 30 m/min on Z. Both weigh 11,300kg and have 36 turret stations.
03
The Miyano ABX-80SYY has two 12-station turrets, 24 stations, and weighs 10,900kg. Both are listed for chuck work to 350 mm (13.78 in) in diameter and 250 mm (9.84 in) in length. The ABX-80THY adds a third turret, for 36 stations, at 11,300kg.
04
X travel is 190mm on all three turrets, each with a Y stroke of 80 (±40) mm. Z travel is 270mm on Z1 and Z3 and 550mm on Z2, and the Zs axis has 756mm. The spindle end faces are 1031mm apart.
