Overview

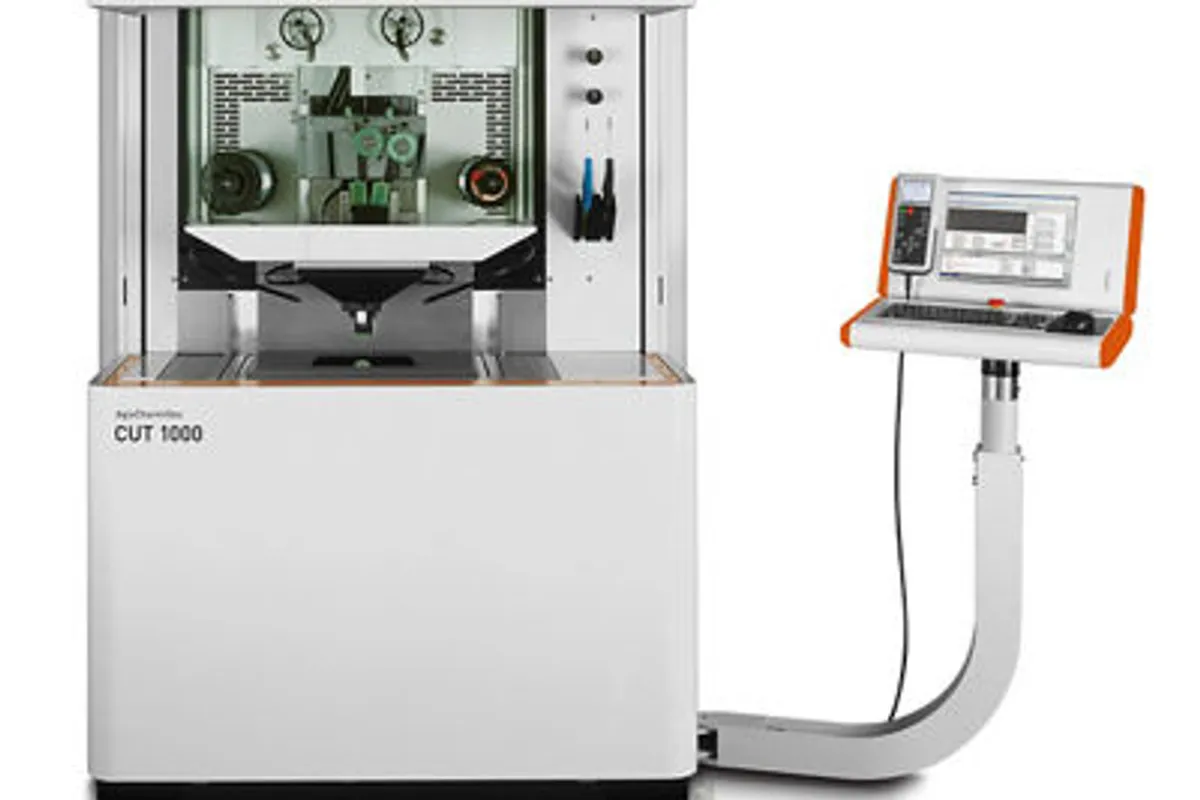

The GF AgieCharmilles CUT 1000 is the large-format wire EDM in the AgieCharmilles lineup, designed for shops that need to cut big parts without compromise. With 1,000 x 550 x 400 mm (39.4 x 21.7 x 15.7 in) of X/Y/Z travel, this machine handles the kind of work that compact wire EDMs simply cannot reach: large progressive die plates, automotive stamping dies, extrusion tooling, and oversized mold components.
The IPG (Intelligent Power Generator) delivers up to 350 mm2/min cutting speed on standard tool steel. That is serious throughput for large-format work where cutting times can extend into hours or days. The generator maintains excellent surface finish quality at these speeds, with Ra 0.10 um (4 uin) achievable through standard skim pass strategies.
The table handles workpieces up to 1,500 x 1,000 x 400 mm (59.1 x 39.4 x 15.7 in) and 3,000 kg (6,614 lb). That covers virtually all progressive die work and most large mold plates. The oversized work tank provides comfortable clearance around large workpieces for dielectric circulation.
Intelligent Collision Protection (ICP) is essential on a machine this size. The system monitors all axes in real time and stops before damage occurs. Combined with the UNIQUA HMI job scheduling and automatic wire threading, the CUT 1000 runs multi-day jobs unattended.
Positioning accuracy is maintained at 3 um across the full 1,000 mm X-travel. The machine handles wire diameters from 0.10 to 0.33 mm. U/V travel is +/-75 mm for taper cutting up to +/-30 degrees.
New CUT 1000 machines price between $250,000 and $350,000. Used machines from 2015-2021 trade in the $120,000-$200,000 range.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,000 mm (39.4 in) |
| Y-Axis Travel | 550 mm (21.7 in) |
| Z-Axis Travel | 400 mm (15.7 in) |
| U Axis | +/-75 mm (+/-2.95 in) |
| V Axis | +/-75 mm (+/-2.95 in) |
| Max Taper Angle | +/-30 deg at 100 mm height |
| Max Workpiece Size | 1,500 x 1,000 x 400 mm (59.1 x 39.4 x 15.7 in) |
| Max Workpiece Weight | 3,000 kg (6,614 lb) |
| Wire Diameter Range | 0.10 - 0.33 mm (0.004 - 0.013 in) |
| Surface Finish | Ra 0.10 um (4 uin Ra) achievable |
| Positioning Accuracy | 3 um |
| Max Cutting Speed | 350 mm2/min (54 in2/hr) |
| CNC Control | UNIQUA HMI (touchscreen) |
| Generator | IPG (Intelligent Power Generator) |
| Collision Protection | ICP (Intelligent Collision Protection) |
| Machine Weight | 8,500 kg (18,739 lb) without dielectric |
| Machine Dimensions | 4,200 x 3,100 x 2,450 mm (165.4 x 122.0 x 96.5 in) |
Specifications sourced from gfms.com — verified 2026-03-28
