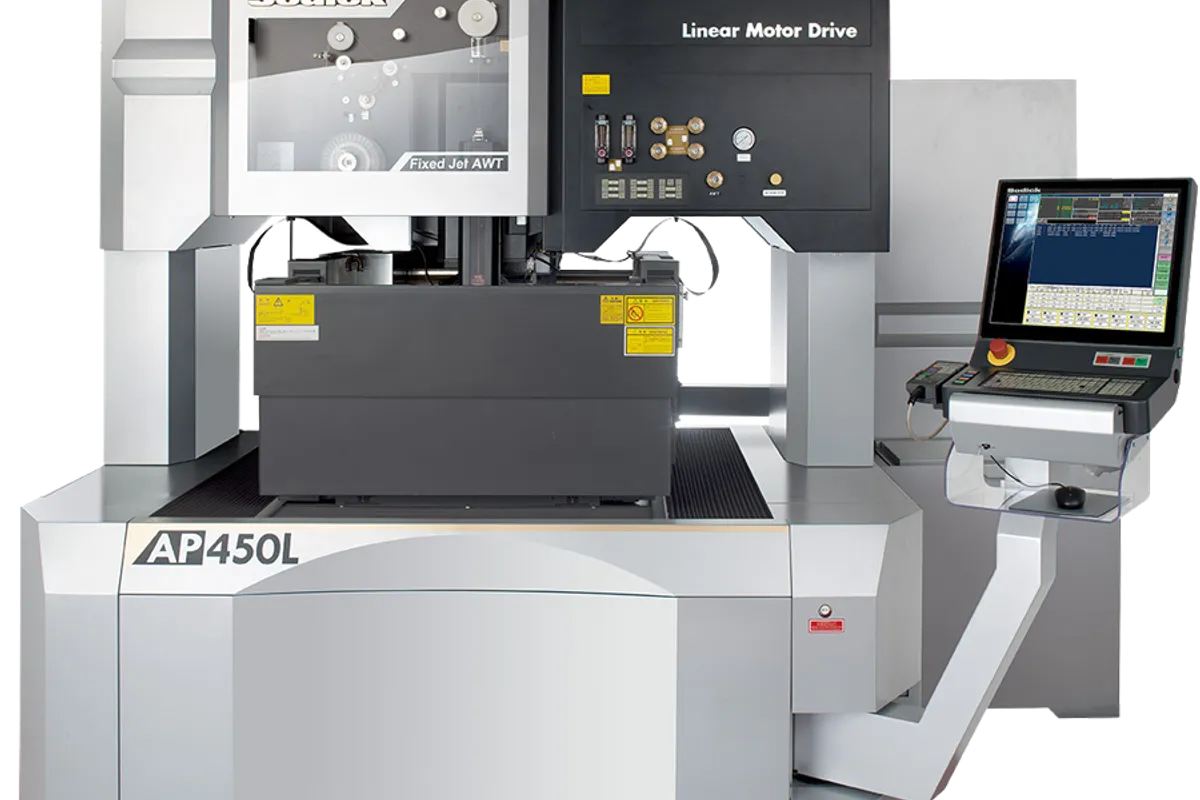

Sodick AP450L
Image: sodick.co.jp, Sodick
Key Specifications
X Travel
Y Travel
Z Travel
uv axis travel
wire diameter
max workpiece weight
How much does the Sodick AP450L cost?
Estimated price range
Our best estimate for a wire edm in this class — not a quote from Sodick. Configuration moves it a long way.
Overview
The Sodick AP450L is a precision wire EDM with 17.72 in (450 mm) of X, 11.81 in (300 mm) of Y and 5.91 in (150 mm) of Z travel. It pairs a mid-size plan area with a low Z and a light workpiece limit of 220.5 lb (100 kg), so it is aimed at thin, accurate parts rather than heavy blocks.
Machine weight is the figure that stands out. At 14,109.6 lb (6,400 kg) the AP450L is close to twice as heavy as the AL400P, which is listed at 7,496 lb (3,400 kg) with 15.78 in (400 mm) by 11.81 in (300 mm) by 9.84 in (250 mm) of travel. The AL400P offers more Z; the AP450L offers more X on a far heavier machine. The smaller AP250L, at 9.84 in (250 mm) by 5.91 in (150 mm) by 4.72 in (120 mm) and 8,223 lb (3,730 kg), is the alternative for very small parts.
Wire runs from 0.002 in to 0.010 in (0.05 - 0.25 mm). U/V travel is 1.38 in × 1.38 in (35 × 35 mm), which restricts how much taper can be cut on thicker plate. The machine measures 90.16 in × 70.08 in × 85.43 in (2,290 × 1,780 × 2,170 mm) with the table at 43.31 in (1,100 mm). The listed table gives no taper angle, power supply or flushing versus submerged limits.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 17.72 in (450 mm) |
| Y-Axis Travel | 11.81 in (300 mm) |
| Z-Axis Travel | 5.91 in (150 mm) |
| Uv Axis Travel | 1.38 in × 1.38 in (35 × 35 mm) |
| Wire Diameter | 0.002 in - 0.010 in (0.05 - 0.25 mm) |
| Max Workpiece Weight | 220.5 lb (100 kg) |
| Floor to Table | 43.31 in (1,100 mm) |
| Floor Space Required | 90.16 in × 70.08 in × 85.43 in (2,290 × 1,780 × 2,170 mm) |
| Machine Weight | 14,109.6 lb (6,400 kg) |
Specifications sourced from sodick.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 17.72 in × 11.81 in (450 × 300 mm) of X/Y travel with a wire range of 0.002 in - 0.010 in (0.05 - 0.25 mm)
- A 14,109.6 lb (6,400 kg) machine for 220.5 lb (100 kg) workpieces, against 7,496 lb (3,400 kg) for the AL400P
- Floor footprint of 90.16 in × 70.08 in (2,290 × 1,780 mm) for a 450 mm X machine
Limitations
- Z travel of 5.91 in (150 mm), against 9.84 in (250 mm) on the AL400P
- Workpieces limited to 220.5 lb (100 kg)
- U/V travel of 1.38 in × 1.38 in (35 × 35 mm) and no taper angle listed
- At 14,109.6 lb (6,400 kg), floor loading must be checked before delivery
Best For
Frequently Asked Questions
01
The AP450L has 17.72 in (450 mm) of X, 11.81 in (300 mm) of Y and 5.91 in (150 mm) of Z, a 220.5 lb (100 kg) workpiece limit and a machine weight of 14,109.6 lb (6,400 kg). The AP250L is listed with 9.84 in (250 mm), 5.91 in (150 mm) and 4.72 in (120 mm) of travel and 8,223 lb (3,730 kg) of machine weight.
02
Z travel is 5.91 in (150 mm), which sets the practical ceiling on plate thickness. For taller blocks the AL400P, with 9.84 in (250 mm) of Z, is the closer fit; the AP450L suits thinner parts within 220.5 lb (100 kg).
03
The machine measures 90.16 in × 70.08 in × 85.43 in (2,290 × 1,780 × 2,170 mm) and weighs 14,109.6 lb (6,400 kg), with the table 43.31 in (1,100 mm) above the floor. Sodick's table does not list a power requirement, so ask for it before preparing the site.
