Chevalier SMART-H/B2064IV

Q: How much does the Chevalier SMART-H/B2064IV cost?

The price estimate for the Chevalier SMART-H/B2064IV is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chevalier-smart-h-b2064iv#price; the request is passed to Chevalier Machinery or an authorised dealer.

Specs verified 2026-10-05 · chevalierusa.com Updated 2026-10-05

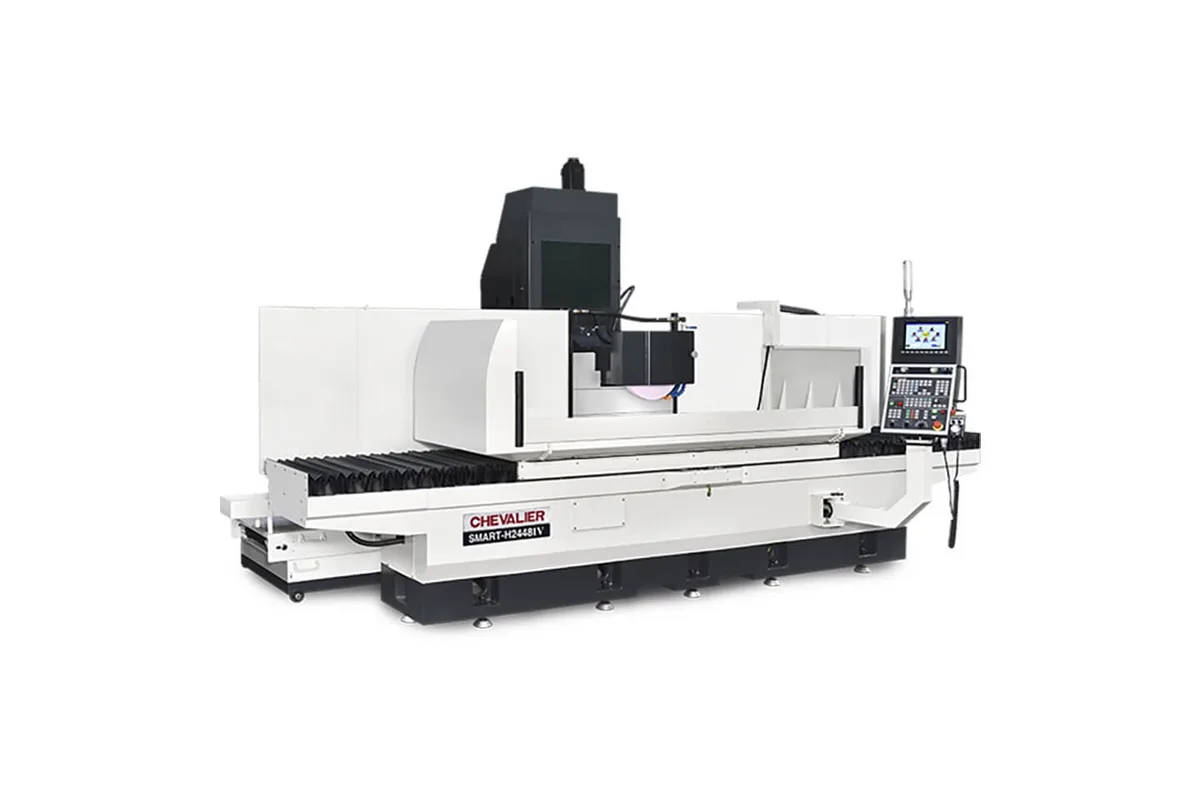

Image: chevalierusa.com, Chevalier Machinery

Key Specifications

Spindle Power

15 hp (11 kW)

control

SMART iControl

grinding length

63.0 in (1,600 mm)

grinding width

19.7 in (500 mm)

distance table to wheel centerline

28.7 in (730 mm)

max table load

3,483 lb (1,580 kg)

How much does the Chevalier SMART-H/B2064IV cost?

Price estimate

Uncertain

We do not have a price for the Chevalier SMART-H/B2064IV that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Chevalier SMART-H/B2064IV is the long-table version of the 20 in wide SMART-IV grinder, with a grinding area of 63.0 in (1,600 mm) by 19.7 in (500 mm). It is the SMART-H/B2048IV stretched by roughly a third: the same width, the same 28.7 in (730 mm) under the wheel centerline, the same spindle, and 66.9 in (1,700 mm) of table travel in place of 51.2 in (1,300 mm).

The longer table carries more as well. Its rating is 3,483 lb (1,580 kg), and the machine weighs 17,600 lb (8,000 kg). For a shop the question is simply whether parts run past the 47.2 in (1,200 mm) of the SMART-H/B2048IV. If they do not, the shorter machine does the same work on less floor. If they do, this is the smallest SMART-IV model that takes them without going to the wider frame.

Cutting is done by a 15 hp (11 kW) spindle with speed variable from 500 to 1,800 rpm and a Ø14 in x 2 in x Ø5 in wheel. Cross travel is 22.0 in (560 mm) at a feed speed of 0 to 10 fpm. The table runs at 16 to 98.4 fpm on the H version and 0 to 65.6 fpm on the B version.

Chevalier's feature list for the series applies here: hand-scraped, Turcite-B coated double V ways on both horizontal axes, automatic dressing with compensation, and USB or Ethernet data transfer. Two rows of the maker's table for this model, table size and floor space, carry figures that contradict each other between the inch and metric columns and are not repeated on this page. Get both from a layout drawing.

Full Specifications

Parameter	Value
CNC Control	SMART iControl
Grinding Length	63.0 in (1,600 mm)
Grinding Width	19.7 in (500 mm)
Distance Table to Wheel Centerline	28.7 in (730 mm)
Max Table Load	3,483 lb (1,580 kg)
Table Speed	H: 16 to 98.4 fpm / B: 0 to 65.6 fpm (H: 5 to 30 m/min / B: 0 to 20 m/min)
Longitudinal Travel X	66.9 in (1,700 mm)
Cross Travel Z	22.0 in (560 mm)
Cross Feed Speed	0 to 10 fpm (0 to 3,000 mm/min)
Spindle Speed	500 to 1,800 rpm
Spindle Motor Power	15 hp (11 kW)
Wheel Size	Ø14 in x 2 in x Ø5 in (Ø355 x 50 x Ø127 mm)
Machine Weight	17,600 lb (8,000 kg)

Specifications sourced from chevalierusa.com — verified 2026-10-05

Strengths & Limitations

Strengths

63.0 in (1,600 mm) grinding length on the 20 in wide frame
Table load of 3,483 lb (1,580 kg)
66.9 in (1,700 mm) of table travel gives run-off at both ends of a full-length part
Same 15 hp (11 kW) spindle and 14 in wheel as the SMART-H/B2048IV, so wheels and dressing setups carry over
Double V, Turcite-B coated ways on both the longitudinal and cross-feed axes

Limitations

No reliable floor space or table size figure in the maker's table for this model
Grinding width stays at 19.7 in (500 mm)
Spindle speed range ends at 1,800 rpm
Weighs 17,600 lb (8,000 kg)

Best For

Long plates, bars and rails up to 63.0 in (1,600 mm) Press-brake tooling and guide rails ground in one pass length Several shorter parts lined up along the table Shops that need length but not the wider, heavier frame

Frequently Asked Questions

01 How does the SMART-H/B2064IV differ from the SMART-H/B2048IV?

Length and load. The SMART-H/B2064IV grinds 63.0 in (1,600 mm) with 66.9 in (1,700 mm) of table travel and carries 3,483 lb (1,580 kg). The SMART-H/B2048IV grinds 47.2 in (1,200 mm) with 51.2 in (1,300 mm) of travel and carries 2,755 lb (1,250 kg). Width, clearance, spindle and wheel are the same.

02 What spindle does the SMART-H/B2064IV have?

A 15 hp (11 kW) spindle motor with speed variable from 500 to 1,800 rpm, turning a wheel of Ø14 in x 2 in x Ø5 in (Ø355 x 50 x Ø127 mm). The maker describes a cartridge type spindle with four Class 7 (P4) angular contact ball bearings.

03 How much clearance is there under the wheel?

The distance from the table to the centerline of the wheel is 28.7 in (730 mm). Subtract half the wheel diameter and the height of the chuck to find the tallest part or fixture that will pass under a new wheel.

04 Why is no footprint given for this model?

The maker's floor space row for this model prints inch and metric figures that do not agree with each other, and its table size row has the same problem. The machine weighs 17,600 lb (8,000 kg). Ask Chevalier for a foundation drawing before planning the installation.
