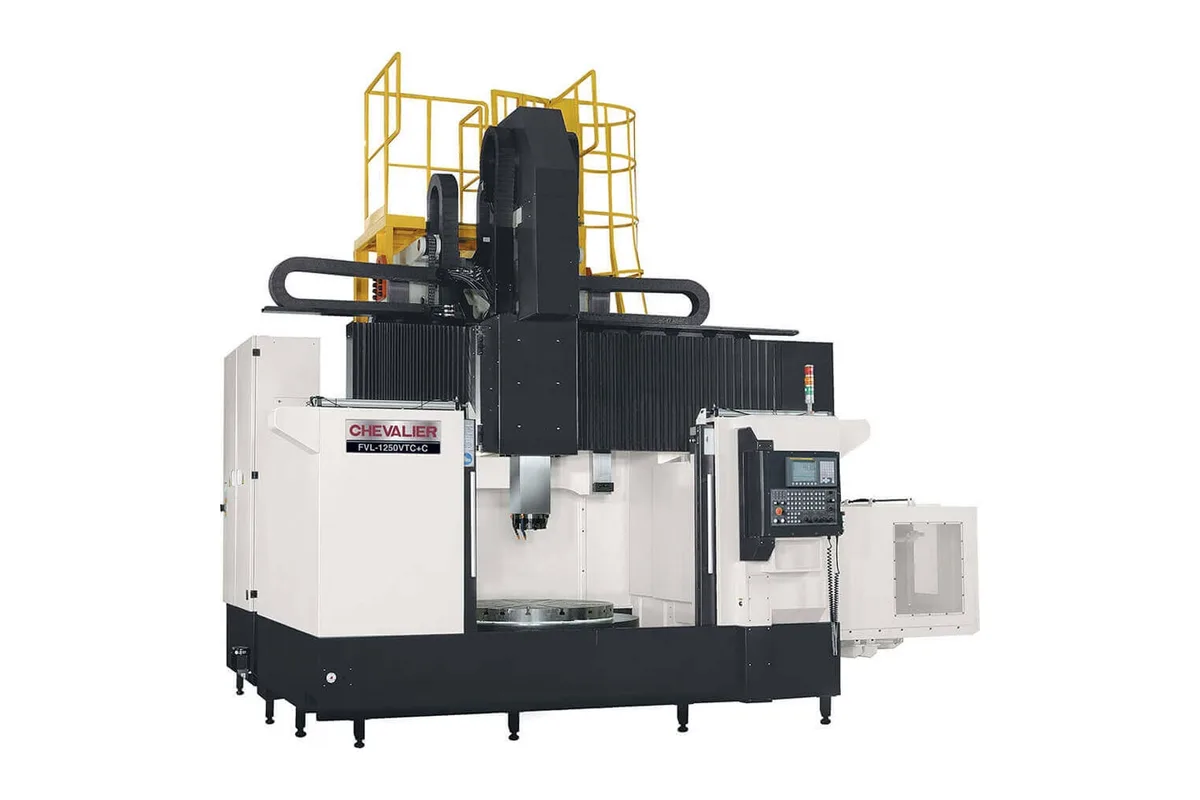

Chevalier FVL-1250VTC
Image: chevalierusa.com, Chevalier Machinery
Key Specifications
Spindle Taper
control
max swing diameter
max turning diameter
max turning height
max torque
How much does the Chevalier FVL-1250VTC cost?
Price estimate
We do not have a price for the Chevalier FVL-1250VTC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Chevalier FVL-1250VTC is a vertical turning lathe with a 49.2 in (1,250 mm) table that swings and cuts 63.0 in (1,600 mm) in diameter. It is the smallest of three FVL sizes, and at 48,500 lb (22,000 kg) it is still a foundation machine built for heavy rings, flanges, housings and discs up to 17,600 lb (8,000 kg).
The table has two speed ranges, High: 151 to 300 rpm and Low: 3 to 150 rpm, and a maximum torque of 11,461 Nm. Low range is for large diameters and interrupted roughing, high range for finishing smaller bores. Maximum turning height is 47.2 in (1,200 mm).
The tool is carried in a square ram on a cross beam. X travel is given as -26.2 in, +37.8 in, which means the ram passes the table centre, as it must for facing to centre and boring. Z travel is 35.4 in (900 mm), and the beam itself moves 31.5 in (800 mm) on the W axis to bring the ram closer to short work. Chevalier describes the beam elevation as driven by a large diameter ball screw that locks at any position, and the ram as a box-in-box design with box way contact on four sides.
Tools are BT50 in a disk type changer, up to 19.7 in (500 mm) long, with a 30 sec change. A coupling type clamping system with 8 hydraulic locking pins holds the tool during heavy stock removal. Floor space is 294.5 in x 232.3 in x 219.7 in, so the building has to clear a machine over 18 feet tall. The control is a Fanuc 0i-T.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | Fanuc 0i-T |
| Max Swing Diameter | 63.0 in (1,600 mm) |
| Max Turning Diameter | 63.0 in (1,600 mm) |
| Max Turning Height | 47.2 in (1,200 mm) |
| Max Torque | 11,461 Nm (8,454 lb-ft) |
| Max Table Load | 17,600 lb (8,000 kg) |
| Table Diameter | 49.2 in (1,250 mm) |
| Table Speed | High: 151 to 300 rpm / Low: 3 to 150 rpm |
| Height Table to Floor | 35.4 in (900 mm) |
| Spindle Taper | ISO 7/24 No.50 |
| Distance Spindle Nose to Table | 55.1 in (1,400 mm) |
| X Axis Travel | -26.2 in, +37.8 in (-665 mm, +960 mm) |
| Z Axis Travel | 35.4 in (900 mm) |
| W Axis Beam Travel | 31.5 in (800 mm) |
| Rapid Traverse X Z | 393 ipm (10 m/min) |
| C Axis Cutting Feed | 0 to 1,200 deg./min |
| W Axis Rapid Traverse | 28 ipm (720 mm/min) |
| Tool Shank | BT50 |
| Pull Stud | JMBTA standard 45° |
| Tool Changer Type | Disk type |
| Max Tool Diameter (full magazine) | Ø11 in (full cutter state); Ø280 mm (full cutter state) |
| Max Tool Length | 19.7 in (500 mm) |
| Tool Change Time Chip to Chip | 30 sec |
| Machine Dimensions | 294.5 in x 232.3 in x 219.7 in (7,480 x 5,900 x 5,580 mm) |
| Machine Weight | 48,500 lb (22,000 kg) |
Specifications sourced from chevalierusa.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 63.0 in (1,600 mm) swing and cutting diameter on a 49.2 in (1,250 mm) table
- Table load of 17,600 lb (8,000 kg) with 11,461 Nm of torque
- Two table speed ranges, 3 to 150 rpm and 151 to 300 rpm, the fastest table in the FVL series
- Cross beam travels 31.5 in (800 mm) on the W axis and locks at any position
- Tool clamping by a coupling system with 8 hydraulic locking pins
Limitations
- Stands 219.7 in (5,580 mm) high and weighs 48,500 lb (22,000 kg)
- Tool change takes 30 sec, slow where many tools are used on one part
- Rapid traverse on X and Z is 393 ipm (10 m/min)
- Live tooling and a C axis need the FVL-1250VTC+C
Best For
Frequently Asked Questions
01
Maximum swing and cutting diameter are both 63.0 in (1,600 mm) and maximum turning height is 47.2 in (1,200 mm). The table is 49.2 in (1,250 mm) in diameter and carries 17,600 lb (8,000 kg).
02
The table speed range is listed as High: 151 to 300 rpm and Low: 3 to 150 rpm. Maximum torque is 11,461 Nm. The two ranges let the machine hold a sensible surface speed from the outside of a large disc to a small bore.
03
X travel is -26.2 in, +37.8 in (-665 mm, +960 mm) about the table centre, Z travel is 35.4 in (900 mm), and the W axis beam travel is 31.5 in (800 mm). X and Z rapid traverse is 393 ipm (10 m/min) and the beam moves at 28 ipm (720 mm/min).
04
BT50 tool shanks in a disk type automatic tool changer. Maximum tool length is 19.7 in (500 mm), and tool change time is 30 sec chip to chip. The maker's table does not state how many tools the disk holds.
