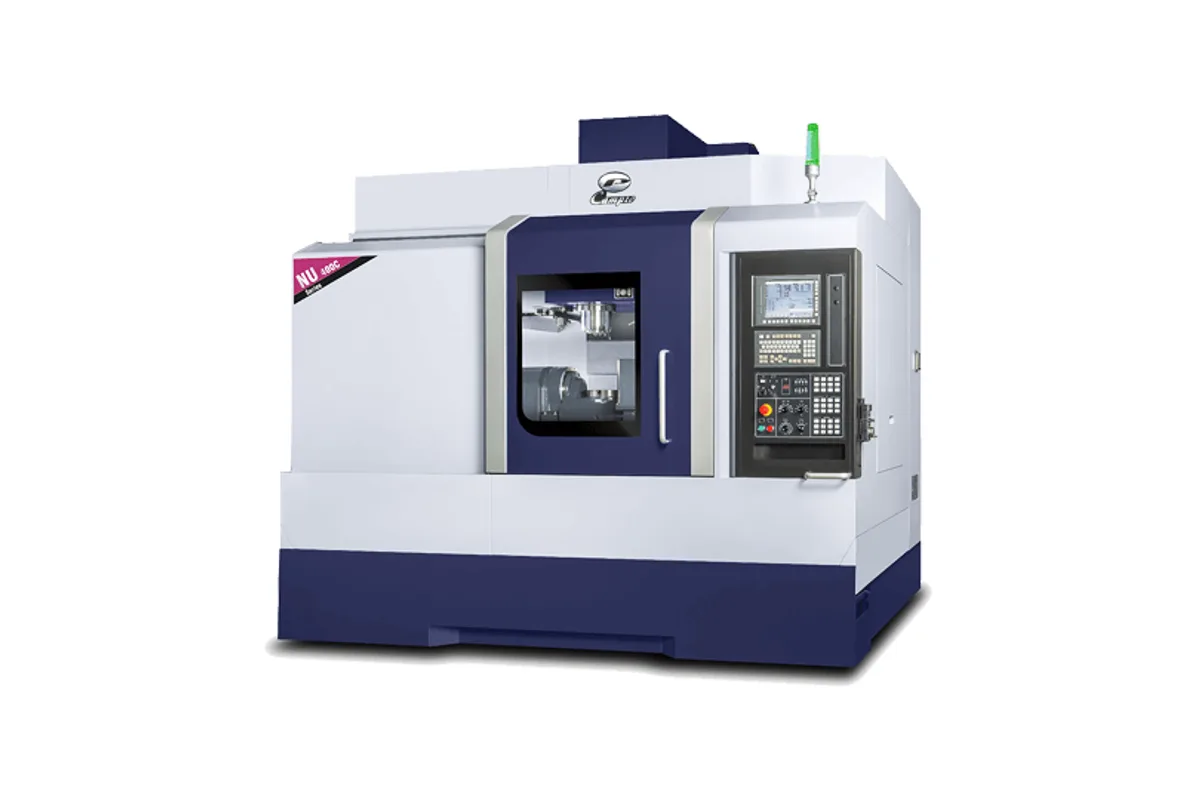

Campro NU 400C
Image: camprocnc.com, Campro
Key Specifications
Max Spindle
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Campro NU 400C cost?
Price estimate
We do not have a price for the Campro NU 400C that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Campro NU 400C is the largest of the three C-suffix trunnion machines in the NU series, a 5-axis machining center built around a Ø400 mm (Ø15.7 in) table. Travels are 550 mm (21.6 in) in X, 600 mm (23.6 in) in Y and 530 mm (20.8 in) in Z, with an A axis range of +30°~-120° and a 360° C axis.
Size is the reason to pick it. Campro states a maximum workpiece of Ø500x 350 mm and the load row reads 200 / 150 kg (440 / 330 lb) (V / H), double the NU 255C on both counts. Spindle nose to table surface runs 40~570 mm (1.5 in ~ 22.4 in). The machine has grown with the envelope: 8,000 kg (17,636 lb), against 5,600 kg (12,345 lb) for the NU 255C.
Nothing changes at the spindle. It is the same BBT-40, 10,000 rpm, 11 / 15 kW (20 HP) unit listed for the NU 255C, so the larger table brings bigger parts but no extra power to cut them. If the work needs more spindle, the NU 550 has 12,000 rpm and 20 / 30 kW (40 HP). Rotary rapids are the slowest of the C models at 11.1 / 16.6 rpm for A / C, while X, Y and Z rapid at 32 m/min.
Where this model is more flexible is tool storage. The standard magazine holds 24 tools and the table lists larger magazines as options (OPT: 30 / 32 / 40). Each tool can weigh 7 kg (15 lb) and measure 250 mm (9.8 in) in length. The floor plan is 3,350 × 2,350 mm (131 in x 92 in), height 3,000 mm (118 in), and power capacity 30 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 550 mm (21.6 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 530 mm (20.8 in) |
| A Axis Range | +30°~-120° |
| C Axis Range | 360° |
| Distance Spindle Nose to Table | 40~570 mm (1.5 in ~ 22.4 in) |
| Table Size | Ø400 mm (Ø15.7 in) |
| Max Table Load | 200 / 150 kg (440 / 330 lb) (V / H) |
| Spindle Motor Power | 11 / 15 kW (20 HP) |
| Max Spindle Speed | 10,000 rpm |
| Tool Shank | BBT-40 |
| Tool Capacity | 24 (OPT: 30 / 32 / 40) |
| Max Tool Weight | 7 kg (15 lb) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Diameter (full magazine) | Ø80 mm (Ø3.1 in) |
| Max Tool Diameter (adjacent pockets empty) | Ø150 mm (Ø5.9 in) |
| Rapid Traverse Xyz | 32 / 32 / 32 m/min (1,259.8 / 1,259.8 / 1,259.8 in/min) |
| Rapid Traverse AC | 11.1 / 16.6 rpm |
| Floor Plan | 3,350 × 2,350 mm (131 in x 92 in) (W × D) |
| Machine Weight | 8,000 kg (17,636 lb) |
| Machine Height | 3,000 mm (118 in) |
| Power Requirement | 30 kVA |
Specifications sourced from camprocnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Ø400 mm (Ø15.7 in) table carrying 200 / 150 kg (440 / 330 lb) (V / H)
- Largest travels of the C models: 550 mm (21.6 in) X, 600 mm (23.6 in) Y, 530 mm (20.8 in) Z
- Standard 24-tool magazine with larger ones optional (OPT: 30 / 32 / 40)
- 32 m/min rapids on X, Y and Z, on heavy duty roller type linear guideways
- Same 30 kVA power capacity as the NU 255C despite the larger envelope
Limitations
- A / C rapid feedrate of 11.1 / 16.6 rpm, half the 22.2 / 33.3 rpm of the NU 255C
- Spindle is unchanged from the NU 255C at 10,000 rpm and 11 / 15 kW (20 HP)
- Tool weight is limited to 7 kg (15 lb) even though the table carries far heavier parts
- At 8,000 kg (17,636 lb) it needs more foundation and rigging than the smaller NU machines
Best For
Frequently Asked Questions
01
Campro states a maximum workpiece of Ø500x 350 mm. The table is Ø400 mm (Ø15.7 in) and the load is 200 / 150 kg (440 / 330 lb), printed as a V / H pair. Travels are 550 mm (21.6 in), 600 mm (23.6 in) and 530 mm (20.8 in) in X, Y and Z.
02
The NU 550 is a different construction, which Campro calls a monoblock column, with a Ø550 mm (21.6 in) table, 940 mm (37 in) of X travel, a 12,000 rpm spindle and 20 / 30 kW (40 HP). The NU 400C has a Ø400 mm (Ø15.7 in) table, 550 mm (21.6 in) of X travel, 10,000 rpm and 11 / 15 kW (20 HP), and weighs 8,000 kg (17,636 lb).
03
The standard number of tools is 24, with 30 / 32 / 40 given as options. Tool limits are Ø80 mm (Ø3.1 in) diameter, Ø150 mm (Ø5.9 in) with adjacent pockets empty, 250 mm (9.8 in) length and 7 kg (15 lb) weight, on a BBT-40 shank.
04
The linear axes rapid at 32 / 32 / 32 m/min (1,259.8 / 1,259.8 / 1,259.8 in/min) for X / Y / Z. The rotary axes are listed at 11.1 / 16.6 rpm for A / C. That rotary speed is the same as the NU 550 and lower than the smaller C models.
