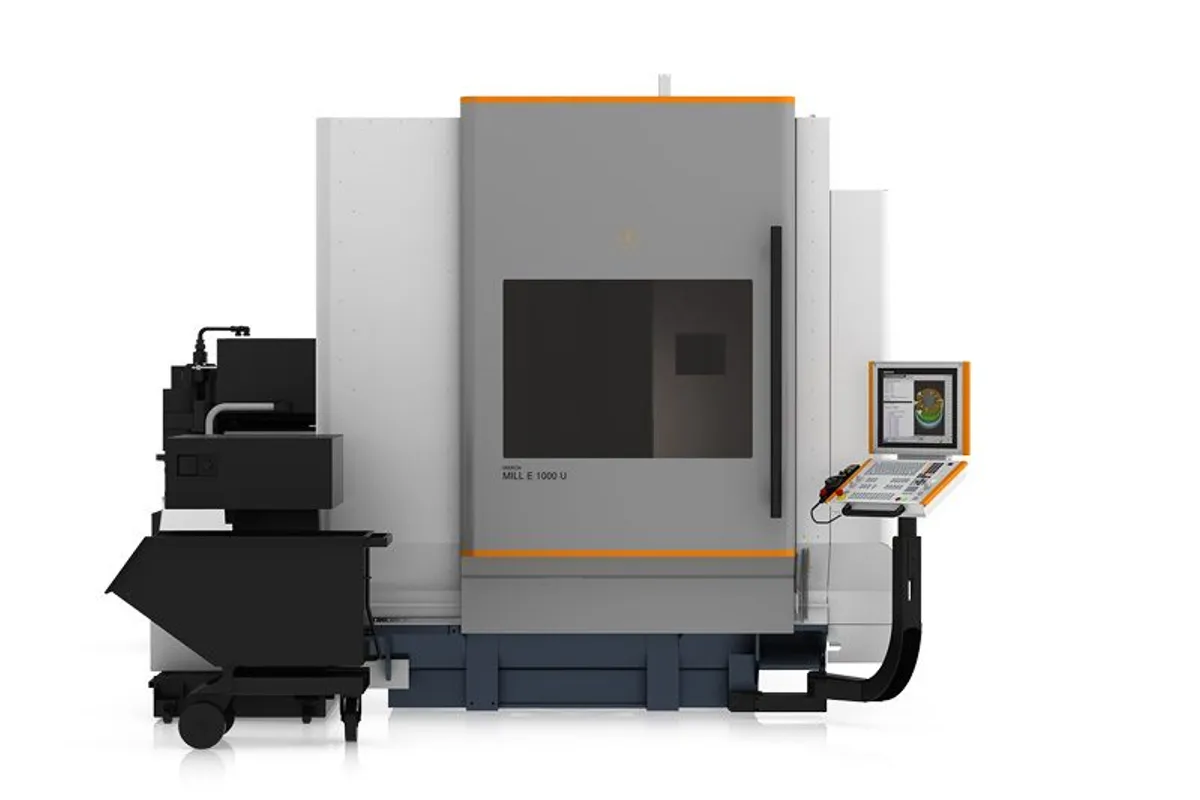

GF Machining Mikron MILL E 1000 U
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The Mikron MILL E 1000 U offers 1,000 x 1,150 x 900 mm. Trunnion: 1,400 kg. A-axis +16/-120 (A63) or +16/-110 (A100). Spindle: 15,000/24,000 A63 or 10,000 A100. Feed: 15/32. Magazine to 336. TNC 7/SINUMERIK ONE. Pricing: $400,000-$650,000.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,000 mm (39.4 in) |
| Y-Axis Travel | 1,150 mm (45.3 in) |
| Z-Axis Travel | 900 mm (35.4 in) |
| Table Load Capacity | 4000 kg milling / 2400 kg turning |
| A Axis Swivel Range | +16 deg / -120 deg (HSK-A63) or +16 deg / -110 deg (HSK-A100) |
| C Axis Rotation | n x 360 deg (continuous) |
| Max Spindle Speed | 15,000 / 24,000 RPM (HSK-A63) or 10,000 RPM (HSK-A100) |
| Spindle Taper | HSK-A63 or HSK-A100 |
| Tool Capacity | HSK-T100: 30 / Tower 90 / 130 / 175 pockets |
| Feed Rate | 15 m/min (32 m/min S6 option) |
| CNC Control | Heidenhain TNC 7 / Siemens SINUMERIK ONE |
| Travel X Y Z | 1880 x 1400 x 930 mm |
| Feed Rate X Y Z | 15 / 41 (S6) m/min |
| Swivelling Range | +20 (HSK-T100)-110° (HSK-T100) |
| Rotary Range | n x 360° |
| Feed Rate Swivel | 11 (S6) rpm20 (S6) rpm |
| Feed Rate Rotary | 30 rpm Simultaneous Turning300 rpm Simultaneous Turning |
| Working Table | T-slot table radial Ø1500 mm for Simultaneous Turning |
| Working Spindle | 12'000 rpm - HSK-T100 |
| Automation | On request |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- 1,000 x 1,150 x 900 mm large envelope
- 1,400 kg table
- HSK-A100 for heavy roughing
- 336-pocket magazine
- Dual taper options
- Latest Smart Machine modules
Limitations
- 15 m/min standard
- +16 deg limits loading
- Foundation requirements
- $400K-$650K justification
Best For
Frequently Asked Questions
01
1400 U: 380 mm more X, 200 kg more capacity.
02
A63 general. A100 heavy roughing.
03
Extended chain magazine.
04
System 3R, WorkShopManager, robots.
