Breton Matrix 1000 Dynamic

$500,000 – $1,200,000 Updated 2026-03-17

Key Specifications

Working Area (X×Y×Z)

1,000 × 1,000 × 700 mm (larger configurations available)

Spindle Power

28 kW

Max Spindle Speed

24,000 RPM

Feed Rate

Up to 40,000 mm/min

Positioning Accuracy

±0.005 mm

Control System

Siemens SINUMERIK 840D sl or Heidenhain TNC 640

Overview

The Breton Matrix 1000 Dynamic is a high-speed 5-axis CNC machining center designed for precision mold and die machining, aerospace components, and complex structural parts in aluminum, composites, and tooling steel. Breton, the Italian manufacturer renowned for its stone and composite processing technology, brings the same rigidity engineering to the Matrix 1000 that defines its industrial machining portfolio.

The 'Dynamic' designation highlights the machine's engineering focus on high-acceleration linear axis performance, enabling aggressive tool paths in aluminum roughing while transitioning smoothly to fine finishing passes without operator intervention. The moving column architecture, combined with a rigid polymer concrete (Bretonstone) base, delivers exceptional vibration damping — a key advantage during high-spindle-speed aluminum and composite milling.

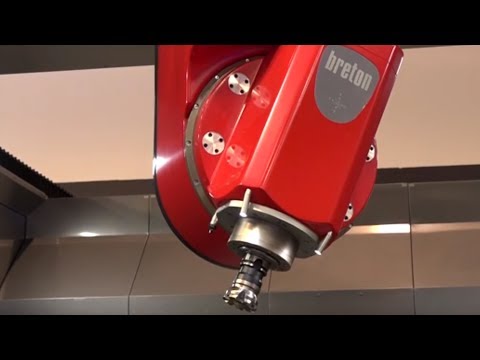

The Matrix 1000's 5-axis head provides full simultaneous contouring capability for complex mold cavities, aerospace brackets, and motorsport components. Breton's proprietary spindle technology offers broad speed and torque ranges, making the machine adaptable from heavy aluminum roughing to fine graphite electrode milling in the same setup with appropriate tool changes.

Breton supports the Matrix 1000 with a comprehensive European service network and application engineering team experienced in mold, aerospace, and composite industries. The machine is commonly found in mold shops, aerospace Tier 2 suppliers, and motorsport component manufacturers across Europe and North America.

Full Specifications

Parameter	Value
Working Area (X×Y×Z)	1,000 × 1,000 × 700 mm (larger configurations available)
Spindle Power	28 kW
Max Spindle Speed	24,000 RPM
Feed Rate	Up to 40,000 mm/min
Positioning Accuracy	±0.005 mm
Control System	Siemens SINUMERIK 840D sl or Heidenhain TNC 640
Table Type	Fixed T-slot table, pallet option available
Machine Weight	Approx. 22,000 kg

Strengths & Limitations

Strengths

Bretonstone polymer concrete base provides outstanding vibration damping
High-accuracy 5-axis contouring for mold cavities and complex aerospace parts
Dynamic axis performance supports aggressive aluminum roughing and fine finishing
Adaptable to mold steel, aluminum, composites, and graphite electrode milling

Limitations

Working volume is mid-range — not suited for large structural panel work
Premium Italian pricing relative to Asian competitors at similar specifications
Longer parts lead times for highly customized configurations

Best For

Injection mold cavities and cores in hardened tool steel Aerospace aluminum structural brackets and details Motorsport composite and aluminum component machining

Frequently Asked Questions

01 What makes the Breton Matrix 1000 Dynamic suitable for mold machining?

The Bretonstone polymer concrete base provides superior vibration damping compared to cast iron, which translates to better surface finish in hard steel mold cavities and longer tool life during high-speed milling of hardened materials.

02 Can the Matrix 1000 Dynamic machine graphite electrodes for EDM?

Yes. With appropriate dust extraction and spindle sealing, the Matrix 1000 Dynamic is used for graphite electrode milling in die and mold shops. Breton offers application-specific configurations for this use case.

03 What control options are available on the Matrix 1000 Dynamic?

Breton offers the Matrix 1000 Dynamic with either Siemens SINUMERIK 840D sl or Heidenhain TNC 640, allowing customers to choose the platform that matches their existing CAM and operator skill set.
