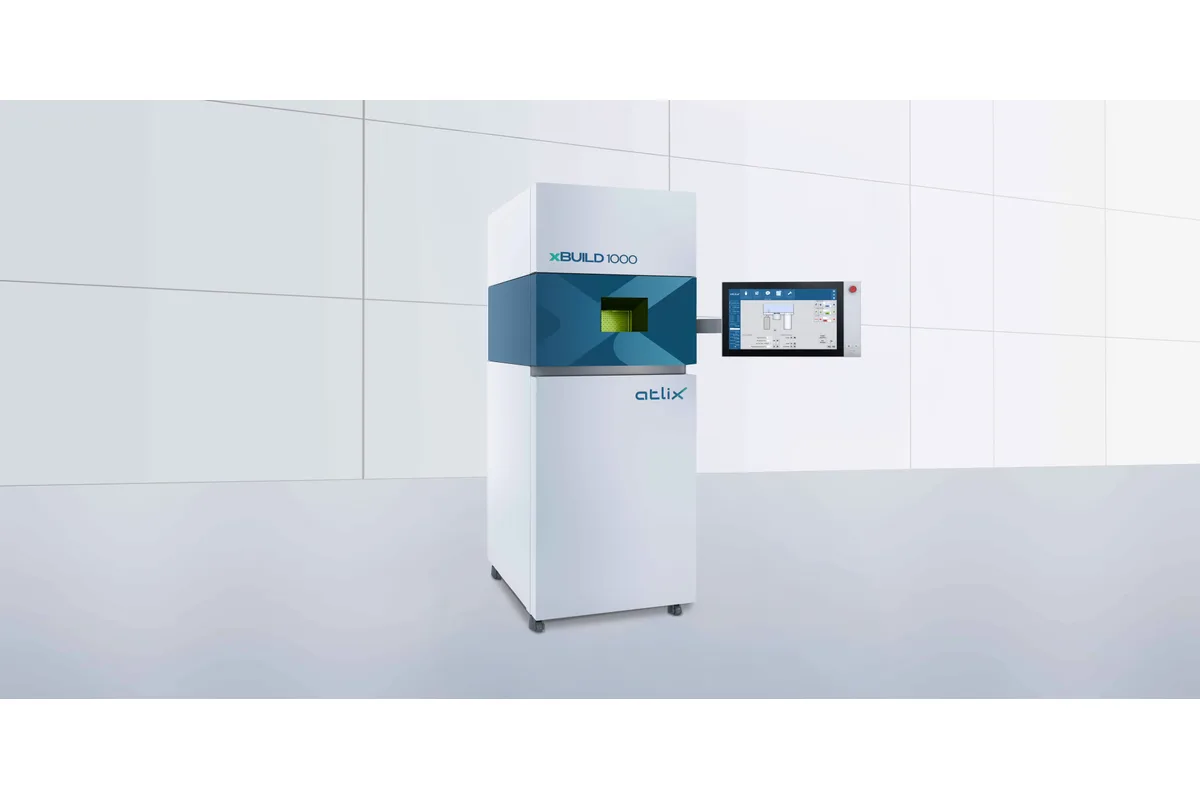

ATLIX xBUILD 1000
Trumpf TruPrint 1000. ATLIX was carved out of TRUMPF Additive Manufacturing in 2025; this model line was previously sold as the TRUMPF TruPrint 1000. (source)
Image: atlix.com, ATLIX
Key Specifications
build volume
build rate
layer thickness
laser source
laser power
number of lasers
How much does the ATLIX xBUILD 1000 cost?
Price estimate
We do not have a price for the ATLIX xBUILD 1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The ATLIX xBUILD 1000 is a compact laser metal additive machine with a cylindrical build volume of Ø 100 x H 100 mm (Ø 3.9 x 3.9 in) and a 200 W TRUMPF fiber laser. The effective build area is Ø 98 mm (3.9 in), so parts are laid out on a round area slightly smaller than the nominal diameter. It sits well below the xBUILD 2000, whose build volume is 202 x 202 x 200 mm (8.0 x 8.0 x 7.9 in), and it is a machine for small parts and small batches.
ATLIX lists one laser as standard and two as an option, the multilaser version being 2 x 200 W. On an area this small the second laser adds output, not reach. Build rate is given as 10 - 50 cm³/h (0.6 - 3.1 in³/h), layer thickness as 20 - 60 μm and scan speed as max. 2 m/s (79 in/s). The beam diameter is 80 μm, with a 55/80 μm arrangement as an option for finer features.
Atmosphere control comes in two levels. As standard, oxygen concentration is taken down to 3,000 ppm (0.3%). Down to 100 ppm (0.01%) is optional, so a buyer planning oxygen-sensitive alloys should treat that option as part of the specification and not assume it. Shielding gas is Nitrogen or Argon.
The installation figures are what set the xBUILD 1000 apart. It runs from a 230 V - 30 A - 50/60 Hz supply, measures 780 x 2,050 x 1,160 mm (30.7 x 80.7 x 45.7 in) and weighs 900 kg (1,984 lb) including powder, against 2,500 kg (5,512 lb) for the xBUILD 2000. The table lists no preheating figure for this model.
Full Specifications
| Parameter | Value |
|---|---|
| Build Volume | Ø 100 x H 100 mm (Ø 3.9 x 3.9 in); effective build area Ø 98 mm (3.9 in) |
| Build Rate | 10 - 50 cm³/h (0.6 - 3.1 in³/h) |
| Layer Thickness | 20 - 60 μm |
| Laser Source | TRUMPF fiber laser |
| Laser Power | 200 W (optional multilaser: 2 x 200 W) |
| Number of Lasers | 1 (optional 2) |
| Beam Diameter | 80 μm (optional: 55/80 μm) |
| Oxygen Concentration | Down to 3,000 ppm (0.3%); optional down to 100 ppm (0.01%) |
| Scan Speed | Max. 2 m/s (79 in/s) |
| Shielding Gas | Nitrogen, Argon |
| Power Supply | 230 V - 30 A - 50/60 Hz |
| Machine Dimensions | 780 x 2,050 x 1,160 mm (30.7 x 80.7 x 45.7 in) |
| Machine Weight | 900 kg (1,984 lb) incl. powder |
Specifications sourced from atlix.com — verified 2026-09-24
Strengths & Limitations
Strengths
- Runs from a 230 V - 30 A - 50/60 Hz supply
- Weighs 900 kg (1,984 lb) incl. powder and measures 780 x 2,050 x 1,160 mm (30.7 x 80.7 x 45.7 in)
- Optional multilaser version with 2 x 200 W in place of the single 200 W laser
- Oxygen concentration down to 100 ppm (0.01%) is available as an option
- Beam diameter of 80 μm, with an optional 55/80 μm arrangement, and layers of 20 - 60 μm
Limitations
- Build volume is limited to Ø 100 x H 100 mm (Ø 3.9 x 3.9 in), with an effective build area of Ø 98 mm (3.9 in)
- Standard oxygen concentration is down to 3,000 ppm (0.3%); the 100 ppm (0.01%) level is an option
- Build rate of 10 - 50 cm³/h (0.6 - 3.1 in³/h) suits small parts only
- The second laser and the 55/80 μm beam arrangement are both options, not part of the base machine
Best For
Frequently Asked Questions
01
The build volume is cylindrical: Ø 100 x H 100 mm (Ø 3.9 x 3.9 in). ATLIX gives the effective build area as Ø 98 mm (3.9 in), so use that figure, not the nominal diameter, when checking whether a part or a nest fits.
02
Yes. The standard machine has one 200 W TRUMPF fiber laser, and a multilaser version with 2 x 200 W is listed as an option. The number of lasers is given as 1, optional 2.
03
Oxygen concentration is listed as down to 3,000 ppm (0.3%) as standard, with down to 100 ppm (0.01%) as an option. Shielding gas is Nitrogen or Argon. Specify the lower level at order if the alloys you run need it.
04
A 230 V - 30 A - 50/60 Hz power supply and a Nitrogen or Argon shielding gas source. The machine measures 780 x 2,050 x 1,160 mm (30.7 x 80.7 x 45.7 in) and weighs 900 kg (1,984 lb) including powder.
05
The xBUILD 2000 has a 202 x 202 x 200 mm (8.0 x 8.0 x 7.9 in) build volume, 300 / 500 W laser power and a weight of 2,500 kg (5,512 lb). The xBUILD 1000 has a Ø 100 x H 100 mm volume, a 200 W laser and weighs 900 kg (1,984 lb) incl. powder.
