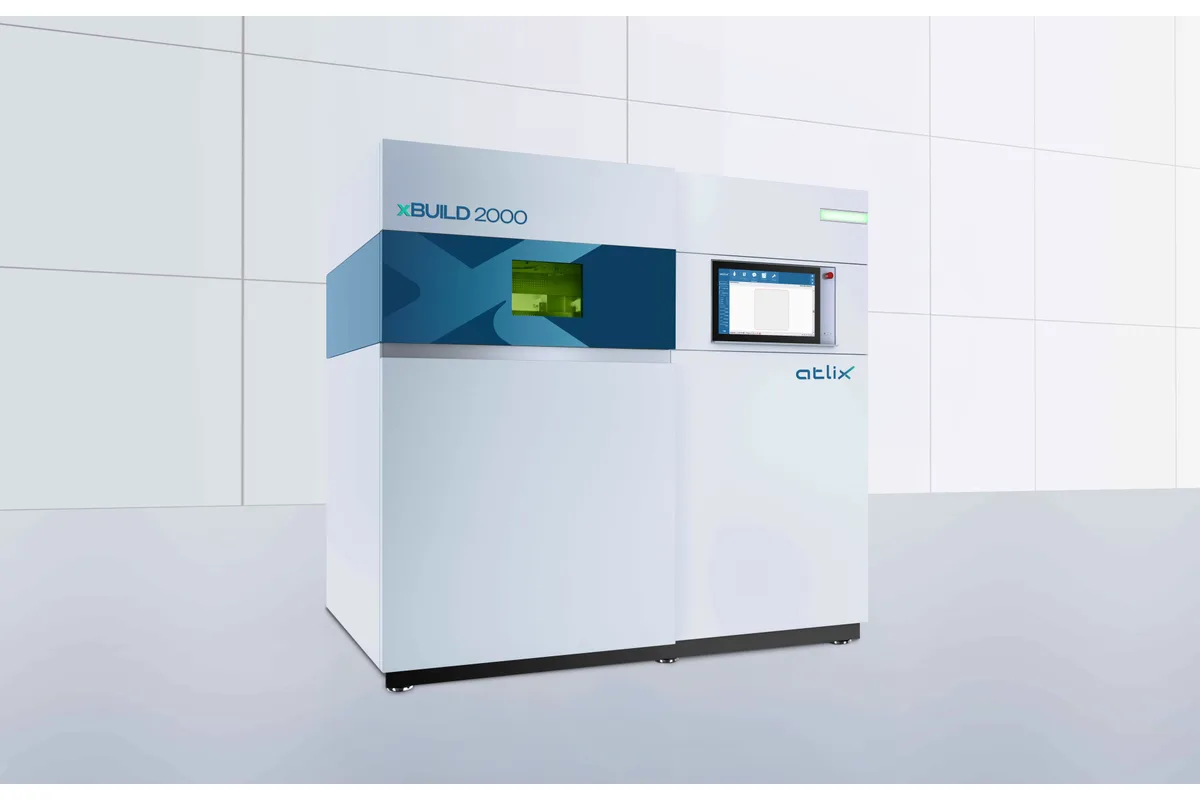

ATLIX xBUILD 2000
Trumpf TruPrint 2000. ATLIX was carved out of TRUMPF Additive Manufacturing in 2025; this model line was previously sold as the TRUMPF TruPrint 2000. (source)
Image: atlix.com, ATLIX
Key Specifications
build volume
build rate
layer thickness
laser source
laser power
number of lasers
How much does the ATLIX xBUILD 2000 cost?
Price estimate
We do not have a price for the ATLIX xBUILD 2000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The ATLIX xBUILD 2000 is a mid-size laser metal additive machine with a 202 x 202 x 200 mm (8.0 x 8.0 x 7.9 in) build volume and a TRUMPF fiber laser offered at 300 or 500 W. Two things in its table are worth a buyer's attention before the laser choice: parts are unpacked inert, in the machine, with an integrated powder conveyor, and the build can be preheated up to 200 °C (392 °F).
Inert unpacking inside the machine means the finished job is freed from loose powder without being opened to room air, and the conveyor moves that powder without manual scooping. For a shop that does not want a separate unpacking station next to the printer, that is a real saving in floor space and handling steps.
Laser power is a choice within a choice. The single-laser machine is listed at 300 / 500 W, and the optional multilaser version at 2 x 300 / 2 x 500 W, so there are four configurations and a quotation should name one of them. Build rate is 30 - 130 cm³/h (1.8 - 7.9 in³/h) across that range. Layer thickness is 20 - 100 μm, scan speed is max. 3 m/s (118 in/s), and the beam diameter is 80 μm with 55 μm as an option. Oxygen concentration is listed down to 3,000 ppm (0.3%), under Nitrogen or Argon.
In the range it sits between the xBUILD 1000, with its Ø 100 x H 100 mm volume and 900 kg (1,984 lb) incl. powder, and the xBUILD 3000, which builds 300 x 300 x 400 mm (11.8 x 11.8 x 15.7 in) and weighs 4,300 kg (9,480 lb). The xBUILD 2000 itself weighs 2,500 kg (5,512 lb), measures 2,180 x 2,030 x 1,400 mm (85.8 x 79.9 x 55.1 in) and needs a 400/460 V | 32 A | 50/60 Hz supply.
Full Specifications
| Parameter | Value |
|---|---|
| Build Volume | 202 x 202 x 200 mm (8.0 x 8.0 x 7.9 in) |
| Build Rate | 30 - 130 cm³/h (1.8 - 7.9 in³/h) |
| Layer Thickness | 20 - 100 μm |
| Laser Source | TRUMPF fiber laser |
| Laser Power | 300 / 500 W (optional multilaser: 2 x 300 / 2 x 500 W) |
| Number of Lasers | 1 (optional 2) |
| Beam Diameter | 80 μm (optional: 55 μm) |
| Oxygen Concentration | Down to 3,000 ppm (0.3%) |
| Scan Speed | Max. 3 m/s (118 in/s) |
| Preheating | Up to 200 °C (392 °F) |
| Unpacking | Inert, in the machine, integrated powder conveyor |
| Shielding Gas | Nitrogen, Argon |
| Power Supply | 400/460 V | 32 A | 50/60 Hz |
| Machine Dimensions | 2,180 x 2,030 x 1,400 mm (85.8 x 79.9 x 55.1 in) |
| Machine Weight | 2,500 kg (5,512 lb) |
Specifications sourced from atlix.com — verified 2026-09-24
Strengths & Limitations
Strengths
- Unpacking is inert and in the machine, with an integrated powder conveyor
- Preheating up to 200 °C (392 °F)
- Laser power of 300 / 500 W, with an optional multilaser version of 2 x 300 / 2 x 500 W
- Layer thickness range of 20 - 100 μm with a scan speed of max. 3 m/s (118 in/s)
- Optional 55 μm beam diameter in place of the standard 80 μm
Limitations
- Build height is 200 mm (7.9 in); the xBUILD 3000 offers 400 mm (15.7 in)
- Oxygen concentration is listed only down to 3,000 ppm (0.3%), with no lower optional level in the table
- The second laser and the 55 μm beam are options, so the base machine has one laser at 80 μm
- Needs a 400/460 V | 32 A | 50/60 Hz supply and floor capacity for 2,500 kg (5,512 lb)
Best For
Frequently Asked Questions
01
The TRUMPF fiber laser is listed at 300 / 500 W. An optional multilaser version doubles that to 2 x 300 / 2 x 500 W, and the number of lasers is given as 1, optional 2. Beam diameter is 80 μm, with 55 μm optional.
02
ATLIX lists unpacking as inert, in the machine, with an integrated powder conveyor. The job is depowdered inside the machine under shielding gas instead of at a separate station, which matters for reactive powders and for operator exposure.
03
Build rate is listed as 30 - 130 cm³/h (1.8 - 7.9 in³/h). The layer thickness range is 20 - 100 μm and the scan speed is max. 3 m/s (118 in/s). Where a job falls in that range depends on the laser configuration, the layer and the material.
04
The table lists preheating up to 200 °C (392 °F). Oxygen concentration is listed down to 3,000 ppm (0.3%) and the shielding gas is Nitrogen or Argon. No lower oxygen option is listed for this model.
05
The power supply is 400/460 V | 32 A | 50/60 Hz. Machine dimensions are 2,180 x 2,030 x 1,400 mm (85.8 x 79.9 x 55.1 in) and the weight is 2,500 kg (5,512 lb).
