Arclight Dynamics Arc Max Elite 6x12

Q: How much does the Arclight Dynamics Arc Max Elite 6x12 cost?

The price estimate for the Arclight Dynamics Arc Max Elite 6x12 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/arclight-dynamics-arc-max-elite-6x12#price; the request is passed to Arclight Dynamics or an authorised dealer.

Specs verified 2026-10-05 · arclightcnc.com Updated 2026-10-05

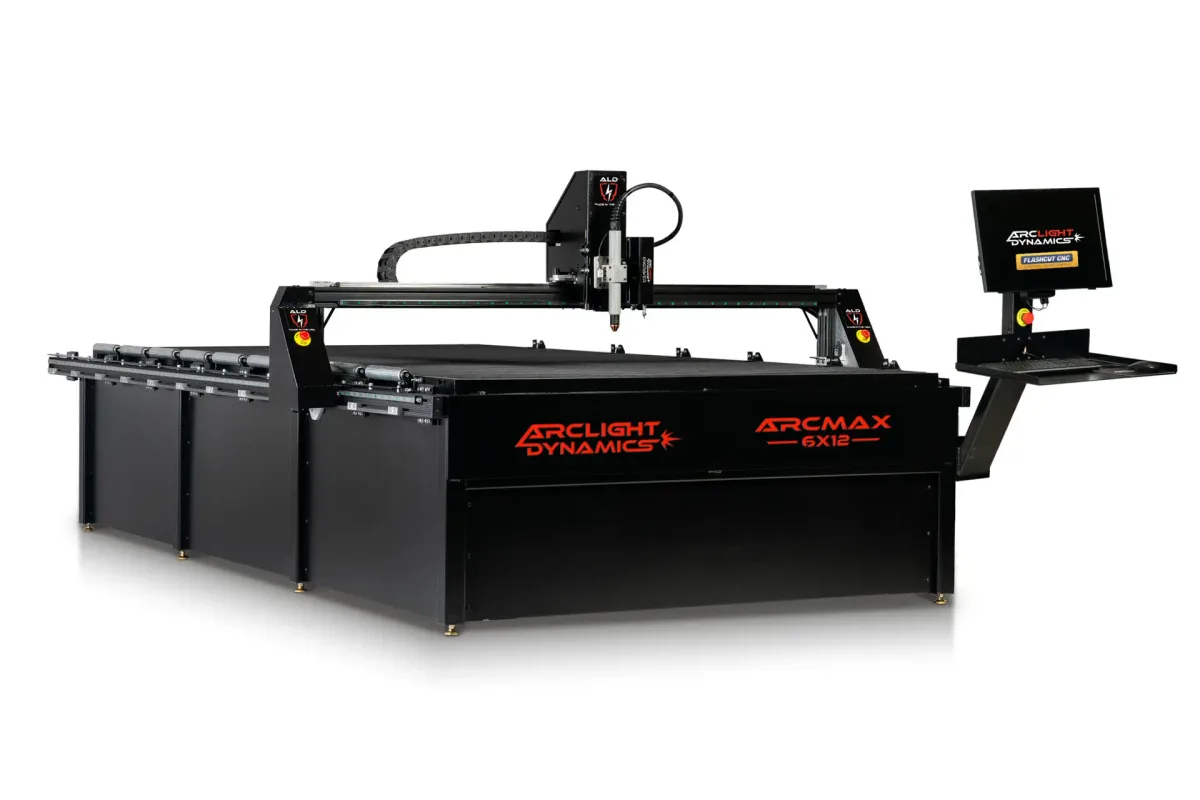

Arclight Dynamics Arc Max Elite 6x12 CNC plasma table

Image: arclightcnc.com, Arclight Dynamics

Key Specifications

Accuracy

0.001 in (0.025 mm)

cutting area

73 x 149 x 6.5 in (1,854 x 3,785 x 165 mm)

max plate thickness

2 in (51 mm) mild steel

machine dimensions

100.5 in L x 167 in W x 60 in H (2,553 x 4,242 x 1,524 mm)

base dimensions

82 x 157 in (2,083 x 3,988 mm)

machine weight

3,000 lb (1,361 kg)

How much does the Arclight Dynamics Arc Max Elite 6x12 cost?

Price estimate

Uncertain

We do not have a price for the Arclight Dynamics Arc Max Elite 6x12 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Arclight Dynamics Arc Max Elite 6x12 is the largest size in its series: a 73 x 149 in cutting envelope with 6.5 in of Z. It is the heavy-frame Arc Max table with FlashCut CNC as standard. Six feet of width and twelve of length cover oversize plate and long structural parts without re-indexing.

Arclight puts NEMA 34 steppers rated 940 oz on the Elite, turning a dual-drive aluminum gantry that rides Hiwin 20 mm linear guide rails with 8.5 in of clearance. The base is the welded Arc Max frame in 3 x 3 in tubing, 3/16 in wall, powder coated, with loading rollers level with the slats. Plate rating is 2 in mild steel and positioning accuracy 0.001 in. The extra deep water table, 8 1/2 in, is listed as capturing 90% of smoke and dust.

Everything about siting it is large. The water pan holds 420 gallons, the table is listed at 3,000 lb, the base is 82 x 157 in and overall dimensions are 100.5 in L x 167 in W x 60 in H. Plate of this size moves by crane, so the loading side needs hook coverage and the delivery needs a clear, straight path.

The control is FlashCut CNC, an integrated CAD/CAM/CNC system that is standard on every Elite table. Automatic part nesting is where it pays back on plate: true shape nesting across multiple files and sheets uses more of each sheet than placing parts by eye. Imported drawings are repaired by a fix tool. Pipe and tube cutting is listed for this version as well. No plasma cutter is included with the base table.

Full Specifications

Parameter	Value
Cutting Area	73 x 149 x 6.5 in (1,854 x 3,785 x 165 mm)
Max Plate Thickness	2 in (51 mm) mild steel
Machine Dimensions	100.5 in L x 167 in W x 60 in H (2,553 x 4,242 x 1,524 mm)
Base Dimensions	82 x 157 in (2,083 x 3,988 mm)
Machine Weight	3,000 lb (1,361 kg)
Water Pan Capacity	420 gallons (1,590 L)
Positioning Accuracy	0.001 in (0.025 mm)
Frame	Fully Welded Steel
Frame Tubing	3 x 3 in (76 x 76 mm) steel tubing, 3/16 in (4.8 mm) wall
Gantry	Low mass aluminum dual-drive gantry
Gantry Clearance	8.5 in (216 mm)
Linear Guides	Hiwin 20 mm precision linear guide rails
Water Pan Depth	8 1/2 in (216 mm), 12g steel
Water Pan Drains	Twin 1.25 in (32 mm) ball valve drains
Motors	NEMA 34 stepper, 940 oz
CNC Control	Flashcut CNC (integrated CAD/CAM/CNC)
Table Power	110 V / 15-20 A

Specifications sourced from arclightcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

FlashCut CNC standard: integrated CAD/CAM/CNC with true shape nesting
NEMA 34 stepper motors rated 940 oz
Welded unitized frame of 3 x 3 in tubing, 3/16 in wall, with 8.5 in gantry clearance
Largest envelope in the series at 73 x 149 in

Limitations

The frame, gantry and water table are the same as on the Ultra version
A plasma cutter has to be added
420 gallon water pan and overall dimensions of 100.5 in L x 167 in W x 60 in H
Plate this size needs crane handling

Best For

Oversize plate and long structural parts on 6 x 12 stock High-volume nesting on large plate Daily production cutting where automatic nesting saves plate

Frequently Asked Questions

01 How big is the cutting envelope of the Arc Max Elite 6x12?

73 x 149 in, with 6.5 in of Z. It is the largest size Arclight lists for this series and takes 6 x 12 plate, which slides on over rollers built into the frame.

02 What frame and water table does the Arc Max Elite have?

A fully welded unitized frame of 3 x 3 in steel tubing with a 3/16 in wall, rated for 2 in mild steel. The water pan is 8 1/2 in deep in 12g steel with an expanded metal barrier for small parts and twin 1.25 in ball valve drains.

03 What does a shop need for the Arc Max Elite 6x12?

Floor for a base of 82 x 157 in and overall dimensions of 100.5 in L x 167 in W x 60 in H, a floor that carries 3,000 lb plus 420 gallons of water and the plate, 110 V at 15 to 20 A for the table, and lifting gear for the material.

04 What does the Arc Max Elite add over the Arc Max Ultra?

FlashCut CNC as the standard control, with integrated CAD/CAM/CNC, automatic part nesting and pipe and tube cutting listed among its capabilities, and NEMA 34 stepper motors rated 940 oz. The welded frame, aluminum gantry, linear rails and water table are listed identically for both versions.
