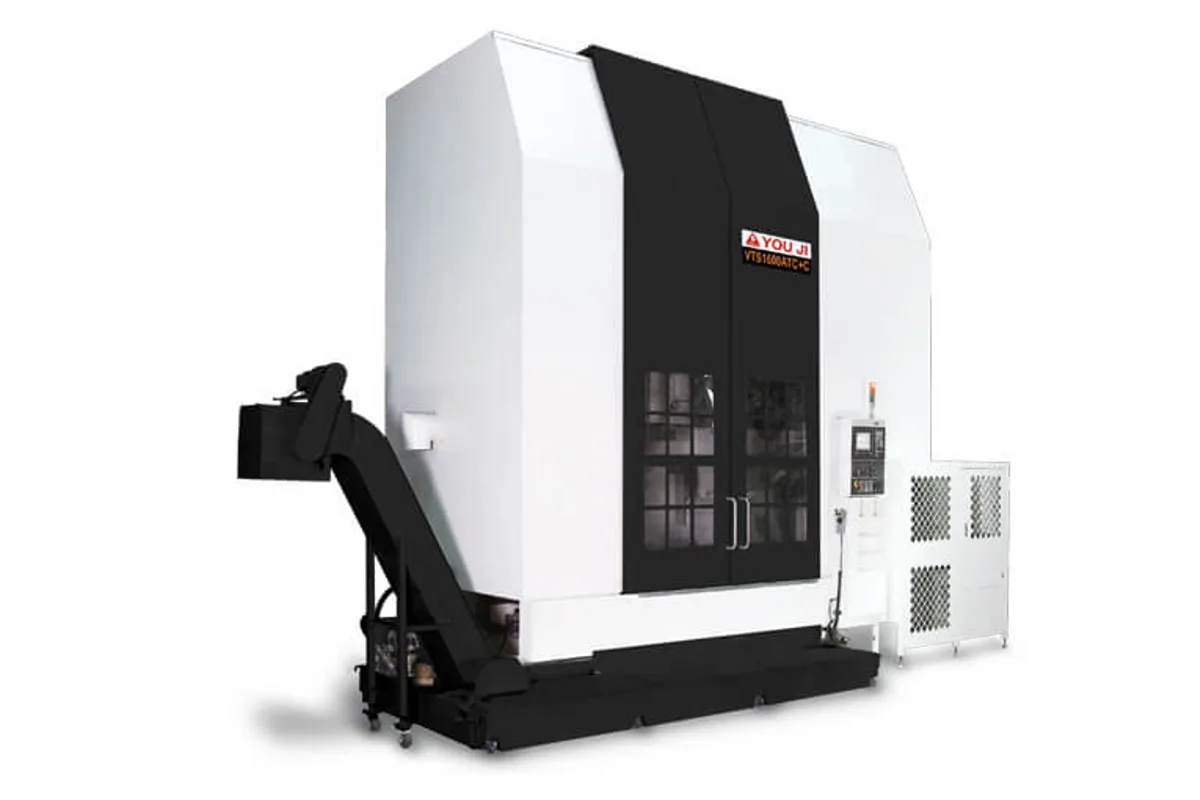

You Ji VTS4000ATC
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Power
table diameter
max swing diameter
max turning diameter
max turning height
How much does the You Ji VTS4000ATC cost?
Price estimate
We do not have a price for the You Ji VTS4000ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The top of the VTS range, the You Ji VTS4000ATC, puts a Ø4,000 mm (157.5 in) table under a fixed cross-rail and drives it with a 100 kW (134.1 hp) motor. Maximum turning diameter is Ø4,500 mm (177.2 in) and the swing Ø4,800 mm (189.0 in).
Those envelope figures are larger than the table size suggests. You Ji's own VTL4000ATC turns Ø4,300 mm (169.3 in), and it takes the VTL4500ATC to reach Ø4,800 mm (189.0 in). The VTS4000ATC therefore covers most of the diameter of the bigger travelling-rail machine on a much smaller plot: 11,500 x 6,900 mm (452.8 x 271.7 in) and 6,800 mm (267.7 in) high.
The limit is height. With the rail fixed, parts can be no taller than 1,000 mm (39.4 in). Loading weight is 30,000 kg (66,138 lb) and the table turns at 1-60 rpm.
Ring-rolling mills and bearing makers are the obvious users: a 4.5 m ring is a flat part, and it is faced, bored and grooved in long cuts that reward a stiff rail and a big motor. The Capto C6 tool shank is used for both static and driven tools, and the series key lists a double ram build and ATC+C with C-axis function. There is no pallet changer at this size.
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | Ø4,000 mm (157.5 in) |
| Max Swing Diameter | Ø4,800 mm (189.0 in) |
| Max Turning Diameter | Ø4,500 mm (177.2 in) |
| Max Turning Height | 1,000 mm (39.4 in) |
| Max Table Load | 30,000 kg (66,138 lb) |
| Spindle Motor Power | 100 kW (134.1 hp) |
| Tool Shank | Capto C6 |
| Max Spindle Speed | 1-60 rpm |
| Floor Space | 11,500 x 6,900 mm (452.8 x 271.7 in) |
| Machine Height | 6,800 mm (267.7 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Ø4,500 mm (177.2 in) turning diameter from a Ø4,000 mm (157.5 in) table
- 100 kW (134.1 hp) spindle motor and 30,000 kg (66,138 lb) loading weight
- Smaller plot than the VTL4000ATC: 11,500 x 6,900 mm (452.8 x 271.7 in)
- Double ram and C-axis builds are listed in the VTS key
Limitations
- Turning height is 1,000 mm (39.4 in); the VTL4000ATC offers 1,600 mm (63.0 in)
- Capto C6 only, where the VTL4000ATC lists BT-50/BT-60
- Table speed range of 1-60 rpm and no pallet changer build
Best For
Frequently Asked Questions
01
Ø4,500 mm (177.2 in), with a maximum swing of Ø4,800 mm (189.0 in). The table itself is Ø4,000 mm (157.5 in) and the maximum turning height 1,000 mm (39.4 in).
02
Both have a 100 kW (134.1 hp) motor, 1-60 rpm and 30,000 kg (66,138 lb). The VTL4000ATC turns Ø4,300 mm (169.3 in) by 1,600 mm (63.0 in) high with a BT-50/BT-60 shank. The VTS4000ATC turns Ø4,500 mm (177.2 in) by 1,000 mm (39.4 in) with Capto C6.
03
The catalogue lists 11,500 x 6,900 mm (452.8 x 271.7 in) and a height of 6,800 mm (267.7 in). For comparison, the VTL4000ATC is listed at 12,500 x 8,500 mm (492.1 x 334.6 in) and 7,400 mm (291.3 in).
04
Maximum loading weight is 30,000 kg (66,138 lb). If parts are heavier, the VTH4000ATC with a hydrostatic table bearing is rated 60,000 kg (132,275 lb).
