Hyundai WIA CNC Lathes / Turning Centers

Hyundai WIA HD2600 Series

Est. $100,000 - $160,000 Specs verified 2026-10-03 · wiamachine.com Updated 2026-10-03

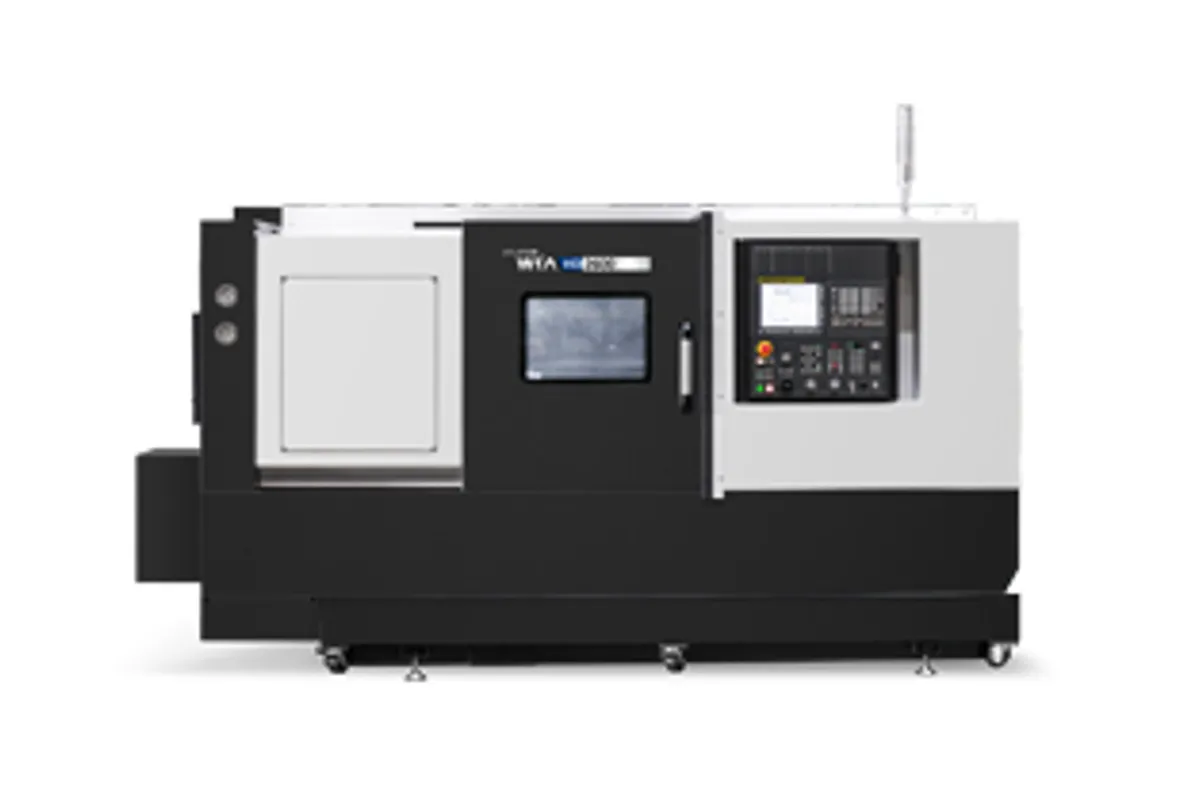

Image: wiamachine.com, Hyundai WIA

Key Specifications

X Travel

265 mm (10.4 in)

Z Travel

680 mm (26.8 in)

Max Spindle

3,500 rpm

Tool Capacity

10 tools

Rapid Traverse

X/Z: 24 / 30 m/min (945 / 1,181 ipm)

Spindle Power

26 / 18.5 kW (34.9 / 24.8 hp)

How much does the Hyundai WIA HD2600 Series cost?

Estimated price range

Est.$100,000 - $160,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from Hyundai WIA. Configuration moves it a long way.

Overview

The Hyundai WIA HD2600 Series is a 10 in (254 mm) chuck turning centre with a maximum turning diameter of 460 mm (18.1 in), a maximum turning length of 659 mm (25.9 in) and a belt-driven spindle that reaches 3,500 rpm. Hyundai WIA's series table gives one set of headline figures for the series, so treat them as the frame's envelope and confirm the exact variant when ordering.

Spindle power is listed as 26 / 18.5 kW (34.9 / 24.8 hp) and torque as 734 / 522 N·m (541.4 / 385 ft-lbf). The table does not label the two halves of each pair. On lathe tables such a pair is normally a short-time and a continuous rating, so plan long roughing cuts around the lower figure. The HD3100 Series lists the same spindle power but 1,123 / 657 N·m (828.3 / 484.6 ft-lbf) and a 2,800 rpm ceiling, which makes the HD2600 the faster and lighter-cutting machine of the two.

X travel is 265 mm (10.4 in) and Z travel 680 mm (26.8 in), with rapids of 24 m/min (945 ipm) in X and 30 m/min (1,181 ipm) in Z. The turning length sits just under the Z stroke, so a part near 659 mm (25.9 in) leaves almost no room to retract a long boring bar or drill; check tool overhang against the part before committing. One size down, the HD2200 Series has an 8 in (203 mm) chuck, 380 mm (15 in) of turning diameter and 4,500 rpm.

Tool capacity is listed as 10 tools. There is no row for live tooling, a Y axis, a sub-spindle, bar capacity or machine weight in this table, so parts that need milled features or bar feeding call for a conversation with Hyundai WIA about the specific model before anything is assumed.

Full Specifications

Parameter	Value
Max Turning Diameter	460 mm (18.1 in)
Max Spindle Speed	3,500 rpm
Spindle Motor Power	26 / 18.5 kW (34.9 / 24.8 hp)
Spindle Drive	Belt
Chuck Size	10 in (254 mm)
Max Turning Length	659 mm (25.9 in)
X-Axis Travel	265 mm (10.4 in)
Z-Axis Travel	680 mm (26.8 in)
Rapid Traverse Rate	X/Z: 24 / 30 m/min (945 / 1,181 ipm)
Spindle Torque	734 / 522 N·m (541.4 / 385 ft-lbf)
Tool Capacity	10 tools

Specifications sourced from wiamachine.com — verified 2026-10-03

Strengths & Limitations

Strengths

Spindle rated 26 / 18.5 kW (34.9 / 24.8 hp) with 734 / 522 N·m (541.4 / 385 ft-lbf) of torque behind a 10 in (254 mm) chuck
460 mm (18.1 in) maximum turning diameter with 265 mm (10.4 in) of X travel
3,500 rpm top speed, against 2,800 rpm on the HD3100 Series at the same listed spindle power
Rapids of 24 m/min (945 ipm) in X and 30 m/min (1,181 ipm) in Z
659 mm (25.9 in) of turning length on 680 mm (26.8 in) of Z travel, enough for short shafts as well as chuck work

Limitations

Peak torque is 734 N·m (541.4 ft-lbf); the HD3100 Series lists 1,123 N·m (828.3 ft-lbf) from the same spindle power, so heavy large-diameter roughing favours the bigger machine
Tool capacity is listed as 10 tools, where the HD2200 Series lists 12 tools
The series table has no row for live tooling, a Y axis or a sub-spindle, so milling capability cannot be assumed from it
Turning length stops at 659 mm (25.9 in); the HD3100 Series reaches 780 mm (30.7 in)

Best For

Chuck work up to 460 mm (18.1 in) in diameter on a 10 in (254 mm) chuck Short shafts within 659 mm (25.9 in) of turning length Steel turning that can use 734 N·m (541.4 ft-lbf) of spindle torque Mixed diameters where 3,500 rpm matters more than maximum torque

Frequently Asked Questions

01 What is the difference between the HD2600 Series and the HD3100 Series?

Chuck size, torque and length. The HD2600 Series has a 10 in (254 mm) chuck, 460 mm (18.1 in) of turning diameter, 659 mm (25.9 in) of turning length and 3,500 rpm. The HD3100 Series has a 12 in (305 mm) chuck, 500 mm (19.7 in) of diameter, 780 mm (30.7 in) of length and 2,800 rpm, with 1,123 / 657 N·m (828.3 / 484.6 ft-lbf) of torque against 734 / 522 N·m (541.4 / 385 ft-lbf) on the HD2600. Both list 26 / 18.5 kW (34.9 / 24.8 hp) and 265 mm (10.4 in) of X travel.

02 How does the HD2600 Series compare with the HD2200 Series?

The HD2200 Series is the smaller machine: an 8 in (203 mm) chuck, 380 mm (15 in) of turning diameter, 565 mm (22.2 in) of turning length and 18.5 / 15 kW (24.8 / 20.1 hp), with a faster 4,500 rpm spindle and 12 tools. The HD2600 Series turns 460 mm (18.1 in) by 659 mm (25.9 in) on a 10 in (254 mm) chuck with 26 / 18.5 kW (34.9 / 24.8 hp), tops out at 3,500 rpm and lists 10 tools. Rapids are the same on both.

03 What spindle does the HD2600 Series have?

A belt-driven spindle with a top speed of 3,500 rpm. Power is listed as 26 / 18.5 kW (34.9 / 24.8 hp) and torque as 734 / 522 N·m (541.4 / 385 ft-lbf). The table does not say which duty each figure of a pair refers to, so ask Hyundai WIA for the power and torque curve if your work depends on sustained heavy cuts.

04 How many tools does the HD2600 Series carry?

The table lists a tool capacity of 10 tools. It does not give a turret type or a live-tool speed. For comparison, the HD3100 Series table shows 10 stations as standard and 12 on M-variants, so ask what turret the HD2600 model you are considering is built with.

05 How long a part can the HD2600 Series turn?

Maximum turning length is 659 mm (25.9 in) on 680 mm (26.8 in) of Z travel, and maximum turning diameter is 460 mm (18.1 in). The table lists no tailstock or bar capacity figures, so support for slender shafts and feeding of bar stock have to be confirmed for the specific model.
