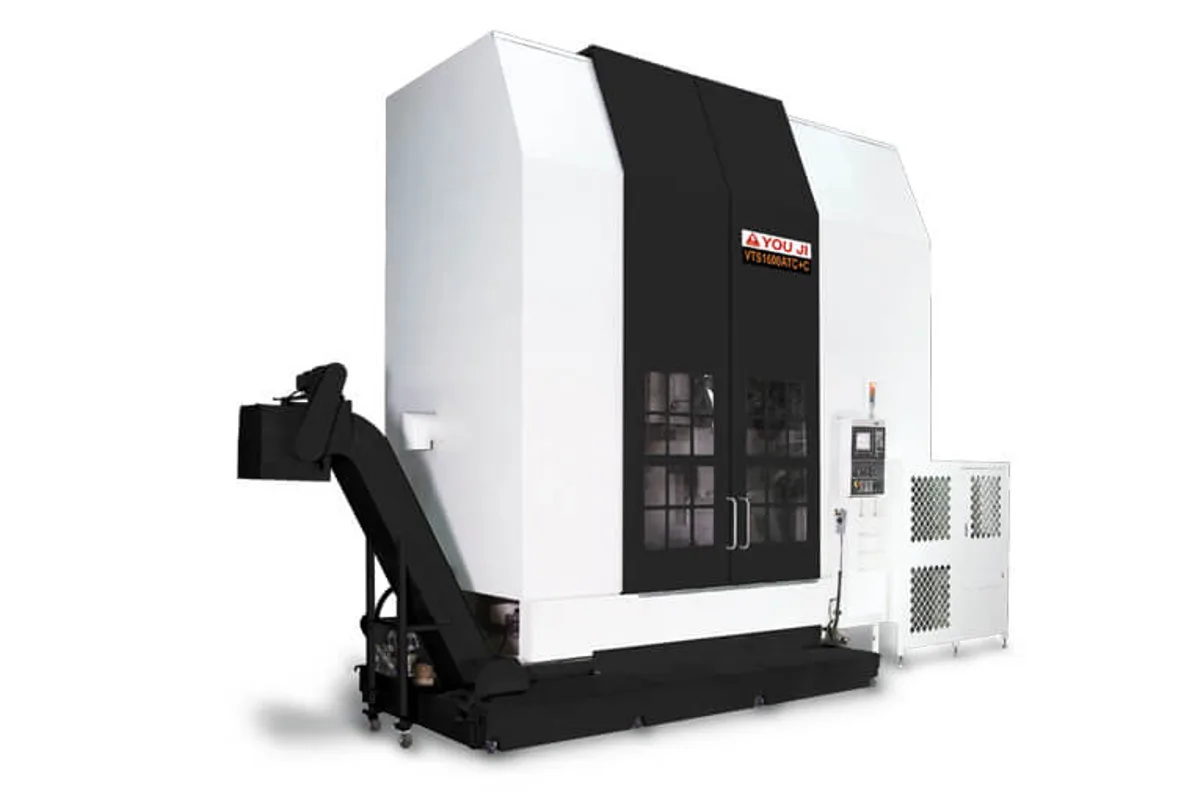

You Ji VTS1000ATC
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Power
table diameter
max swing diameter
max turning diameter
max turning height
How much does the You Ji VTS1000ATC cost?
Price estimate
We do not have a price for the You Ji VTS1000ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The You Ji VTS1000ATC is a fixed cross-rail vertical turning lathe with a Ø1,000 mm (39.4 in) table, an automatic tool changer and Capto C6 tooling. It opens the VTS series, which You Ji defines by that fixed type cross-rail: the rail does not travel up and down the columns, so the ram works from one rigid height.
A fixed rail sets the height limit. Maximum turning height is 800 mm (31.5 in), and that figure repeats on every VTS model up to the VTS2500ATC. Inside it the machine turns Ø1,100 mm (43.3 in), swings Ø1,350 mm (53.1 in) and carries 4,000 kg (8,818 lb).
The spindle motor is 30/37 kW (40.2/49.6 hp), the only VTS model with that rating, and the table runs 1-600 rpm. The Capto C6 shank is a polygon interface used for both turning tools and driven tools, which suits the ATC+C build with its C-axis function.
For its table size the VTS1000ATC is a long machine: 7,000 x 5,230 mm (275.6 x 205.9 in) on the floor and 5,360 mm (211.0 in) high. An automatic pallet changer is listed for VTS sizes 1000 to 2500 and so applies here; the double ram build starts at the VTS1600ATC. Disc-shaped parts such as gear blanks, brake drums for heavy vehicles, bearing rings and valve bonnets are the natural fit.
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | Ø1,000 mm (39.4 in) |
| Max Swing Diameter | Ø1,350 mm (53.1 in) |
| Max Turning Diameter | Ø1,100 mm (43.3 in) |
| Max Turning Height | 800 mm (31.5 in) |
| Max Table Load | 4,000 kg (8,818 lb) |
| Spindle Motor Power | 30/37 kW (40.2/49.6 hp) |
| Tool Shank | Capto C6 |
| Max Spindle Speed | 1-600 rpm |
| Floor Space | 7,000 x 5,230 mm (275.6 x 205.9 in) |
| Machine Height | 5,360 mm (211.0 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Capto C6 tool shank with automatic tool changer
- Fixed type cross-rail, as You Ji defines the VTS series
- 1-600 rpm table speed, the highest in the VTS table
- Pallet changer (APC) and ATC+C builds are listed for this size
Limitations
- Turning height is limited to 800 mm (31.5 in) by the fixed rail
- 30/37 kW (40.2/49.6 hp) motor is the smallest in the VTS series
- Floor dimension of 7,000 x 5,230 mm (275.6 x 205.9 in) is large for a Ø1,000 mm (39.4 in) table
Best For
Frequently Asked Questions
01
You Ji describes the VTS series as a CNC vertical turning lathe with a fixed type cross-rail. The rail stays at one height and the ram supplies the vertical movement, which is why the maximum turning height is 800 mm (31.5 in).
02
Table Ø1,000 mm (39.4 in), maximum swing Ø1,350 mm (53.1 in), maximum turning diameter Ø1,100 mm (43.3 in), maximum turning height 800 mm (31.5 in) and maximum loading weight 4,000 kg (8,818 lb).
03
Diameter, swing and load match. The YV1000 offers 900 mm (35.4 in) of turning height and a 37/45 kW (49.6/60.3 hp) motor. The VTS1000ATC has 800 mm (31.5 in), a 30/37 kW (40.2/49.6 hp) motor and a Capto C6 tool shank.
04
The spindle motor is 30/37 kW (40.2/49.6 hp) and the table speed range 1-600 rpm. Torque is not printed in the catalogue table, so request the torque diagram for heavy interrupted cuts.
More from You Ji
Other CNC Lathes / Turning Centers

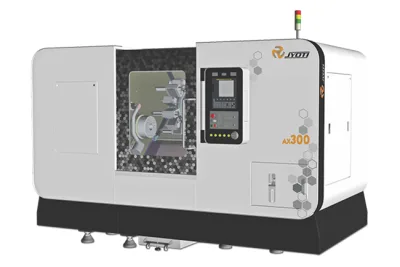

Huron AX M 300
Tsugami M08SJ-II
Okuma LB4000 EX II

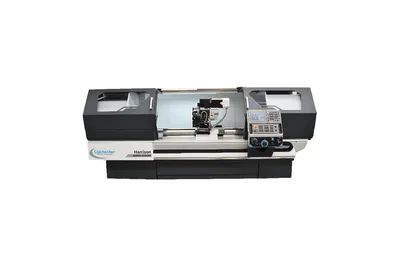

Harrison Alpha 1550XC
