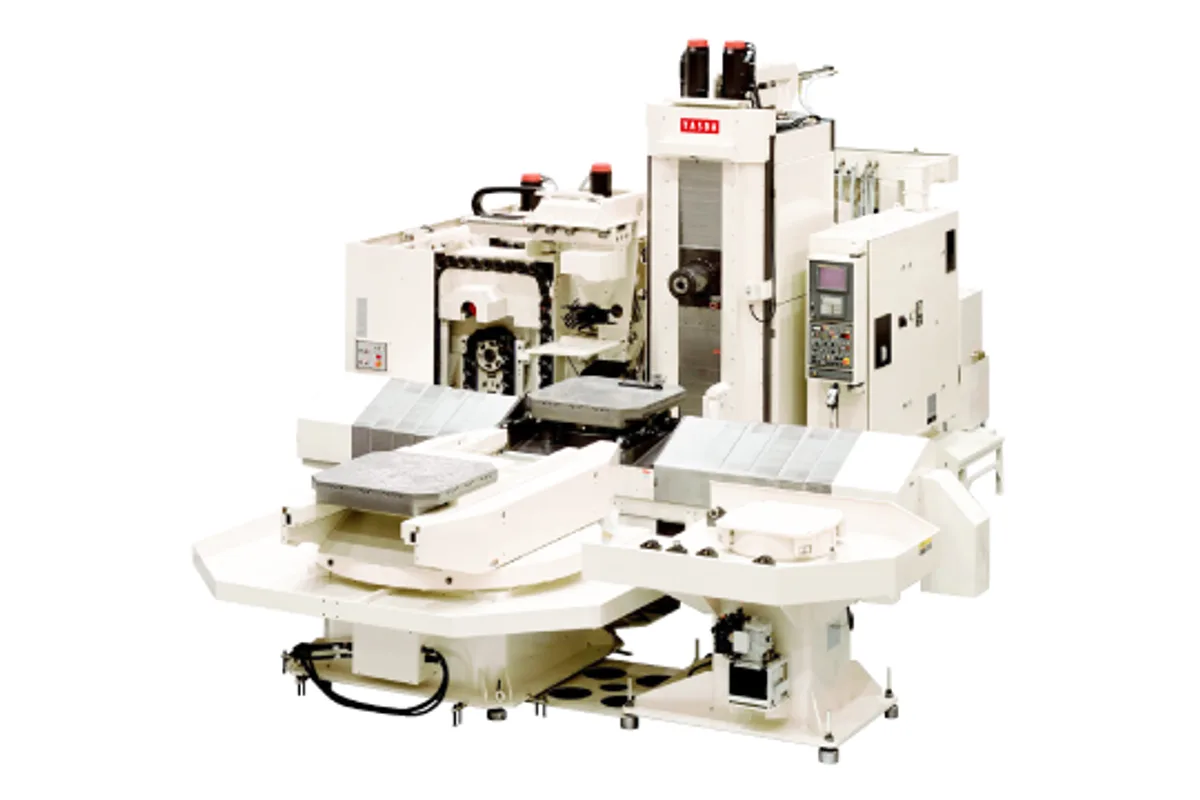

Yasda YBM 10T
Image: yasda.co.jp, Yasda Precision
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Yasda YBM 10T cost?
Price estimate
We do not have a price for the Yasda YBM 10T that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Yasda YBM 10T carries a 1,000 mm square table and moves 1,500 mm (59.1 in) in X, 1,200 mm (47.2 in) in Y and 1,100 mm (43.3 in) in Z. It belongs to the group Yasda calls mother machines, and at this size the work is large: machine columns, big gear housings, structural parts that need boring on several faces.
Compared with the YBM 8T, the table grows from 800 mm to 1,000 mm square while Z travel stays at 1,100 mm. X and Y are 1,500 mm and 1,200 mm here, against 1,300 mm and 1,000 mm on the YBM 8T. The machine is therefore wider and taller in reach but no deeper, unless the stroke extension is taken: X to a total of 2,100 mm, Y to 1,400 mm and Z to 1,400 mm. This is the only precision center below the largest one with an X extension on the list.
The spindle list is shorter than on the two smaller models. The base spindle runs 50-10,000 min-1 on MAS BT50; the high-torque option runs 60-6,000 min-1 and the high-speed option 60-15,000 min-1, both on BT50. There is no BT40 spindle here, which makes sense for a machine whose parts are heavy iron and steel.
Two pallets and 60 tools are standard. The APC option is 5PLS, one pallet fewer than on the smaller machines, and tool storage can be 90 tools or 120-450 tools. Height is 4,125 mm (162.4 in) with the 1,200 mm Y stroke, so this machine needs a high bay. The control is a FANUC 31i-B5 Plus.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,500 mm (59.1 in) |
| Y-Axis Travel | 1,200 mm (47.2 in) |
| Z-Axis Travel | 1,100 mm (43.3 in) |
| Table Working Size | 1,000 x 1,000 mm (39.4 x 39.4 in) |
| Max Spindle Speed | 50-10,000 min-1 (60-6,000 min-1 high-torque spindle opt., 60-15,000 min-1 high-speed spindle opt.) |
| Spindle Taper | MAS BT50 |
| Tool Capacity | 60 tools (90 tools/120-450 tools opt.) |
| APC | 2 pallets (5PLS opt.) |
| Stroke Extension | X 2,100 mm / Y 1,400 mm / Z 1,400 mm total length (opt.) |
| CNC Control | FANUC 31i-B5 Plus |
| Machine Height | 4,125 mm (162.4 in) with Y = 1,200 mm stroke |
Specifications sourced from yasda.co.jp — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,000 x 1,000 mm (39.4 x 39.4 in) table with 1,500 x 1,200 x 1,100 mm of travel
- Stroke extension on all three axes: X 2,100 mm, Y 1,400 mm, Z 1,400 mm total length
- High-torque (60-6,000 min-1) and high-speed (60-15,000 min-1) spindle options on MAS BT50
- 2 pallets standard, 5PLS optional
- Up to 120-450 tools of storage
Limitations
- Machine height of 4,125 mm (162.4 in) with the 1,200 mm Y stroke
- No MAS BT40 high-speed spindle, unlike the YBM 8T
- The pallet system option is 5PLS, against 6PLS on the YBM 8T
- No table load is published on the product page
Best For
Frequently Asked Questions
01
It has a 1,000 mm square table and travels of 1,500 mm (59.1 in) in X, 1,200 mm (47.2 in) in Y and 1,100 mm (43.3 in) in Z. Machine height is 4,125 mm (162.4 in) with the 1,200 mm Y stroke.
02
Yes. Stroke extension is optional equipment, to a total length of 2,100 mm in X, 1,400 mm in Y and 1,400 mm in Z. The machine height figure applies to the base Y stroke, so the extended machine will be taller.
03
The base spindle is 50-10,000 min-1 with MAS BT50. Options are a high-torque spindle of 60-6,000 min-1 and a high-speed spindle of 60-15,000 min-1, both with MAS BT50.
04
The two share travels of 1,500 mm, 1,200 mm and 1,100 mm and a 1,000 x 1,000 mm table working size. The YBM 10T-100TT is the table trunnion type 5-axis machine and is taller, at 4,885 mm.
