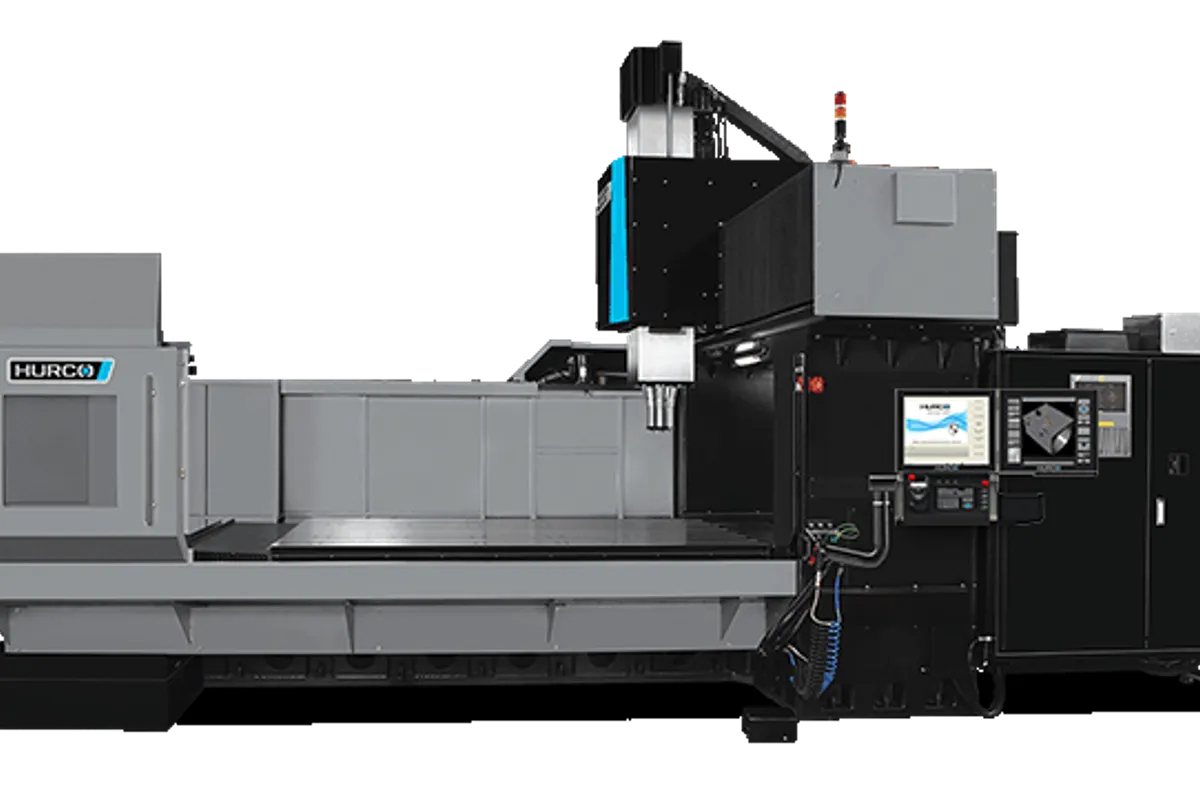

Hurco DCX3226i
Key Specifications
X Travel
Y Travel
Z Travel
Spindle Taper
Tool Capacity
Table Size
Overview
The Hurco DCX3226i is a purpose-built variant in Hurco's double-column bridge lineup, designed for shops that need the X-travel of the DCX32i but in a narrower Y-travel configuration that better suits certain part geometries and shop layouts. The model number tells the story: 3,200 mm (126 in) in X and 2,600 mm (102.4 in) in Y, with 920 mm (36.2 in) in Z. That extra 500 mm of Y-travel over the standard DCX32i opens up machining capability for wider workpieces — deep mold cavities, wide aerospace panels, and oversize structural components.
The table measures 3,400 x 2,600 mm (133.9 x 102.4 in) with a 10,000 kg (22,046 lb) load capacity. The wider table is significant: many large mold bases and die plates are wider than the standard DCX32i's 2,000 mm Y-axis table can accommodate efficiently. Rather than cantilevering workpieces or using secondary supports, the DCX3226i lets you center the work on the table with full support underneath.
The CAT 50 spindle runs up to 6,000 RPM with 30 kW (40 HP) of continuous power. It's the same proven spindle used across the entire DCX range, optimized for heavy cutting in steel, cast iron, and similar materials. The 40-tool automatic tool changer maintains the same capacity as other DCX models, and tool change time is consistent regardless of the wider bridge span.
Double-column bridge construction is even more critical on a machine with this much Y-travel. The bridge design maintains spindle rigidity at the extremes of Y-axis travel where a C-frame machine would be hopelessly compromised. The columns are spaced wide enough to clear the full table width, and the cross-rail provides consistent stiffness across the entire working envelope.
Box-way guideways handle the substantial loads involved in moving this machine's mass. Rapid traverse rates are 12 m/min (472 IPM) in X/Y, consistent with the box-way design philosophy that prioritizes cutting performance over positioning speed. The WinMax conversational control is standard, providing the same dual-path programming advantage that distinguishes Hurco's entire double-column lineup.
The DCX3226i's wider configuration makes it a specialized machine that addresses a specific market need. New pricing typically runs $450,000-$600,000, reflecting the additional material and engineering in the wider bridge structure. Used availability is extremely limited given the specialized nature of this configuration. When they appear, expect $220,000-$380,000 for 2015-2022 machines.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 3,200 mm (126 in) |
| Y-Axis Travel | 2,600 mm (102.4 in) |
| Z-Axis Travel | 920 mm (36.2 in) |
| Table Size | 118.1 x 82.7 in (3,000 x 2,100 mm) |
| Max Table Load | 10,000 kg (22,046 lb) |
| Spindle Speed | 6,000 RPM |
| Spindle Taper | CAT 50 |
| Spindle Motor Power | 30 kW (40 HP) continuous |
| Rapid Traverse Xy | 12 m/min (472 IPM) |
| Rapid Traverse Z | 10 m/min (394 IPM) |
| Tool Capacity | 40 |
| Guideway Type | Box ways (all axes) |
| CNC Control | Hurco WinMax |
| Machine Weight | 81,439 lbs (37,000 kg) |
| Travels Capacityx Y Z Axis Travel | 126 x 102.4 x 36.2 in (3,200 x 2,600 x 920 mm) |
| Spindle Nose To Table Min Max | 6.46 / 42.68 in (164 / 1,084 mm) |
| Max Weight On Table | 30,864.7 lbs (14,000 kg) |
| T Slot Size | 9 x 0.87 in (9 x 22 mm) |
| Distance B W Columns | 99.6 in (2,530 mm) |
| Spindlemax Spindle Speed | 6,000 rpm |
| Peak Spindle Motor | 64 hp @ 1,180 rpm (48 kW 1,180 rpm) |
| Spindle Torque | 338 ft lbs @ 1,000 rpm (458 Nm @ 1,000 rpm) |
| Tool Changertool Type | CAT 50 (CAT/BT 50) |
| Max Tool Diameter | 4.9 in (125 mm) |
| Max Tool Length | 11.8 in (300 mm) |
| Max Tool Weight | 33 lbs (15 kg) |
| Feedratesrapid Traverse Xyz Axis | 591, 591, 394 in/min (15, 15, 10 m/min) |
| Max Programmable Feedrate | 394 in/min (10 m/min) |
| Sizemax Operating Floor Space | 408.8 x 249.7 in (10,384 x 6,341 mm) |
| Machine Height | 186.0 in (4,724 mm) |
| Electricalpower Rating Full Load Kva | 85 KVA |
Specifications sourced from hurco.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 2,600 mm Y-travel provides 500 mm more cross-travel than the standard DCX32i, accommodating wider workpieces without compromising fixturing
- 3,400 x 2,600 mm table surface fully supports wide mold bases and die plates that would overhang the standard DCX32i's narrower table
- Double-column bridge design maintains spindle rigidity across the full extended Y-travel — critical for consistent accuracy at the extremes of the working envelope
- WinMax conversational control reduces programming time on large one-off parts, particularly valuable given the specialized nature of work this machine handles
- Same CAT 50 spindle and tooling as the entire DCX lineup enables fleet standardization and operator cross-training
- 10,000 kg table capacity handles the heaviest workpieces found in mold, die, and heavy industrial applications
Limitations
- 6,000 RPM spindle speed limits aluminum finishing performance — a significant constraint for aerospace shops working primarily in aluminum alloys
- Wider bridge span increases the machine's overall footprint, requiring more floor space than the standard DCX32i for the same X-travel
- 40-tool magazine feels undersized for a machine capable of processing large, complex workpieces with many features
- 35,000 kg machine weight demands a substantial foundation and limits installation flexibility
- Limited used market availability means resale values are uncertain and buyers must typically order new with associated lead times
Best For
Frequently Asked Questions
01
New DCX3226i machines typically price between $450,000 and $600,000. The wider bridge configuration adds approximately $50,000-$70,000 over the standard DCX32i. Foundation and installation costs run $25,000-$40,000 additional. Used DCX3226i units are extremely rare given the specialized nature of this model. When available, 2015-2022 machines trade in the $220,000-$380,000 range.
02
The key difference is Y-axis travel: 2,600 mm on the DCX3226i versus 2,100 mm on the DCX32i. The table is correspondingly wider at 2,600 mm vs. 2,000 mm. X-travel, Z-travel, spindle specs, and table load capacity are identical. The wider machine weighs approximately 3,000 kg more and requires a wider foundation. Choose the DCX3226i specifically when your parts regularly exceed 2 meters in the Y direction.
03
Absolutely. The wider table is excellent for side-by-side fixturing of multiple parts. Many shops use modular fixturing systems across the 3,400 x 2,600 mm table surface to run multiple workpieces per cycle. Combined with the WinMax control's ability to store and recall fixture offsets, you can set up efficient multi-part operations that maximize spindle utilization.
04
Hurco engineers the wider bridge of the DCX3226i with increased cross-section and reinforcement to maintain equivalent stiffness per unit of Y-travel. In practice, the machine maintains published accuracy specs across the full working envelope. The double-column design inherently handles wider spans better than a C-frame, as the load path is symmetrical through both columns rather than cantilevered from one side.
05
The standard DCX3226i comes with the 6,000 RPM, 30 kW CAT 50 spindle. Contact Hurco for availability of the 50T high-torque option on this platform. For shops that need higher spindle speeds, the DCX3226HT 5Si variant offers a different spindle configuration along with 5-axis capability via a trunnion-mounted rotary table.
06
In the 3-meter, wide-Y class, competitors include Awea LP-3226, Hartford HSA-3226, and Kao Ming KMC-3226. The Hurco's primary advantage is the WinMax conversational control — no competitor offers equivalent shop-floor programming capability on a double-column platform. Build quality and rigidity are comparable to the better Taiwanese builders. Hurco's US service network is significantly stronger than most competitors in this niche.
