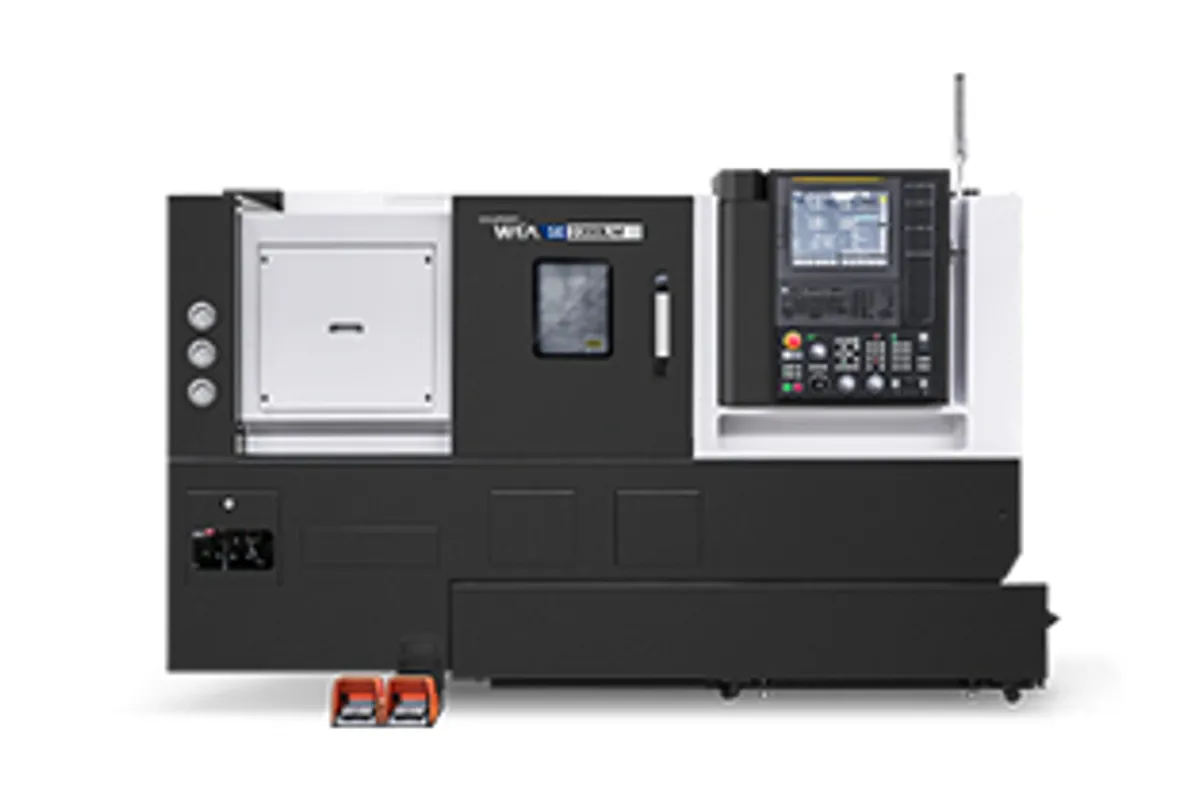

Hyundai WIA SE2200LC Series
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle torque
Overview
The Hyundai WIA SE2200LC Series comprises two long-bed turning center variants — SE2200LC and SE2200LMC — featuring a 10-inch chuck and 18.5/11 kW (25/15 hp) spindle on a 30-degree slant bed with roller guideways. This is the largest-chuck configuration in the SE2200 family, designed for shops that need the rigidity and clamping force of a 10-inch chuck within the compact SE-series platform.
Both variants share a 3,500 RPM spindle with 270/120 Nm torque, X-axis travel of 210 mm, and Z-axis travel of 560 mm. The SE2200LC offers a maximum turning diameter of 350 mm (13.8 in) and turning length of 549 mm (21.6 in) for straight 2-axis turning. The SE2200LMC adds 6,000 RPM live tooling with a reduced max turning diameter of 300 mm (11.8 in) and turning length of 499 mm (19.6 in).
The 12-station turret accepts 25/40 mm tooling on the SE2200LC and 20/32 mm on the SE2200LMC. Rapid traverse rates of 30 m/min on X and 36 m/min on Z match the smaller-chuck SE2200 variants. The roller guideway system on the one-piece 30-degree cast bed provides the rigidity needed for heavy cuts with the 10-inch chuck while maintaining speed for production cycle times.
Pricing for the SE2200LC Series is approximately $70,000-$110,000 new. The series competes with the DN Solutions Lynx 2600M, Haas ST-20, and similar 10-inch chuck mid-range lathes. For shops needing 10-inch clamping force with modern roller guideway speed and optional live tooling, the SE2200LC Series delivers strong performance per dollar.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 350 mm (13.8 in) LC / 300 mm (11.8 in) LMC |
| Max Turning Length | mm |
| Chuck Size | inch |
| Max Spindle Speed | 3,500 RPM |
| Spindle Motor Power | 18.5/11 kW (25/15 hp) |
| Spindle Torque | N.m |
| X Axis Travel | 210 mm (8.3 in) |
| Z Axis Travel | 560 mm (22 in) |
| Rapid Traverse X | 30 m/min (1,181 ipm) |
| Rapid Traverse Z | 36 m/min (1,417 ipm) |
| Turret Stations | 12 |
| Tool Size | mm |
| Milling Tool Speed | r/min |
| Guideway Type | Roller guideways |
| Bed Angle | 30 degrees |
| Spindle Drive | Belt driven |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 10-inch chuck provides maximum clamping force and workpiece capacity in the SE2200 family
- 18.5 kW spindle with 270 Nm torque handles aggressive roughing on large-diameter steel and stainless
- Long-bed 560 mm Z-axis travel accommodates shaft-type components and longer workpieces
- Roller guideways deliver the speed and rigidity balance needed for production turning with a 10-inch chuck
- 12-station turret with optional live tooling on LMC variant enables done-in-one mill-turn operations
- 36 m/min Z-axis rapid traverse maintains fast cycle times despite the larger machine envelope
Limitations
- 3,500 RPM max spindle speed limits surface speed on small-diameter finishing operations
- 10-inch chuck adds weight and inertia, increasing spindle acceleration/deceleration time
- LMC variant reduces turning diameter from 350 mm to 300 mm to accommodate live tooling turret
- Higher price point than 6-inch and 8-inch SE2200 variants may exceed budget for smaller shops
Best For
Frequently Asked Questions
01
The SE2200LC uses a 10-inch chuck versus the SE2200L's 8-inch, with a more powerful 18.5 kW spindle (vs 15 kW) and higher torque (270 Nm vs 167 Nm). The SE2200LC runs at 3,500 RPM versus 4,500 RPM. Choose the SE2200LC when parts require more clamping force or exceed 8-inch chuck capacity.
02
The SE2200LMC adds 6,000 RPM live tooling capability for milling, drilling, and tapping operations. This reduces max turning diameter from 350 mm to 300 mm but enables done-in-one operations that eliminate secondary setups.
03
Pricing ranges from approximately $70,000-$110,000 new. The base SE2200LC is at the lower end, while the SE2200LMC with live tooling is at the upper end. Used machines are limited as this is a newer model in the lineup.
04
Both the SE2200LC and SE2200LMC run on the Fanuc 0i-TF Plus control with Manual Guide i conversational programming, consistent with the entire SE2200 family.
