Tajmac-ZPS MORI-SAY TMZ518CNC PENTA

Q: How much does the Tajmac-ZPS MORI-SAY TMZ518CNC PENTA cost?

The price estimate for the Tajmac-ZPS MORI-SAY TMZ518CNC PENTA is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/tajmac-mori-say-tmz518cnc-penta#price; the request is passed to Tajmac-ZPS or an authorised dealer.

Specs verified 2026-10-04 · tajmac-zps.cz Updated 2026-10-04

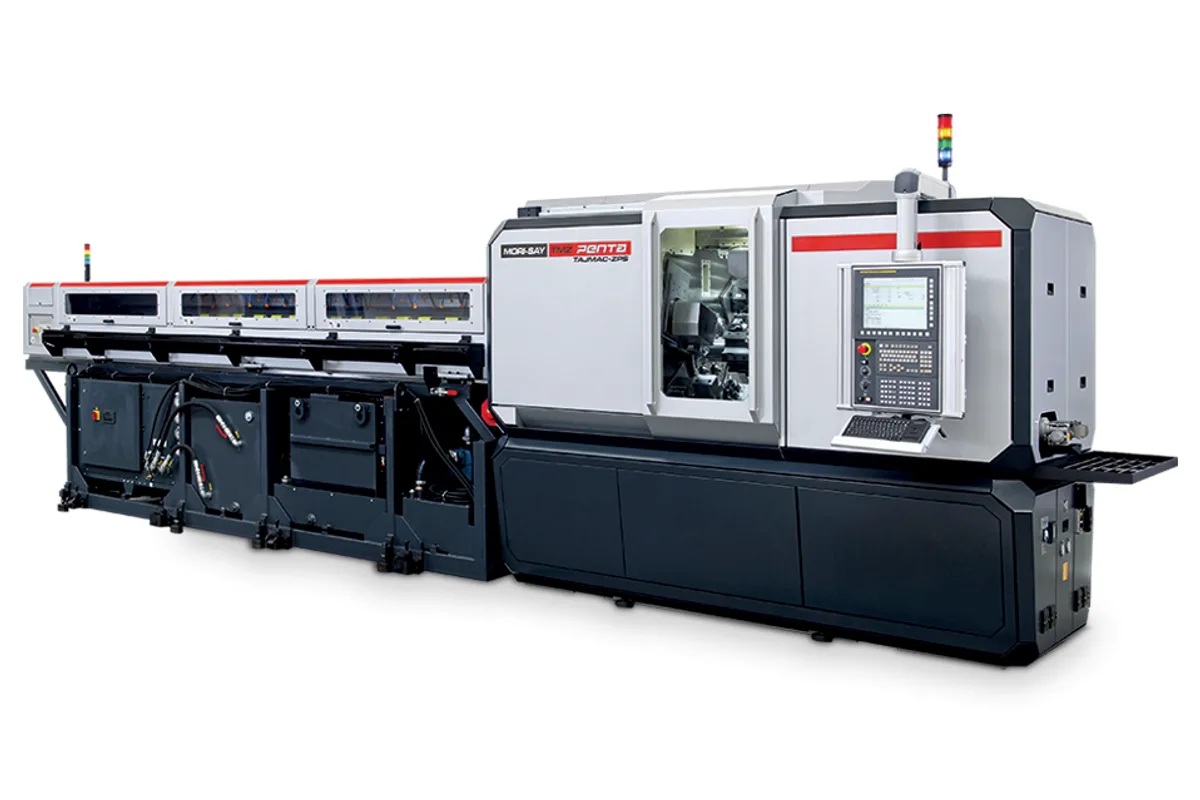

Tajmac-ZPS MORI-SAY TMZ518CNC PENTA CNC multi-spindle automatic lathe

Image: tajmac-zps.cz, Tajmac-ZPS

Key Specifications

Max Spindle

8,000 rpm

Spindle Power

3.7 kW (5.0 hp)

bar capacity with pull system

25 mm (1.0 in)

drum indexing time

0.4 sec

minimum cycle time

3.6 sec

slides stroke pos 1 and 3

X 70 mm (2.8 in), Z 130 mm (5.1 in)

How much does the Tajmac-ZPS MORI-SAY TMZ518CNC PENTA cost?

Price estimate

Uncertain

We do not have a price for the Tajmac-ZPS MORI-SAY TMZ518CNC PENTA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Five spindles, not six or eight: the MORI-SAY TMZ518CNC PENTA is the odd one out among Tajmac-ZPS's CNC multi-spindle automatics. It is a five-spindle CNC bar machine with 8,000 rpm spindles and a 0.4 sec drum indexing time, sold as what the maker calls a CNC island: lathe, barloader, oil treatment system, chiller and chip conveyor delivered as one system from one supplier.

Two configurations exist. The TM version has up to 24 controlled axes and synchronous spindles. The TMZ version, the one named on this page, has 30 driven axes and independent spindle speeds, which lets each station run at the speed its operation wants. The brochure quotes a minimum cycle time of 3.6 sec and a spindle power of 3.7 kW.

Every station is a small CNC slide set, and the strokes differ by position. Stations 1 and 3 have X 70 mm and Z 130 mm. Stations 2 and 4 add a real Y axis of 125 mm, which the maker says allows complex machining through 4 axes kinematic. Station 5 has Y 135 mm, X 75 mm and Z 95 mm, and its Y slide can carry a cutting tool that moves in Z for cut-off. End slides stroke 250 mm. Tooling is VDI quick-change: VDI 20 on the XYZ stations, VDI 25 on the XZ stations and end slides. Live tools reach 6,000 rpm, or 24,000 rpm with a special VDI live tool.

The maker's brochure is thin on bar data. It gives 25 mm as the maximum bar diameter with the pull system, so ask Tajmac-ZPS for the capacity with the collet system you intend to use. With a 4 m barloader the system is 8,351 mm long, 1,820 mm wide and 2,329 mm high, or 2,200 mm wide including bar loader and accessories.

Full Specifications

Parameter	Value
Bar Capacity with Pull System	25 mm (1.0 in)
Max Spindle Speed	8,000 rpm
Spindle Motor Power	3.7 kW (5.0 hp)
Drum Indexing Time	0.4 sec
Minimum Cycle Time	3.6 sec
Slides Stroke Pos 1 and 3	X 70 mm (2.8 in), Z 130 mm (5.1 in)
Slides Stroke Pos 2 and 4	Y 125 mm (4.9 in), X 70 mm (2.8 in), Z (pos. 2) 130 mm (5.1 in), Z (pos. 4) 165 mm (6.5 in)
Slides Stroke Pos 5	Y 135 mm (5.3 in), X 75 mm (3.0 in), Z 95 mm (3.7 in)
End Slides Stroke	250 mm (9.8 in)
Live Tool Speed	6,000 rpm (24,000 rpm with special VDI live tool)
System Length with 4 M Bar Loader	8,351 mm (328.8 in)
System Width	1,820 mm (71.7 in)
System Height	2,329 mm (91.7 in)
Total Width with Bar Loader and Accessories	2,200 mm (86.6 in)

Specifications sourced from tajmac-zps.cz — verified 2026-10-04

Strengths & Limitations

Strengths

Independent spindle speeds on the TMZ version, with 30 driven axes
8,000 rpm spindles and a drum indexing time of 0.4 sec
Real Y axis of 125 mm (4.9 in) on stations 2 and 4, and 135 mm (5.3 in) on station 5
VDI quick-change tooling: VDI 20 on XYZ stations, VDI 25 on XZ stations and end slides
Delivered as one system with barloader, oil treatment, chiller and chip conveyor
Live tools to 6,000 rpm, or 24,000 rpm with a special VDI live tool

Limitations

Spindle power is 3.7 kW (5.0 hp), which limits depth of cut
The maker's brochure gives no machine weight or connected load
Maximum bar diameter with the pull system is 25 mm (1.0 in); collet capacities should be confirmed with the maker
With a 4 m barloader the system is 8,351 mm (328.8 in) long

Best For

High-volume small bar parts with cycle times down to 3.6 sec Parts needing off-centre milling or drilling at the Y-axis stations Jobs where each spindle should run at its own speed Buyers who want lathe, barloader and coolant systems from a single supplier

Frequently Asked Questions

01 What is the difference between the TM and TMZ versions?

Spindle drive and axis count. The maker's product page lists TM with 24 driven axes and synchronous spindle speed, and TMZ with 30 driven axes and independent spindle speeds. The brochure states a spindle power of 3.7 kW.

02 How many spindles does the MORI-SAY TMZ518CNC PENTA have?

Five. The maker calls it a five spindle CNC automatic lathe, with 5 frontal slides and 5 compound slides. The spindles run at up to 8,000 rpm and the drum indexes in 0.4 sec, for a minimum cycle time of 3.6 sec.

03 Which stations have a Y axis?

Stations 2 and 4 have a Y stroke of 125 mm together with X 70 mm and Z of 130 mm (position 2) or 165 mm (position 4). Station 5 has Y 135 mm, X 75 mm and Z 95 mm. Stations 1 and 3 are X and Z only, with 70 mm and 130 mm. The XYZ stations take VDI 20 tooling.

04 What does the PENTA system include?

The maker describes a CNC island composed of the multi-spindle lathe, barloader, oil treatment system, chiller and chip conveyor, with the electrical cabinet integrated into the machine to shorten installation. Machined parts and bar remains are collected in two different containers.

05 How much floor space does it need?

With a 4 m barloader the system is 8,351 mm (328.8 in) long, 1,820 mm (71.7 in) wide and 2,329 mm (91.7 in) high. Total width with bar loader and accessories is 2,200 mm (86.6 in).
