SYIL G3

Q: How much does the SYIL G3 cost?

The price estimate for the SYIL G3 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/syil-g3#price; the request is passed to SYIL or an authorised dealer.

Specs verified 2026-10-04 · syil.com Updated 2026-10-04

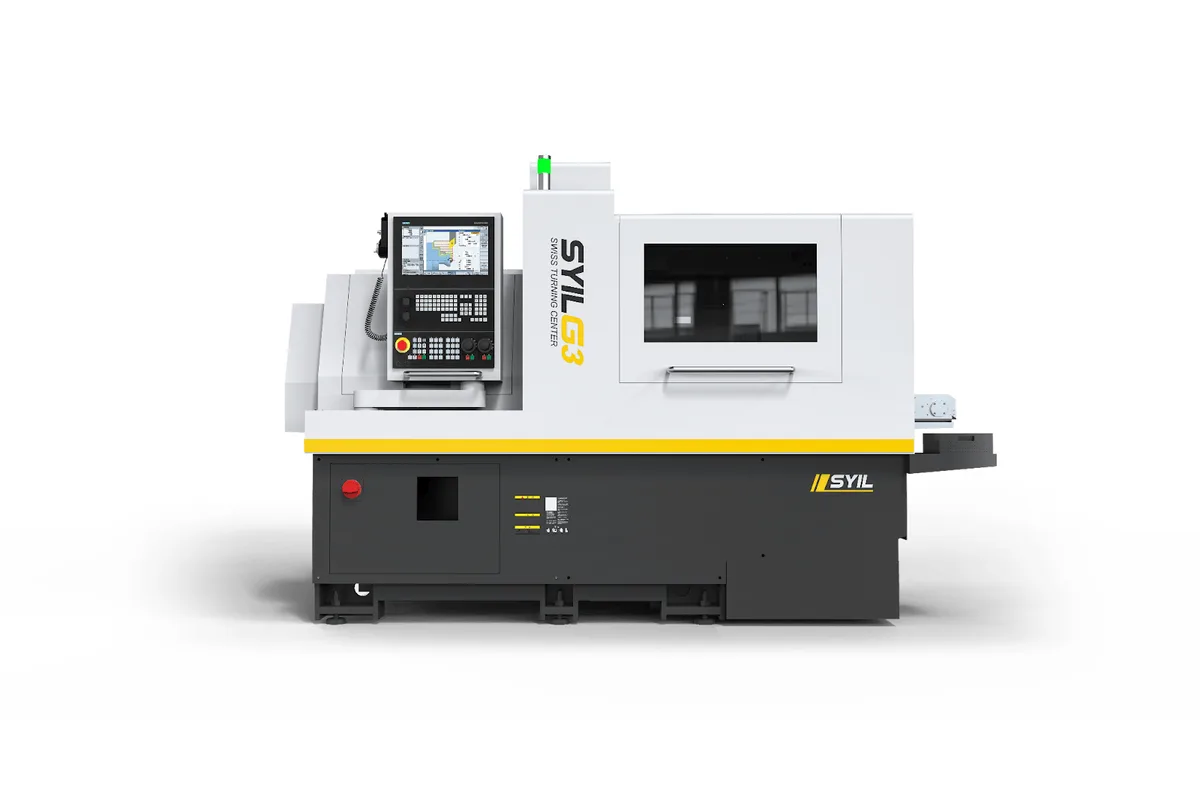

Image: syil.com, SYIL

Key Specifications

Max Spindle

8,000 rpm (rotary guide sleeve 6,000) / 6,000 rpm (rotary cylinder)

Rapid Traverse

30 m/min (1,181 ipm) (X2, Y1, Z1, Z2)

Spindle Power

6.3 kW (8.4 hp)

Repeatability

≤0.003 mm

model variants

G3 L326, G3 L385, G3 L386

bar capacity

Φ32 mm (1.3 in) on G3 L326; Φ38 mm (1.5 in) on G3 L385 and G3 L386

How much does the SYIL G3 cost?

Price estimate

Uncertain

We do not have a price for the SYIL G3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Bar of 32 mm (1.3 in) on the G3 L326 and 38 mm (1.5 in) on the G3 L385 and G3 L386: that is the capacity of the SYIL G3, the larger of SYIL's two sliding-head lathes. One page and one specification cover all three variants, and where they differ SYIL prints the figures side by side.

A 6.3 kW (8.4 hp) main spindle and a 4.2 kW (5.6 hp) back spindle give the machine real turning power for a Swiss-type lathe. Main spindle speed is listed as 8,000 rpm (rotary guide sleeve 6,000) / 6,000 rpm (rotary cylinder), and the back spindle runs to 8,000 rpm. Put plainly, the 32 mm variant is the fast one and the 38 mm variants give up speed for bar size.

Machining length with the rotary guide sleeve is 310 mm (12.2 in) per chucking. SYIL lists no fixed guide sleeve figure for the G3. Without a guide bushing the length is 2.5D, capped at 80 mm on the smaller bar size and 90 mm on the larger.

Tooling is a step up in size from the smaller model. End-face stations are ER20, four of them, and the radial live tools are listed as 1(ER20)+3(ER16) with a 1.1 kW (1.5 hp) motor and 6,000 rpm. That lifts radial drilling to 10 mm (0.4 in) and tapping to M8, while the main spindle drills 13 mm (0.5 in) and taps M12. A two-position ER16 deep hole holder and four ER16 back machining tools are part of the listed tool system. Back powered tools are printed as 4(ER16) / Optional, so they depend on the variant.

All three variants weigh 3,750 kg (8,267 lb). Length is 2,960 mm or 3,100 mm depending on the variant, on a common 1,660 mm depth and 1,920 mm height. The control is the Siemens SINUMERIK 828D, and SYIL lists a rotary guide bushing, back live tools and a front unloading device among the features.

Full Specifications

Parameter	Value
Model Variants	G3 L326, G3 L385, G3 L386
Bar Capacity	Φ32 mm (1.3 in) on G3 L326; Φ38 mm (1.5 in) on G3 L385 and G3 L386
Spindle Through Hole Diameter	Φ37 mm / Φ39 mm (1.5 in / 1.5 in)
Max Machining Length No Guide Bushing	2.5D (maximum 80 mm (3.1 in)) / 2.5D (maximum 90 mm (3.5 in))
Max Machining Length Rotary Guide Sleeve	310 mm (12.2 in)
Back Spindle Max Clamping Diameter	Φ32 mm / Φ38 mm (1.3 in / 1.5 in)
Max Drilling Diameter Spindle	Φ13 mm (0.5 in)
Max Tapping Diameter Spindle	M12
Max Drilling Diameter Back Spindle	Φ10 mm (0.4 in)
Max Tapping Diameter Back Spindle	M10
Max Drilling Diameter Radial Live Tool	Φ10 mm (0.4 in)
Max Tapping Diameter Radial Live Tool	M8
Max Drilling Diameter Back Powered Tool	Φ8 mm / Φ8 mm (optional)
Max Tapping Diameter Back Powered Tool	M6 / M6 (optional)
Max Spindle Speed	8,000 rpm (rotary guide sleeve 6,000) / 6,000 rpm (rotary cylinder)
Sub Spindle Speed	8,000 rpm
Live Tool Speed	6,000 rpm
Back Live Tool Speed	6,000 rpm / 6,000 rpm (optional)
Rapid Traverse Rate	30 m/min (1,181 ipm) (X2, Y1, Z1, Z2)
Rapid Traverse Other Axes	24 m/min (945 ipm) (X1, Y2) / (X1, Z1) / (X1, Y2, Z1)
Spindle Runout	≤0.002 mm
Repeatability	≤0.003 mm
External Cylindrical Tools	6(□16) / 1(□20)+5(□16)
End Face Machining Tools	4(ER20)
Radial Live Tools	1(ER20)+3(ER16)
Deep Hole Tool Holder	2(ER16)
Back Machining Tools	4(ER16)
Back Powered Tool	4(ER16) / Optional
Spindle Motor Power	6.3 kW (8.4 hp)
Sub Spindle Power	4.2 kW (5.6 hp)
Axis Motor Power	1.1 kW (X1, X2, Y1, Z1, Z2)
Live Tool Motor Power	1.1 kW (1.5 hp)
Back Live Tool Motor Power	1 kW / 1 kW (optional)
Cooling Pump Power	0.4 kW (0.5 hp)
CNC Control	Siemens SINUMERIK 828D
Machine Weight	3,750 kg (8,267 lb)
Machine Dimensions	2,960 × 1,660 × 1,920 mm (116.5 × 65.4 × 75.6 in) / 3,100 × 1,660 × 1,920 mm (122.0 × 65.4 × 75.6 in)

Specifications sourced from syil.com — verified 2026-10-04

Strengths & Limitations

Strengths

Bar capacity of 32 mm (1.3 in) on the G3 L326 and 38 mm (1.5 in) on the G3 L385 and G3 L386
6.3 kW (8.4 hp) main spindle and 4.2 kW (5.6 hp) back spindle
310 mm (12.2 in) machining length with the rotary guide sleeve
ER20 end-face tooling and radial live tools listed as 1(ER20)+3(ER16)
Main spindle drills up to 13 mm (0.5 in) and taps M12
Rapids of 30 m/min (1,181 ipm) on X2, Y1, Z1 and Z2

Limitations

Main spindle speed on the 38 mm variants is 6,000 rpm (rotary cylinder)
No fixed guide sleeve length is listed for the G3
Back powered tools are standard on some variants and optional on others
At 3,750 kg (8,267 lb) and up to 3,100 mm long, it needs more room than the SYIL G2
Without a guide bushing, part length is limited to 2.5D with an 80 mm or 90 mm maximum

Best For

Swiss-type work in 32 mm (1.3 in) or 38 mm (1.5 in) bar Long shafts and pins up to 310 mm (12.2 in) per chucking Parts needing M8 cross tapping or 10 mm (0.4 in) cross drilling Tougher materials that benefit from the 6.3 kW (8.4 hp) spindle

Frequently Asked Questions

01 What are the G3 variants and their bar sizes?

SYIL lists three: G3 L326, G3 L385 and G3 L386. Maximum bar diameter is 32 mm (1.3 in) on the G3 L326 and 38 mm (1.5 in) on the G3 L385 and G3 L386. The spindle through hole is printed as Φ37 mm / Φ39 mm, and the back spindle clamps the same diameter as the main spindle on each variant.

02 How fast do the G3 spindles run?

SYIL prints the main spindle speed as 8,000 rpm (rotary guide sleeve 6,000) / 6,000 rpm (rotary cylinder). The back spindle runs to 8,000 rpm and the radial live tools to 6,000 rpm. Spindle power is 6.3 kW (8.4 hp) on the main spindle and 4.2 kW (5.6 hp) on the back spindle.

03 What is the maximum part length on the G3?

With the rotary guide sleeve, 310 mm (12.2 in). With no guide bushing the limit is 2.5D, to a maximum of 80 mm or 90 mm depending on the bar size. The fixed guide sleeve row of SYIL's table is empty for the G3.

04 Which tools does the G3 hold?

External cylindrical tools are listed as 6(□16) / 1(□20)+5(□16). There are four ER20 end face machining tools, radial live tools 1(ER20)+3(ER16), a deep hole tool holder 2(ER16) and four ER16 back machining tools. Back powered tools are printed as 4(ER16) / Optional.

05 Should I choose the G3 or the SYIL G2?

Choose by bar diameter first. The SYIL G2 covers 20 mm (0.8 in) bar, with 26 mm (1.0 in) variants, weighs 2,900 kg (6,393 lb) and reaches 180 mm (7.1 in) with its rotary guide sleeve. The G3 starts at 32 mm (1.3 in), reaches 310 mm (12.2 in) and weighs 3,750 kg (8,267 lb).
