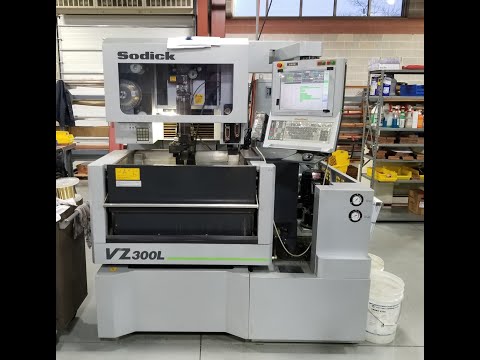

Sodick VZ300L Wire EDM

The Sodick VZ300L is a compact, high-precision wire EDM machine that brings Sodick's linear motor drive technology to a smaller footprint designed for precision toolrooms, medical device manufacturers, and electronics component producers where floor space is at a premium but accuracy requirements are uncompromising. The VZ300L's 300 x 220 mm X/Y travel and 200 kg workpiece capacity address the sweet spot of intricate die inserts, micro-mold components, and precision instrument parts.

The VZ300L inherits the core mechanical architecture of the AG-L series: all-linear-motor drive axes with no backlash and no wear-related accuracy degradation over time. Positioning accuracy is held to ±1 µm across the full travel range, and the machine's compact granite-composite base provides exceptional vibration damping — particularly important in precision finishing passes where surface roughness targets are in the Ra 0.1 µm range.

Sodick's LN power supply drives the VZ300L at cutting speeds up to 260 mm²/min in standard steel, appropriate for the workpiece sizes this machine addresses. The combination of fine-grain discharge control and linear axis precision enables form accuracy within ±1.5 µm, making the VZ300L competitive with far more expensive precision EDM platforms for small-workpiece applications. Wire diameter range of 0.1 to 0.3 mm covers standard and fine wire applications.

The VZ300L features Sodick's automatic wire threading with aqua-guide jet assist, which reliably threads wire through starter holes as small as 0.3 mm — essential for fine-wire and small-die applications. The machine's compact design, low utility requirements, and Windows-based LN controller make the VZ300L an accessible entry point for shops adopting their first Sodick linear-motor EDM or adding a second precision wire EDM to an existing cell.
