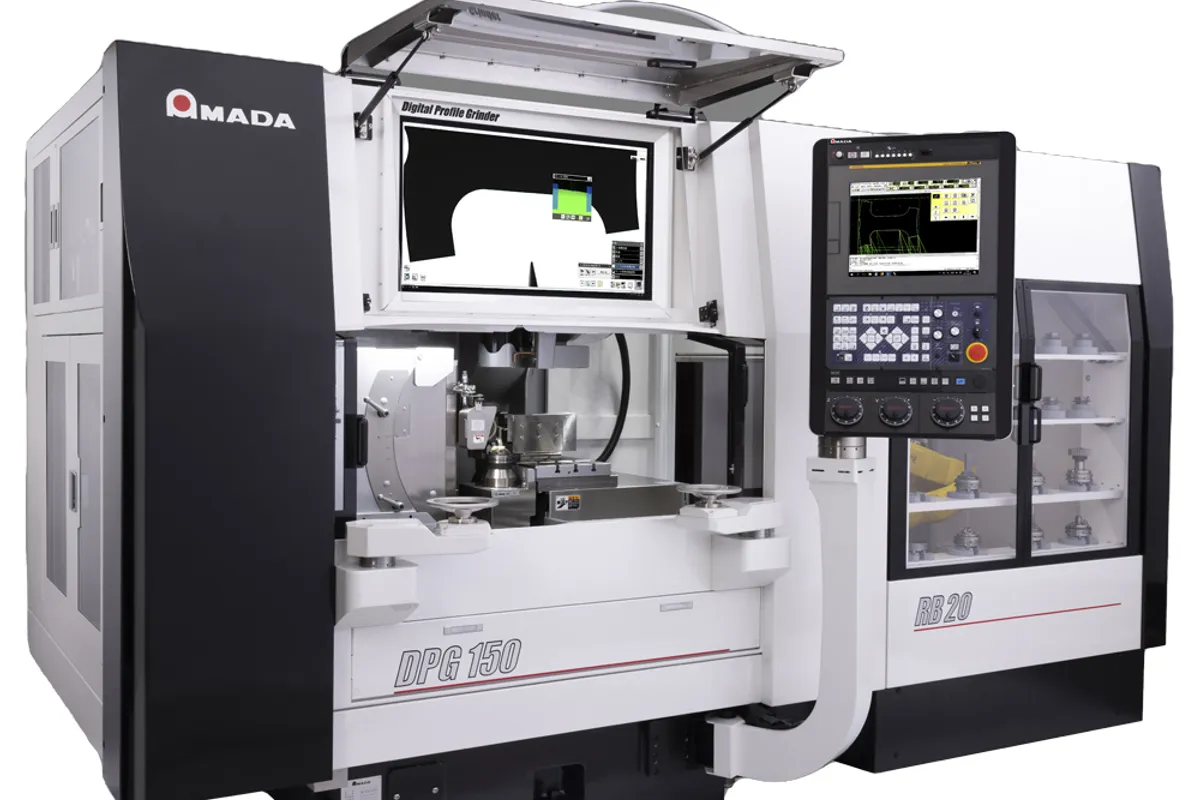

Amada DPG150

$250,000 - $400,000 Updated 2026-03-19

Key Specifications

working surface

400 x 250 mm (15.7 x 9.8 in)

height to focus point

60 - 185 mm (2.4 - 7.3 in)

z axis traverse

300 mm (11.8 in)

v axis cross feed

150 mm (5.9 in)

a axis vertical feed

125 mm (4.9 in)

x axis wheelhead traverse

200 mm (7.9 in)

Overview

The Amada DPG150 is a CNC digital profile grinder designed for high-precision grinding of complex tool and die profiles. Built by Amada Machinery America, the DPG150 uses optical profile grinding technology with CNC automation to produce intricate contours on punches, dies, and precision components.

The DPG150 features a working surface of 400 x 250 mm on its sub-table with a height-to-focus-point range of 60-185 mm. Five CNC axes provide comprehensive motion control: Z-axis traverse of 300 mm, V-axis cross feed of 150 mm, A-axis vertical of 125 mm, plus X-axis wheelhead traverse of 200 mm and Y-axis wheelhead cross of 150 mm. Rapid feed rates hit 2,000 mm/min on the table and 1,500 mm/min on the wheelhead, with grinding feed programmable from 0.1 to 1,000 mm/min.

The high-speed spindle accepts wheels from 65-100 mm diameter and rotates from 2,000 to 20,000 min-1. Radial relief angle ranges from -2 to 20 degrees, axial relief covers ±15 degrees. The DPG150 is available with an optional robot loader (machine weight increases to 5,500 kg from 4,500-5,000 kg). Power requirement is 18 kVA at less than 70 dB noise.

New DPG150 systems price between $250,000 and $400,000, with robot loader adding $80,000-$120,000.

Full Specifications

Parameter	Value
Working Surface	400 x 250 mm (15.7 x 9.8 in)
Height To Focus Point	60 - 185 mm (2.4 - 7.3 in)
Z Axis Traverse	300 mm (11.8 in)
V Axis Cross Feed	150 mm (5.9 in)
A Axis Vertical Feed	125 mm (4.9 in)
X Axis Wheelhead Traverse	200 mm (7.9 in)
Y Axis Wheelhead Cross Feed	150 mm (5.9 in)
Rapid Feed Table	2,000 mm/min (78.7 ipm)
Rapid Feed Wheelhead	1,500 mm/min (59.1 ipm)
Grinding Feed	0.1 ~ 1000 mm/min
Grinding Wheel Size	65 - 100 x 4 - 6 x 22.23 mm
Spindle Speed	2,000 - 20,000 min⁻¹
Radial Relief Angle	-2° to 20°
Axial Relief Angle	±15°
Machine Weight	4,500 - 5,000 kg (9,921 - 11,023 lb)
Machine Weight With Robot	5,500 kg (12,125 lb)
Power Requirement	18 kVA
Noise Level	Less than 70 dB
Model	DPG150 Full Cover
Digital Projector	Screen Size (W x H)
Magnification	Normal/High
Illumination	LED Lighting
Top	Digital Dimming V/W
Table	Working Surface(Sub Table)
Height Up To Focus Point	60 ~ 185 mm
Travel	Traverse Feed(Z-Axis)
Cross Feed	150 mm
Vertical Feed	125 mm
Feed Speed	Rapid Feed(G0)
Wheel Head	Linear Axis
Relief Angle	Amount
Axial Direction Of Wheel	±15° (manual *option_electric)
Swivel Slide Swiveling Angle	±15° (manual *option_NC)
Reciprocating Slide	Reciprocating Stroke Range
Reciprocating Speed	30 ~ 400 min-1 *by quantity of goingup and down lifting, there is a limit
Wheel Spindle	Wheel Size
Low Speed Type	1000 ~ 6000 (TS-6) min-1 *selection specificaion
Rotation Speed	High-Speed Type
Machine Gross Weight	Half Cover
4500 Kg	5000 kg
Power Size	18 kVA
Air Pressure Air Delivery	More than 0.6/300 Mpa/NI/min

Specifications sourced from amadamca.com — verified 2026-03-28

Strengths & Limitations

Strengths

Five CNC axes with high-speed spindle (2,000-20,000 RPM) enable complex profile grinding
Radial relief -2 to 20 deg and axial ±15 deg allow direct clearance angle grinding
Grinding feed 0.1-1,000 mm/min provides precise stock removal control
Optional robot loader enables lights-out production
Sub-70 dB noise level suitable for climate-controlled tool rooms
Purpose-built for punch and die tooling applications

Limitations

Entry price of $250K-$400K steep for occasional profile grinding needs
Limited working envelope (400 x 250 mm sub-table) restricts to smaller components
Specialized application limits utility outside tool and die work
Proprietary control requires dedicated operator training

Best For

Tool and die shops producing complex profile punches and dies Stamping die manufacturers grinding carbide and hardened steel tooling Medical device tooling with tight profile geometry requirements High-volume shops leveraging robot loader for lights-out production Mold shops grinding optical-quality profiles on precision inserts

Frequently Asked Questions

01 What is a digital profile grinder?

A CNC-automated optical profile grinder. The DPG150 digitizes the traditional process where operators follow templates on projection screens -- profiles are programmed via CNC with sub-micron accuracy.

02 What materials can it grind?

Hardened tool steels (HRC 60+), carbide, ceramics. The 20,000 RPM spindle handles both CBN and diamond abrasives.

03 What does the robot loader add?

Approximately $80,000-$120,000 for unattended production. Machine weight increases to 5,500 kg.

04 How does it compare to a jig grinder?

Jig grinders excel at precision hole grinding. The DPG150 is optimized for complex external contours on punch and die components with relief angle capability.
